Maswell 4G LTE 5G Antenna Outdoor, 600-7000MHz 2X2 MIMO External Antenna, Up to 4.5 dBi, Cross-Polarized Omnidirectional for 4G/5G Routers & Gateways for T-Mobile Home Internet, Verizon, AT&T

Antenna Installation Tips
Signal Check First
Test RSRP around your house before installing.
Avoid spots with RSRP -120dBm (no antenna can help).

How to Test
Android: Use Network Cell Info Lite or LTE Discovery.
iPhone: Dial *3001#12345#* Check rsrp value.

Install where RSRP is strongest (usually least obstructed side).
Example: If north side shows -85dBm and south shows -115dBm, choose north.
Antenna Limits
Can improve weak signals (-110dBm to -90dBm).
Cannot create signal if none exists ( -120dBm).

For Dead Zones
Share the RSRP, and get guidance from Maswell.

(Note: Outdoor antennas only capture existing signals, not generate new ones.)
The elements in this antenna are similar to those inside most cellular and WiFi Internet gateway/routers. Placing the antenna next to the gateway/router will not improve your signal. Placing this antenna away from the gateway/router in a location with better signal coverage will improve signal quality and data throughput speeds. Maximize the values of SINR and RSRQ, not RSSI, RSRP or "bars".
This is an entry-level gain MIMO antenna designed for outdoor areas with strong signals. It has a full frequency band of 700-6000MHz, covering low-band GSM 3G 4G LTE 4G+ (LTE-A) 5G and high-band 5G. Let your router have more frequency bands to automatically switch. Improved signal stability.
If the signal of your router is also blocked by the house, this 4G/5G MIMO antenna will solve your problem.

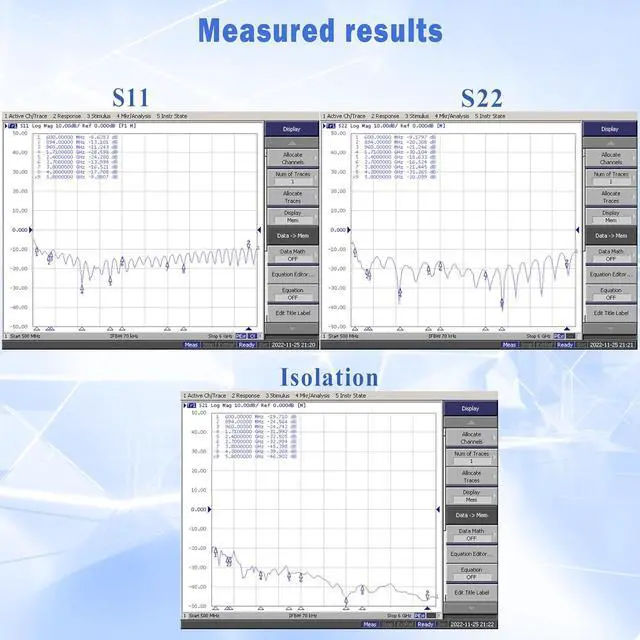

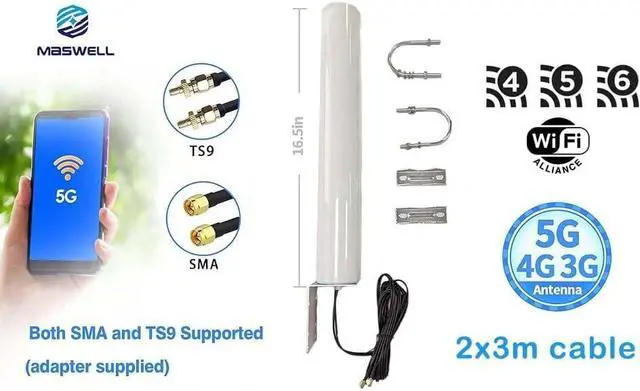

Frequency Range700-6000 MhzPolarizationCross PolarizationGainUp to 4.5 dBiV.S.W.R <2.0Impedance50 OhmCable2x 3meters coaxial cablesConnector Type2 Leads SMA-Male withTS9 and RP-SMA AdaptersOperating Temperature-40°C to +85°CRelative HumidityUp to 95%Vibration10 to 55Hz with 1.5mm amplitude for 2 hoursMaterialABS 700-6000MHz, compatible with Global Cellular 3G, 4G, 4G+, LTE-A, 5G, 5G NR
WiFi Bands: Supports most WiFi and IoT bands - WiFi 6, Wimax, Bluetooth, Zigbee, IoT, etc.
No matter what protocol you use, this antenna is suitable for your wireless application
All supported LTE bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106 etc.
All supported 5G frequency bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n 90 , n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105 etc.
