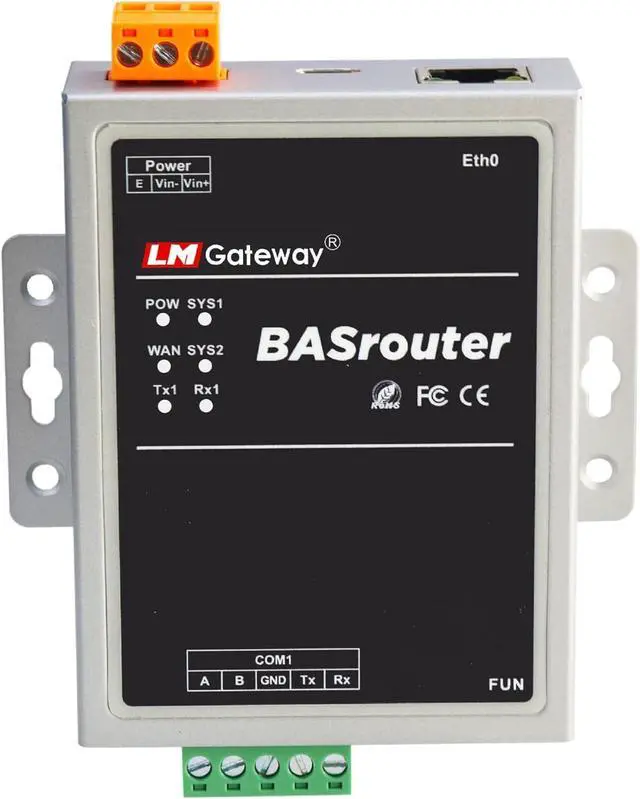

LM 101-B BACnet Router for Building Support, BACnet MS/TP to BACnet IP, 10/100 Ethernet with Auto-Negotiation and Auto-MDIX, Support for BBMD
- Quick Configuration: Easy setup for seamless integration between BACnet/IP and BACnet MS/TP networks.
- Seamless Ethernet Connection: A flexible 10/100 Mbps Ethernet , ensures efficient and reliable data transfer across your BACnet systems.
- Web-Based Configuration and Diagnostics: The router can be easily commissioned, reconfigured or troubleshooted using web browser(Google Chrome is recommended ). Webpage with graphical network map of all 128 MS/TP master devices and their status.
- BBMD Functionality: Support for BACnet Broadcast Management Device (BBMD) . As a BBMD, up to 128 BDT and 128 FDR entries can be supported.
- Compact Design: Small size for easy installation, DIN-Rail Mount or Panel Mount.
- Versatile Connection & Reliability: With RS232 and RS485 interfaces and an IP50 rating. The automatic DHCP feature allows for easy reconfiguration of IP addresses and ports.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports independent routing between BACnet/IP and BACnet MS/TP.
Suitable for Johnson/Honeywell/Delta/Schneider/Siemens, and other VAV controllers.
Supports uploading and downloading programs of DDC devices by BA system software.
Supports one MSTP bus with a baud rate of 9.6 to 115.2 kbps.
Configurated through a web page.
It can be easily snapped onto or removed from the rail by gently pressing the spring-loaded latch of the rail catch.
The EIA-485 network must be daisy-chained. The shorter the spur length,
the better it is.
The two-wire terminals can be connected to a power supply of DC 9V to 48V or AC 12V to 30V.
CPUARM926EJ,clocked at 300MHzRAM64MByte high-performance memoryNAND Flash128MByte SLC FlashSerial Port1 fully isolated RS485 interfaceNetwork Port1 100M/10M Ethernet interfacePowerDC 9V48V / AC 12V30VTotal Weight280gEnclosure RatingIP50Installation Size3.88(98.5 mm) × 3.78"(96 mm) × 1.06"(27 mm)(L × W × H)InstallationDIN rail card slot fixingPower ConsumptionThe biggest power consumption is 2WOperating Temperature-40185/2090 non-condensing FUNCTION FEATURES Rail Mounting MS/TP Cabling Power Start setting from your browser Hardware parameters
Suitable for Johnson/Honeywell/Delta/Schneider/Siemens, and other VAV controllers.
Supports uploading and downloading programs of DDC devices by BA system software.
Supports one MSTP bus with a baud rate of 9.6 to 115.2 kbps.
Configurated through a web page.
It can be easily snapped onto or removed from the rail by gently pressing the spring-loaded latch of the rail catch.
The EIA-485 network must be daisy-chained. The shorter the spur length,
the better it is.
The two-wire terminals can be connected to a power supply of DC 9V to 48V or AC 12V to 30V.
CPUARM926EJ,clocked at 300MHzRAM64MByte high-performance memoryNAND Flash128MByte SLC FlashSerial Port1 fully isolated RS485 interfaceNetwork Port1 100M/10M Ethernet interfacePowerDC 9V48V / AC 12V30VTotal Weight280gEnclosure RatingIP50Installation Size3.88(98.5 mm) × 3.78"(96 mm) × 1.06"(27 mm)(L × W × H)InstallationDIN rail card slot fixingPower ConsumptionThe biggest power consumption is 2WOperating Temperature-40185/2090 non-condensing FUNCTION FEATURES Rail Mounting MS/TP Cabling Power Start setting from your browser Hardware parameters
