AC1200 Long Range Outdoor WiFi Mesh Extender with Ethernet Port & 4-Antenna, MyMAX WN572HP3 Dual-Band 1200Mbps Weatherproof Outside Access Point/Wireless Repeater/Internet Booster Signal Amplifier

Strong Power for Multiple Applications
WN572HP3 (an Upgrade version of WN572HG3) is designed for outdoor "Access Point" or indoor "Wireless Repeater" network, making it an ideal solution for the big area, such as factory, community, street, or big house etc.
Pay Much Attention on Your Outdoor Use
To get a max and stable speed, you'd better select a most suitable mode Access Point (not "Repeater") for outdoor use, and using an Ethernet cat 6A cable (Max 60m) to connect your router and this AP via the PoE converter.
Warm Tips:
1.Do NOT connect your router before setting up the AP mode.
2.To clear data cookies then get a fast speed, pls reset the power cycle after one-week use.
3.Also, its default IP can't be changed by anybody.
4.While the PoE adapter is not waterproof nor weatherproof, so pls kindly locate it inside your room to get a good protection against from outdoor lighting, extreme cold, heat or continuous moisture.


1.Plug the AC adapter into a wall outlet.
2.Use the supplied 1-meter RJ45 Ethernet cable to connect your router and PoE converter.
3.Then use another CAT 6A ethernet cable up to 60 meters (buy from local shop) to connect the PoE converter and this AP unit.
The installation is now completed, start enjoying your WiFi signal outside today!
Support the latest 802.11AC Wi-Fi standard, which is incredible 6 timesfaster than Wireless-802.11N, and the max speed can reach 2.4GHz on 300Mbps + 5GHzon 867Mbps.
Moreover, it adopts the newest triple MTK 7621DA+7603E+7613B chips (An upgrade version of WN572HG3 dual MTK 7620A+7612E chips), which can ensure more stable performance.
Specification:
Button: 1 x Reset; Port: 1 x WAN/LAN Port; LED: 1 x WAN/LAN 1 x Power 3 x Signal.
Power Supply: DC24V / 0.5A Power over Ethernet ( Passive PoE).
Wireless Standards: IEEE 802.11ac/a/b/g/n.
Transmit Power: 2.4G Max 27dBm 5G Max 25dBm.
Wireless Security: WPA,WPA2,WPA-PSK,WPA2-PSK,AES,TKIP, MAC, and Latest 802.1X.
Speed : 802.11ac: up to 867Mbps, 802.11n: up to 300Mbps, 802.11a: up to 54Mbps, 802.11g: 54 Mbps, 802.11b: 11 Mbps.
Use both Wi-Fi bands for HD streaming and gaming, Up to 300Mbps (2.4GHz) + 867Mbps (5GHz).
Thanks to Spot Finder technology, you can check signal indicator to knowwhere the best coverage is, plus using your smartphone, laptop, ortablet.
Easy Installation with Power Over Ethernet (PoE). Simply press the PushButton Connect function on the range extender to automatically sync itwith your router.
Resolve the problem with a weak signal in an excellent manner, it helpsto boost the range of your existing WiFi and create a stronger signal inhard-to-reach area
Extend the network over long-distances (max 500m) with MyMAX 27dBmoutput power coupled withhigh gain 4x7dBi antennas that delivernetwork connectivity 360° to large yards and patios.
It supports outdoor PoEAccess Point, Gateway, wireless Wi-Fi Repeater, Mesh operation mode. However, For outdoor use, we strongly advise you'dbetter select an AP mode to get a max wireless coverage.

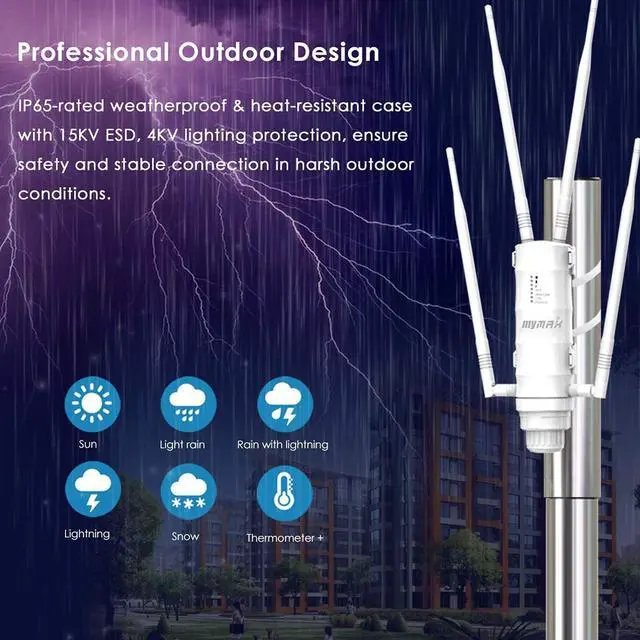

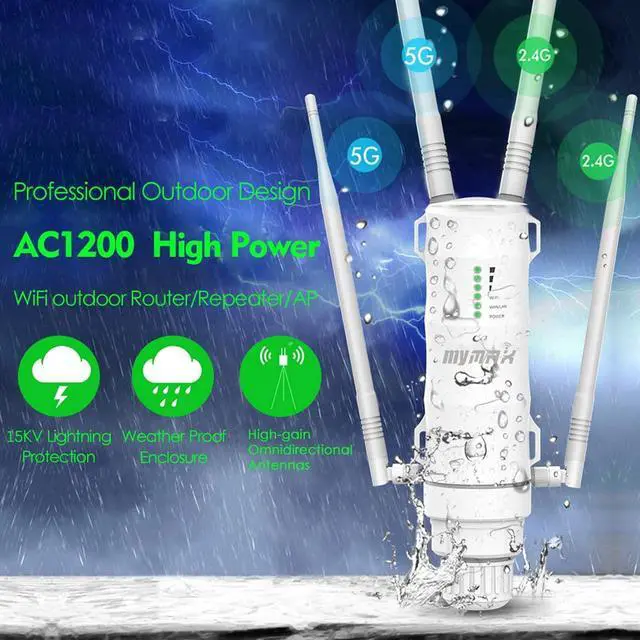

IP65-rated weatherproof housingwithstands broad ranges of humidity andtemperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightningprotection, ensure stable connection in harsh outdoor conditions.
Specially designed for outdoor use, ideal for long distance Wireless Data Transmission over 500m +, tested in the field upon the actual Wi-Fi situation.
Boost Your Wi-Fi Signal Outdoors The Next Generation of Wi-Fi, Leading 802.11ac Standard Latest 802.11AC 2.4Ghz and 5Ghz High Transmission Power 6 Times Faster than Wireless 802.11N with the Triple Chips Dual-band AC1200 Faster Speeds Smart Signal Indicator PoE for Quick & Easy Setup Key Features: Eliminate WiFi Dead Zones Outside 360° of High Power Outdoor More WiFi Coverage Multi-Operation Modes for Different Network Environment Excellent Outdoor Weatherproof and Lighting Protection 500m + W
