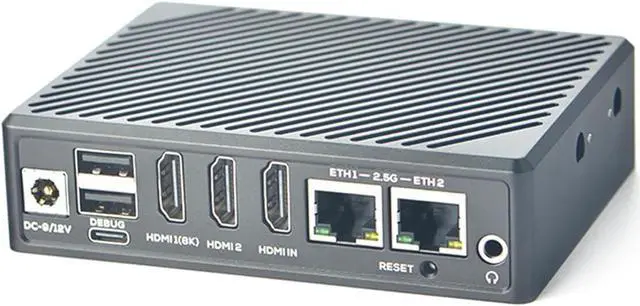

NanoPC-T6 Computer Mini WiFi Router, Open Source Smart IoT Gateway, LPDDR4X 16GB RAM 256GB eMMC, Rockchip RK3588 CPU 6Tops NPU, 2X 2.5Gbe Ethernet Port, Support M.2 NVMe SSD Module (16+256GB Bundle)
- [Open Sourced IoT Gateway] The NanoPC-T6 LTS is an open-sourced mini smart IoT gateway device with two 2.5G Ethernet ports. It is integrated with Rockchip RK3588 high performance CPU, 64-bit 4/8/16GB LPDDR4x RAM at 2133MHz, and 32/64/256GB eMMC flash, Mali-G610 MP4 GPU, 6TOPs NPU. NanoPC-T6 LTS computer wifi router also supports GPU and VPU acceleration.
- [8K Video Decoders and Encoders] NanoPC-T6 computer wifi router has two HDMI output interfaces and one HDMI IN interface, it can decode and play video streams up to 8K60p H.265/VP9, 8K30p H264 and other formats of video, and can record video streams 4k60p H.265 format video. Able to obtain high-frequency HD game graphics and enjoy the game with wireless gamepad.
- [Rich Hardware Resources] NanoPC-T6 LTS mini wifi router has 2x HDMI output ports and 1x HDMI IN port. T6 has one M.2 B-Key slot that supports an M.2 NVME SSD disk, one M.2 E-Key that supports M.2 2230 WiFi module. It has one USB 3.0 and two USB 2.0 ports, and one full-featu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-

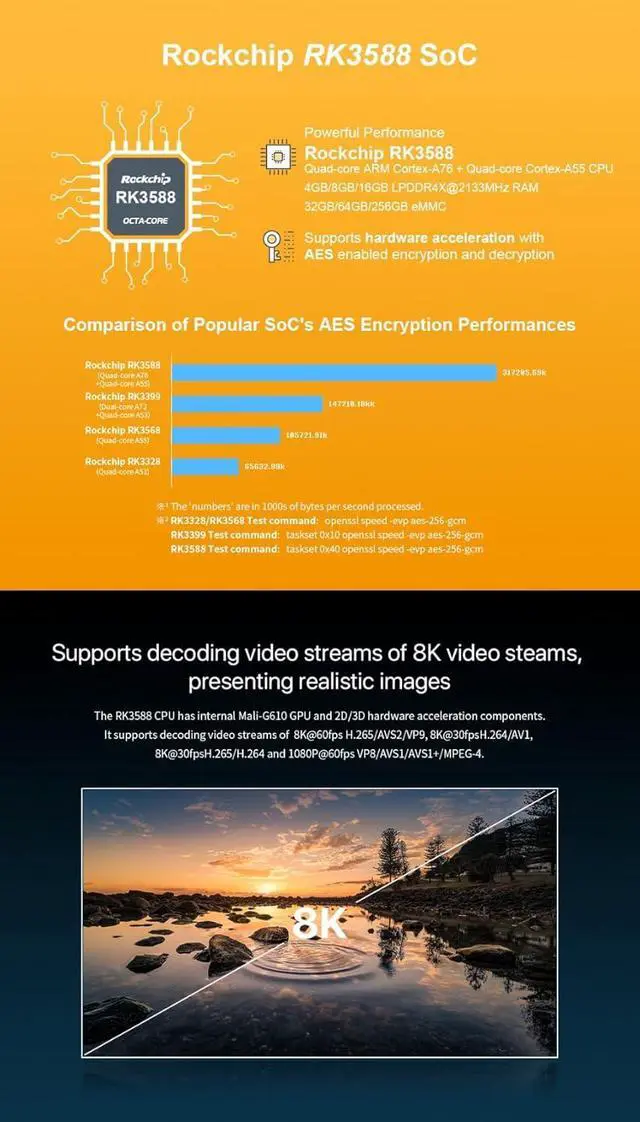

SoC: Rockchip RK3588
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4/8/16GB LPDDR4X at 2133MHz
Flash: 32/64/256GB eMMC, at HS400 mode1 x MicroSD Slot: support up to SDR104 mode
PCle 3.0: 1 x M.2 M-Key, PCle 3.0 x4 for NVMe SSDs up to 2,500 MB/s
Onboard M3 PCB nut for mounting M.2 2280 module
Connectivity
Ethernet:

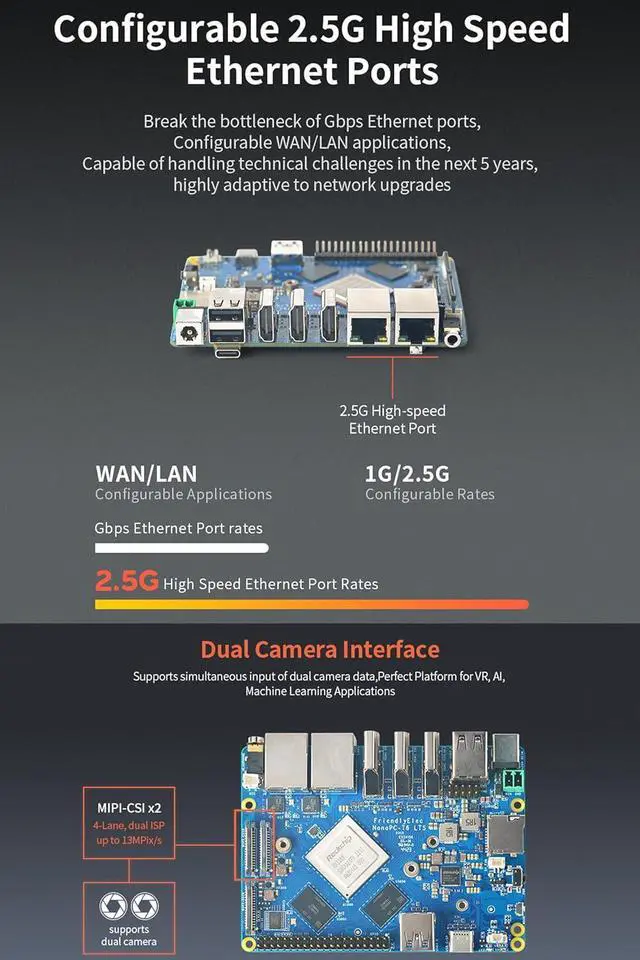

2 x PCle 2.5G Ethernet, RTL8125BG chip
PCle 2.1: 1 x M.2 E-Key, PCle 2.1 x 1 and USB2.0 Host, supports M.2 WiFi and Bluetooth Module
Onboard M3 PCB nutfor mounting M.2 2230 module.
Video Input
1 x Standard HDMI input port, up to 4Kp60
2 x 4-lane MIPI-CSI, compatible with MIPI V1.2

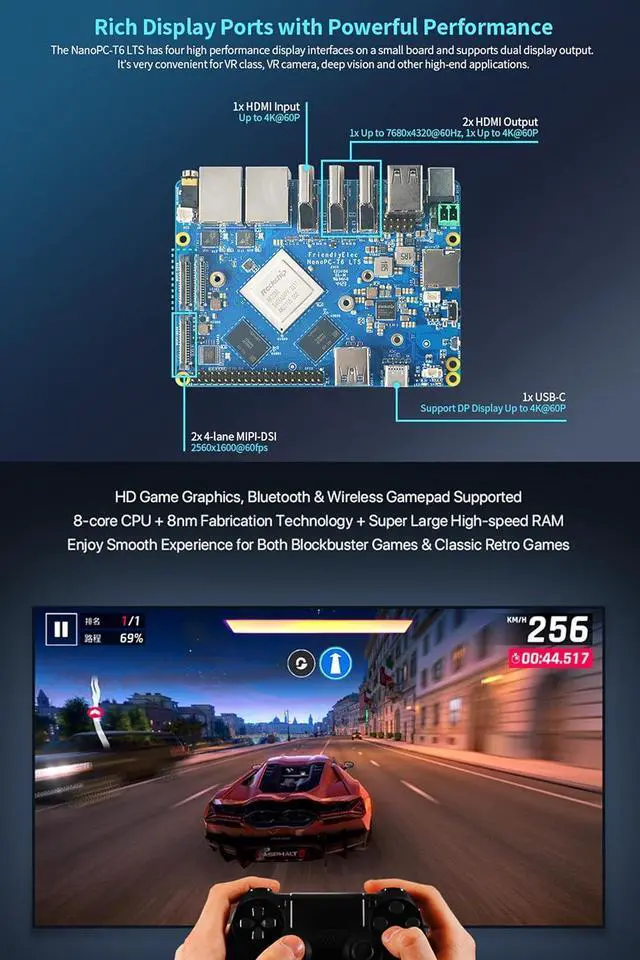

Video Output
2 x Standard HDMI output ports:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
Support RGB/YUV(up to 10bit) format
2 x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
USB
2 x USB 2.0,Type-A

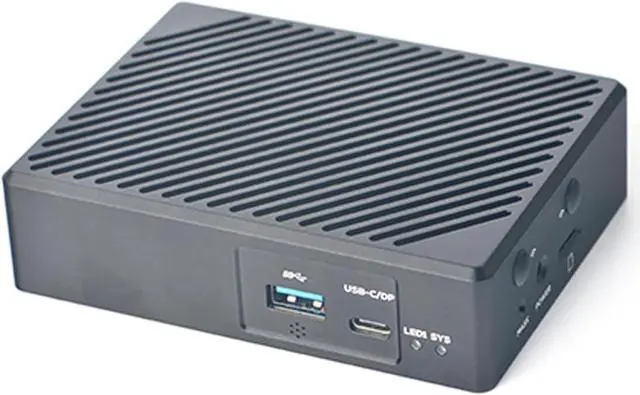

1 x USB 3.0,Type A
1 x USB-C: Full function USB Type-C port, support DP display up to 4Kp60, USB 3.0
Pin-header
GPIO: 40-pin 2.54mm header connector, up to 2 x SPIs,6x UARTs,1 x 12Cs,8x PWMs,2 x 12Ss,28 x GPIOs
GPI02: 10-pin 2.54mm header connector including Debug UART(3.3VTTL) and 2 x USB 2.0 Host
-OS Support-
FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
OpenMediaVault
Kernel VersionLinux-5.10-LTS, U-boot-2017.09

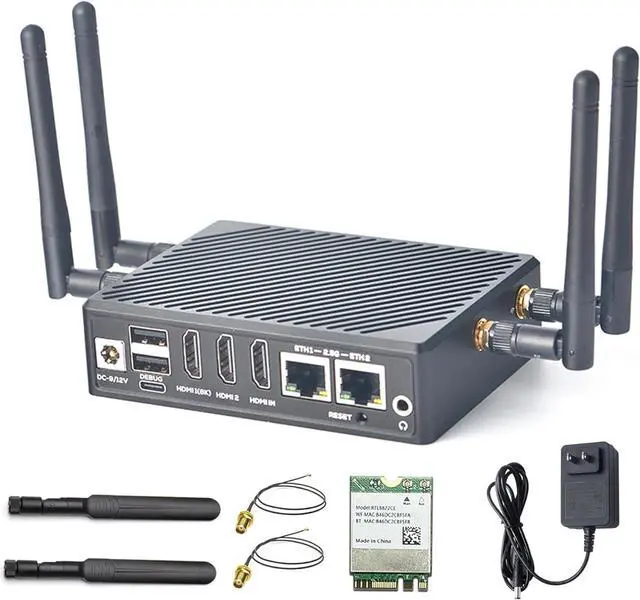

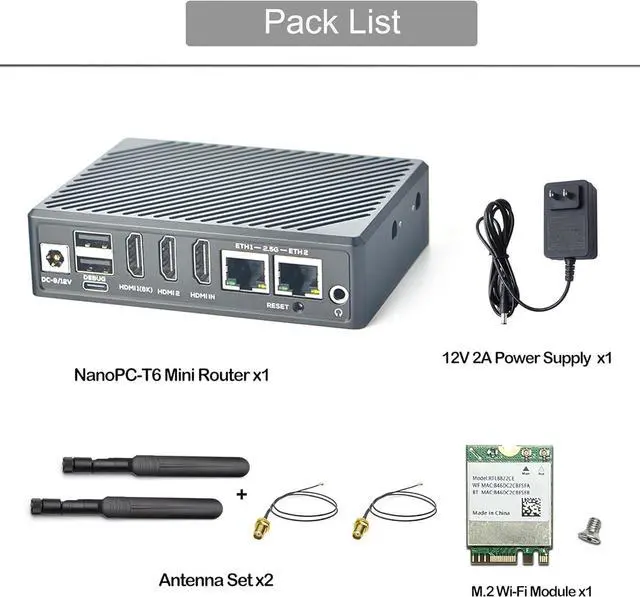

-Package Content-
NanoPC-T6 Mini Wifi Router x1with CNC Metal Case
12V 2A Power Supply x1
M.2 NVME SSD wifi module x1
Antenna Set x1
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire.cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
SoC: Rockchip RK3588
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2.
VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4/8/16GB LPDDR4X at 2133MHz
Flash: 32/64/256GB eMMC, at HS400 mode1 x MicroSD Slot: support up to SDR104 mode
PCle 3.0: 1 x M.2 M-Key, PCle 3.0 x4 for NVMe SSDs up to 2,500 MB/s
Onboard M3 PCB nut for mounting M.2 2280 module
Connectivity
Ethernet:
2 x PCle 2.5G Ethernet, RTL8125BG chip
PCle 2.1: 1 x M.2 E-Key, PCle 2.1 x 1 and USB2.0 Host, supports M.2 WiFi and Bluetooth Module
Onboard M3 PCB nutfor mounting M.2 2230 module.
Video Input
1 x Standard HDMI input port, up to 4Kp60
2 x 4-lane MIPI-CSI, compatible with MIPI V1.2
Video Output
2 x Standard HDMI output ports:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
Support RGB/YUV(up to 10bit) format
2 x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
USB
2 x USB 2.0,Type-A
1 x USB 3.0,Type A
1 x USB-C: Full function USB Type-C port, support DP display up to 4Kp60, USB 3.0
Pin-header
GPIO: 40-pin 2.54mm header connector, up to 2 x SPIs,6x UARTs,1 x 12Cs,8x PWMs,2 x 12Ss,28 x GPIOs
GPI02: 10-pin 2.54mm header connector including Debug UART(3.3VTTL) and 2 x USB 2.0 Host
-OS Support-
FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
OpenMediaVault
Kernel VersionLinux-5.10-LTS, U-boot-2017.09
-Package Content-
NanoPC-T6 Mini Wifi Router x1with CNC Metal Case
12V 2A Power Supply x1
M.2 NVME SSD wifi module x1
Antenna Set x1
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire.cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
