Nanopi R6C Wireless Mini WiFi Router OpenWRT, Smart Office Home Gateway, LPDDR4X RK3588S CPU 6Tops NPU Mali-G610 GPU, with PCle Gbps Ethernet for NAS IoT Device, Support Ubuntu Debian (4+32GB)

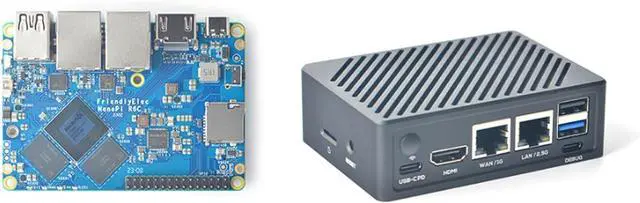

- [Portable WIFI Router Gateway] The NanoPi R6C is an open-sourced mini IoT gateway device with one 2.5G and one Gbps Ethernet ports. CPU: Rockchip RK3588S Chip with 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz. GPU: Mali-G610 MP4; NPU: 6TOPs. RAM: 64-bit 4GB LPDDR4X at 2133MHz.Storage: 32GB eMMC,at HS400 mode. PCIe: M.2 M-Key, PCIe2.1 x1, support NVME SSD, PCIe WiFi etc.
- [Embedded Custom Development] Nanopi R6C mini wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay.
- [Open Source and Programmable] NanoPi R6C wireless wifi router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It offers endless possibilities for geeks, fans and developers.
- [Rich H
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

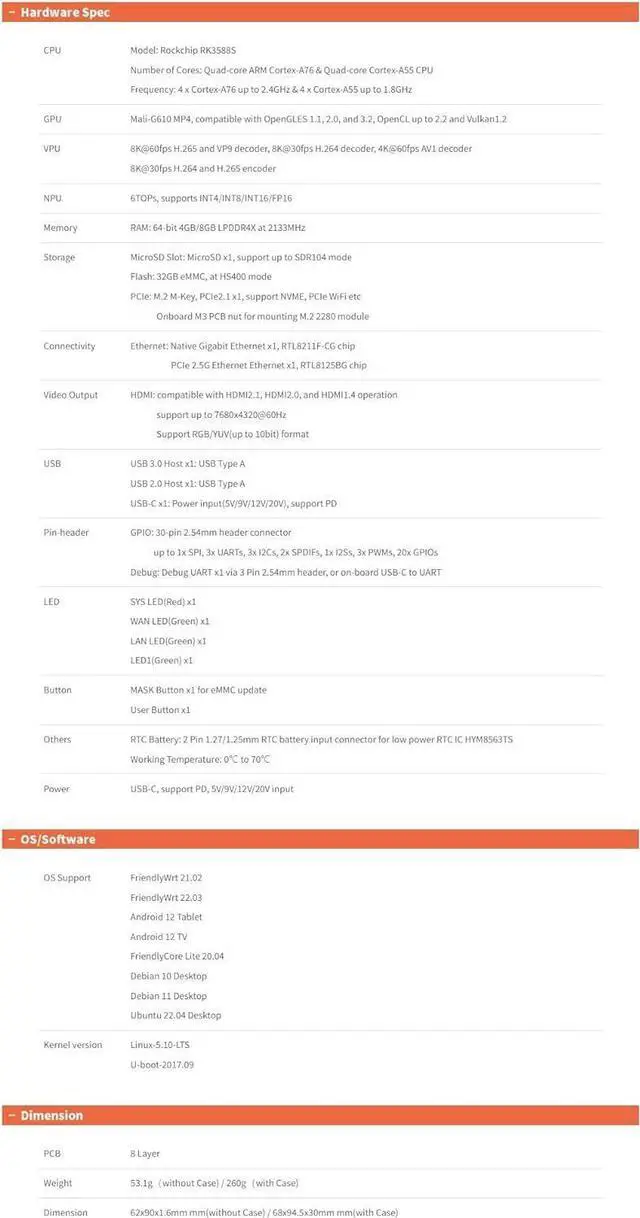

-Specification-

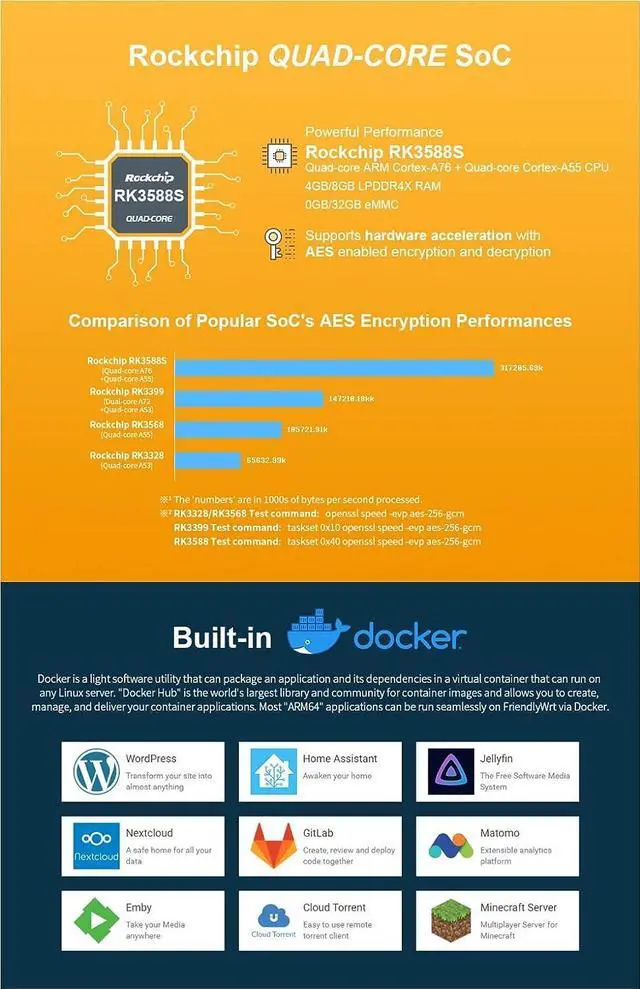

SoC: Rockchip RK3588S
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4GB LPDDR4X at 2133MHz
Flash: 32GB eMMC, at HS400 mode
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder

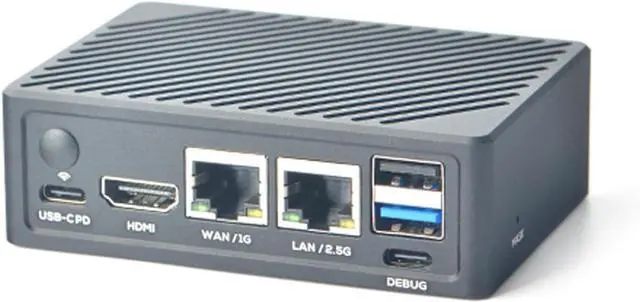

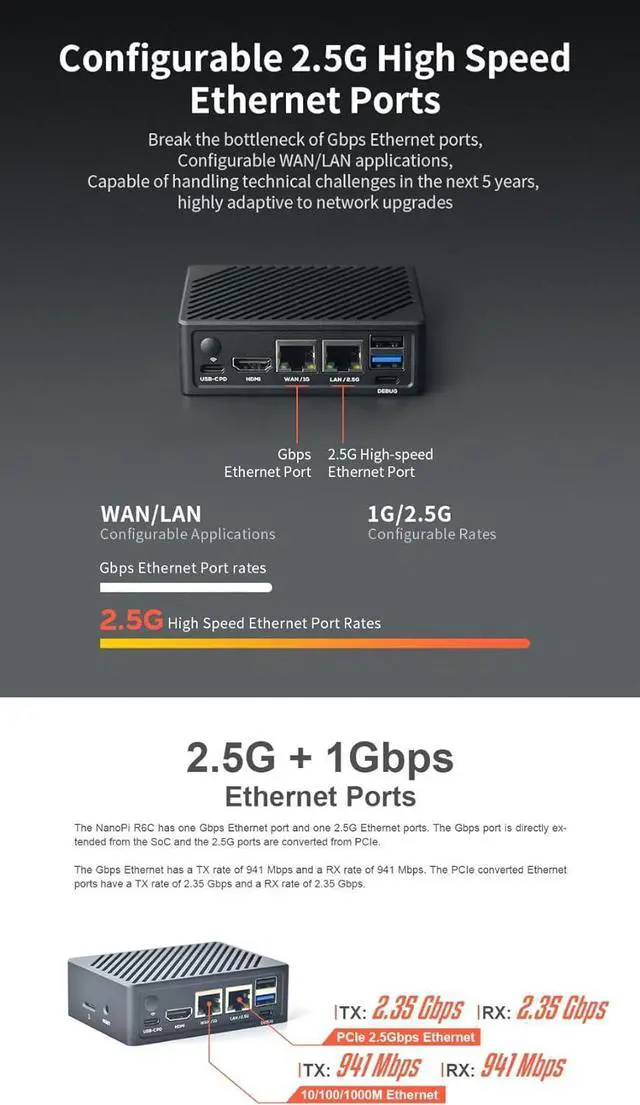

Ethernet: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet
USB: one USB 3.0 Type-A and one USB 2.0 Type-A
PCIe: one M.2 Key M connector with PCIe 2.1 x1
HDMI:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
microSD: support up to SDR104 mode
GPIO:
30-pin 2.54mm header connector
up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header, or on-board USB-C to UART

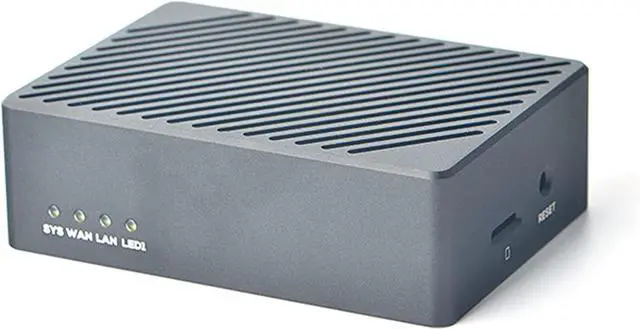

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)
Others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
one user button
Power supply: USB-C, support PD, 5V/9V/12V/20V input
PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0 to 70

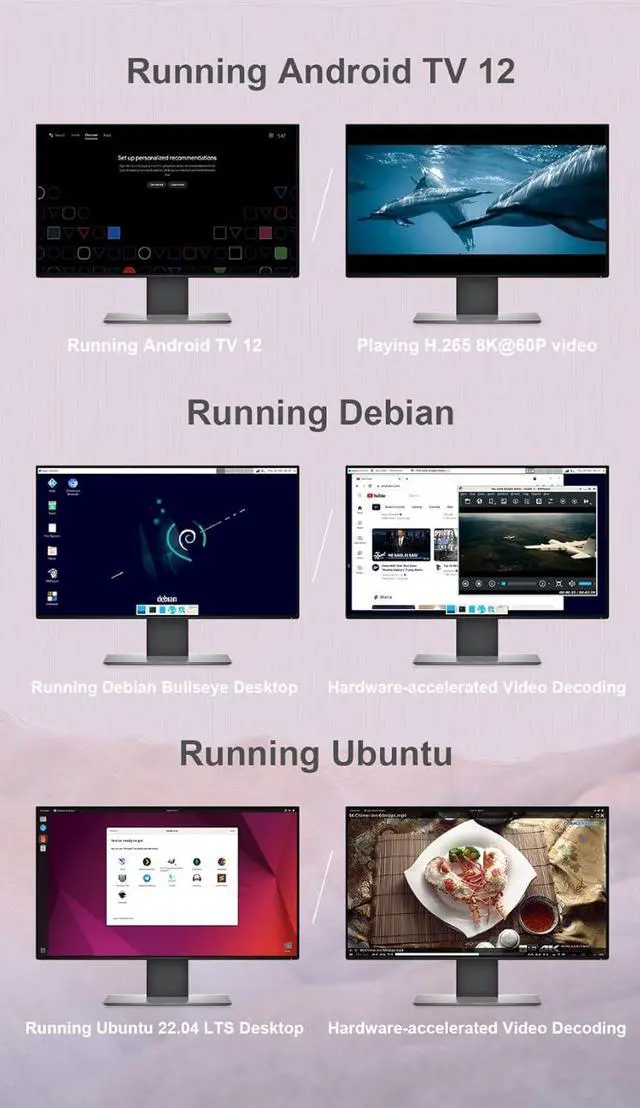

-OS Support-
FriendlyWrt 21.02, FriendlyWrt 22.03
FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
Kernel VersionLinux-5.10-LTS, U-boot-2017.09
-Package Content-
NanoPi R6C LPDDR4X Mini Wifi Router x1 (4GB RAM+32GB eMMC
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire.cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
SoC: Rockchip RK3588S
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4GB LPDDR4X at 2133MHz
Flash: 32GB eMMC, at HS400 mode
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
Ethernet: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet
USB: one USB 3.0 Type-A and one USB 2.0 Type-A
PCIe: one M.2 Key M connector with PCIe 2.1 x1
HDMI:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
microSD: support up to SDR104 mode
GPIO:
30-pin 2.54mm header connector
up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header, or on-board USB-C to UART
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)
Others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
one user button
Power supply: USB-C, support PD, 5V/9V/12V/20V input
PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0 to 70
-OS Support-
FriendlyWrt 21.02, FriendlyWrt 22.03
FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
Kernel VersionLinux-5.10-LTS, U-boot-2017.09
-Package Content-
NanoPi R6C LPDDR4X Mini Wifi Router x1 (4GB RAM+32GB eMMC
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire.cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
