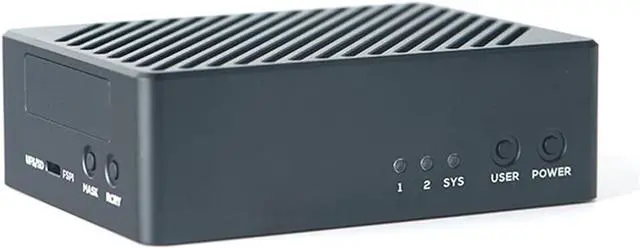

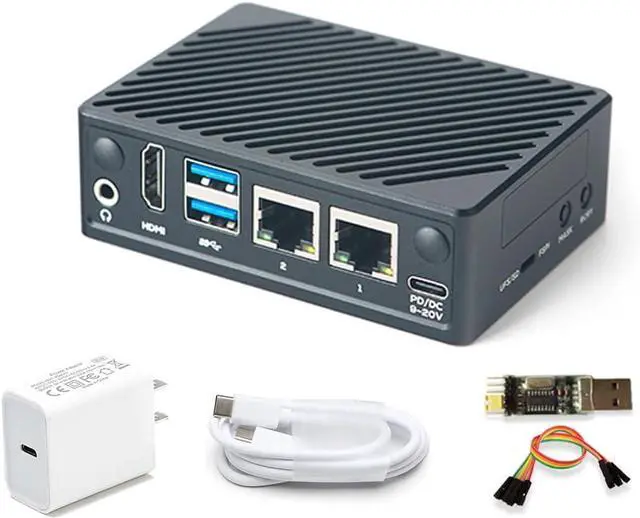

FriendlyElec Nanopi M5 Portable Mini Router OpenWRT - LPDDR5 8GB/16GB RAM 6TOPS NPU, RK3576 SoC with Al Model, Dual Gbps Ethernet for IoT NAS Smart Gateway (with WiFi Module, 8GB, Power Kit)
- [Wireless Mobile Mini Travel Router] The NanoPi M5 mini router is an open-sourced mini smart gateway device, designed and developed by FriendlyElec. It is based on Rockchip RK3576 SoC, with 32-bits LPDDR4X/LPDDR5 RAM and UFS 2.0 storage(optional). The RK3576 is an 8-core 64-bit processor featuring a powerful architecture with 4x ARM Cortex-A72 cores and 4x ARM Cortex-A53 cores. It is equipped with an ARM Mali G52 MC3 GPU and 6 TOPS NPU.
- [Greater Storage and Scalability]] NanoPi M5 Portable Wireless Mini Router onboard 4GB LPDDR4X/ 8GB 16GB LPDDR5 RAM. On-Board 16MB SPI Nor flash Supports microSD up to UHS-I Supports UFS 2.0 flash module. Supports M.2 M-Key 2280 NVMe SSD (PCIe 2.1 x1). 2x one Gbps Ethernet ports with RTL8211F PHY chips Supports M.2 SDIO Wi-Fi/BT module. 2x USB 3.2 Gen 1 Type-A ports. 30-Pin 2.54mm GPIO header. 2x 4-Lane MIPI CSI-2 D-PHY v1.2 interfaces.

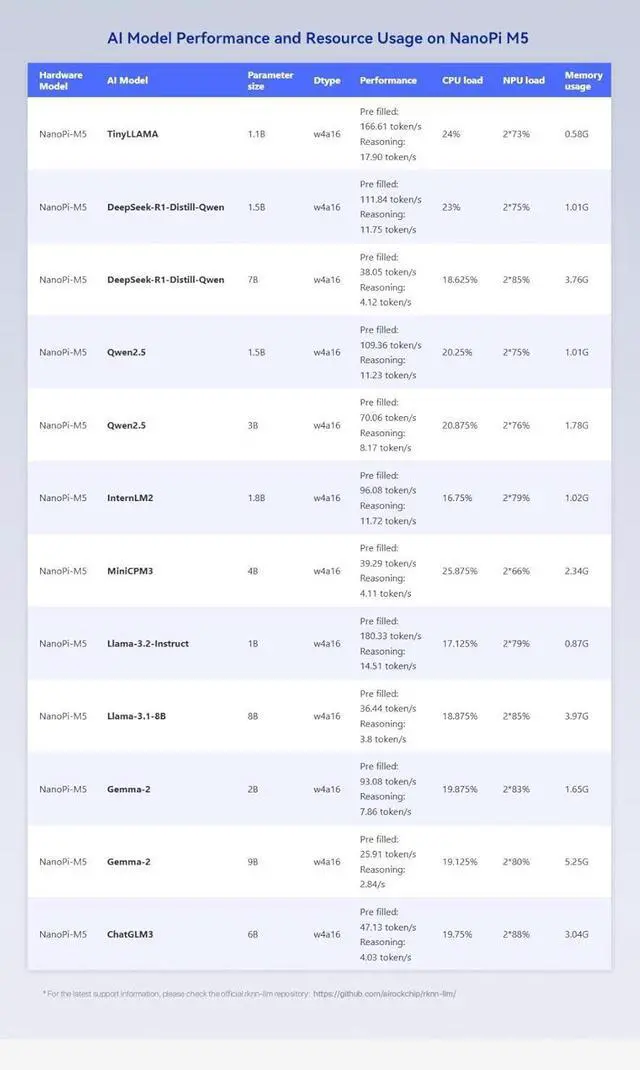

- [Al Model Performance] Nanopi M5 Mini Router support Al Model Performance and Resource Usage on. Supporting Local D
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
SoC Model: Rockchip RK3576
CPU: Cores: 4x Cortex-A72 and 4x Cortex-A53 Frequency: Cortex-A72 up to 2.2 GHz, Cortex-A53 up to 2.0 GHz
GPU: ARM Mali-G52 MC3, supports OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2, and OpenCL 2.0
VPU: 8K 30fps H.265/VP9 video decoder, 4K 60fps video encoder
NPU: 6 TOPS INT8 supports INT4, INT8, INT16, FP16, BF16, TF32 mixed operation
RAM: LPDDR4X(4GB) / LPDDR5(8GB/16GB)
Storage: On-Board 16MB SPI Nor flash Supports microSD up to UHS-I Supports UFS 2.0 flash module Supports M.2 M-Key 2280 NVMe SSD (PCIe 2.1 x1)
Connectivity: 2x 1Gbps Ethernet ports with RTL8211F PHY chips Supports M.2 SDIO Wi-Fi/BT module.
Audio: 3.5mm audio jack for stereo headphone output 2.0mm PH-2A connector for analog microphone input
Video Input: 2x 4-Lane MIPI CSI-2 D-PHY v1.2 interfaces
Video Output : Standard HDMI Type-A output port
Supports HDMI 1.4 and HDMI 2.0 operations
Supports up to 10 bits Deep Color modes
Supports up to 1080p 120Hz and 4096x2304 60Hz
Supports 3D video formats 4-Lane MIPI DSI-2, compatible with MIPI D-PHY v2.0 or C-PHY v1.1
USB: 2x USB 3.2 Gen 1 Type-A ports
Pin header: 30-Pin 2.54mm GPIO header
Supports up to 2x SPIs, 4x UARTs, 3x I2Cs, 1x SPDIF, 5x PWMs, 20x GPIOs 3-Pin Debug UART 2.54mm header
3.3V level, 1500000bps
LED: SYS LED(Red) LED1(Green) LED2(Green)
Button:
MASK Button for UFS update
User Button
Power Button
Recovery Button
Temperature: Ambient Operating Temperature: 0 to 70
Power Supply: USB-C 6V~20V power input, supports PD and DC
-OS Support-
Alpine Linux
Android 14 Tablet; Android 14 TV
Debian 12 CoreDebian 11 Desktop
FriendlyWrt 21.02; FriendlyWrt 23.05; FriendlyWrt 24.10
OpenMediaVault; Proxmox VE
Ubuntu 20.04 Desktop; Ubuntu 24.04 Core; Ubuntu 24.04 Desktop
Kernel version: Linux-6.1-LTS and U-boot-2017.09
Buildroot
*The firmware is continuously updated, refer to the actual version provided by the WiKi.
-Others-
PCB: 8-Layer ENIG
Weight: 58g(without Case) / 246g(with Case)
Dimension: 90x62x1.6 mm(without Case) / 94.5x68x30 mm(with Case)
-Package Content-
1x Nanopi M5 Mini Router (with CNC Metal Case)
-Technical Support-
Wiki: wiki.friendlyelec.com/wiki/index.php/NanoPi_M5
Please click "WayPonDEV" and ask a question.
Please leave the message in "wpd#youyeetoo&com (#-@,&-.)"
SoC Model: Rockchip RK3576
CPU: Cores: 4x Cortex-A72 and 4x Cortex-A53 Frequency: Cortex-A72 up to 2.2 GHz, Cortex-A53 up to 2.0 GHz
GPU: ARM Mali-G52 MC3, supports OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2, and OpenCL 2.0
VPU: 8K 30fps H.265/VP9 video decoder, 4K 60fps video encoder
NPU: 6 TOPS INT8 supports INT4, INT8, INT16, FP16, BF16, TF32 mixed operation
RAM: LPDDR4X(4GB) / LPDDR5(8GB/16GB)
Storage: On-Board 16MB SPI Nor flash Supports microSD up to UHS-I Supports UFS 2.0 flash module Supports M.2 M-Key 2280 NVMe SSD (PCIe 2.1 x1)
Connectivity: 2x 1Gbps Ethernet ports with RTL8211F PHY chips Supports M.2 SDIO Wi-Fi/BT module.
Audio: 3.5mm audio jack for stereo headphone output 2.0mm PH-2A connector for analog microphone input
Video Input: 2x 4-Lane MIPI CSI-2 D-PHY v1.2 interfaces
Video Output : Standard HDMI Type-A output port
Supports HDMI 1.4 and HDMI 2.0 operations
Supports up to 10 bits Deep Color modes
Supports up to 1080p 120Hz and 4096x2304 60Hz
Supports 3D video formats 4-Lane MIPI DSI-2, compatible with MIPI D-PHY v2.0 or C-PHY v1.1
USB: 2x USB 3.2 Gen 1 Type-A ports
Pin header: 30-Pin 2.54mm GPIO header
Supports up to 2x SPIs, 4x UARTs, 3x I2Cs, 1x SPDIF, 5x PWMs, 20x GPIOs 3-Pin Debug UART 2.54mm header
3.3V level, 1500000bps
LED: SYS LED(Red) LED1(Green) LED2(Green)
Button:
MASK Button for UFS update
User Button
Power Button
Recovery Button
Temperature: Ambient Operating Temperature: 0 to 70
Power Supply: USB-C 6V~20V power input, supports PD and DC
-OS Support-
Alpine Linux
Android 14 Tablet; Android 14 TV
Debian 12 CoreDebian 11 Desktop
FriendlyWrt 21.02; FriendlyWrt 23.05; FriendlyWrt 24.10
OpenMediaVault; Proxmox VE
Ubuntu 20.04 Desktop; Ubuntu 24.04 Core; Ubuntu 24.04 Desktop
Kernel version: Linux-6.1-LTS and U-boot-2017.09
Buildroot
*The firmware is continuously updated, refer to the actual version provided by the WiKi.
-Others-
PCB: 8-Layer ENIG
Weight: 58g(without Case) / 246g(with Case)
Dimension: 90x62x1.6 mm(without Case) / 94.5x68x30 mm(with Case)
-Package Content-
1x Nanopi M5 Mini Router (with CNC Metal Case)
-Technical Support-
Wiki: wiki.friendlyelec.com/wiki/index.php/NanoPi_M5
Please click "WayPonDEV" and ask a question.
Please leave the message in "wpd#youyeetoo&com (#-@,&-.)"
