MokerLink 8 Port Gigabit Industrial DIN-Rail Ethernet Switch, 16Gbps Switching Capacity, IP40 Rated Network Switch (-40 to 185°F), with UL Power Supply

Previous page
Next page Q: Does it include the power supply?
A: Yes,It is include one AC adapter.
Q: Can I use supplies of differing voltage as the redundant power ? For example, 12v and 24v without unwanted effects or damage?
A: Yes, you can use supplies of differing voltages. There will be no ill effects, the switch's internal regulators were designed to handle a wide range of voltage inputs.
Q: What temperature range can this device handle?
A: The operating temperature is -4085-40185°F
Q: Does it come with a small din rail?
A: The switch support 35mm din rail ,but the din rail is not included.
Q: Does this have any management capability?
A: No,This is a unmanaged industrial ethernet switch.
Q: Is this unit fanless?
A: Yes, the unit is fanless. No noise.

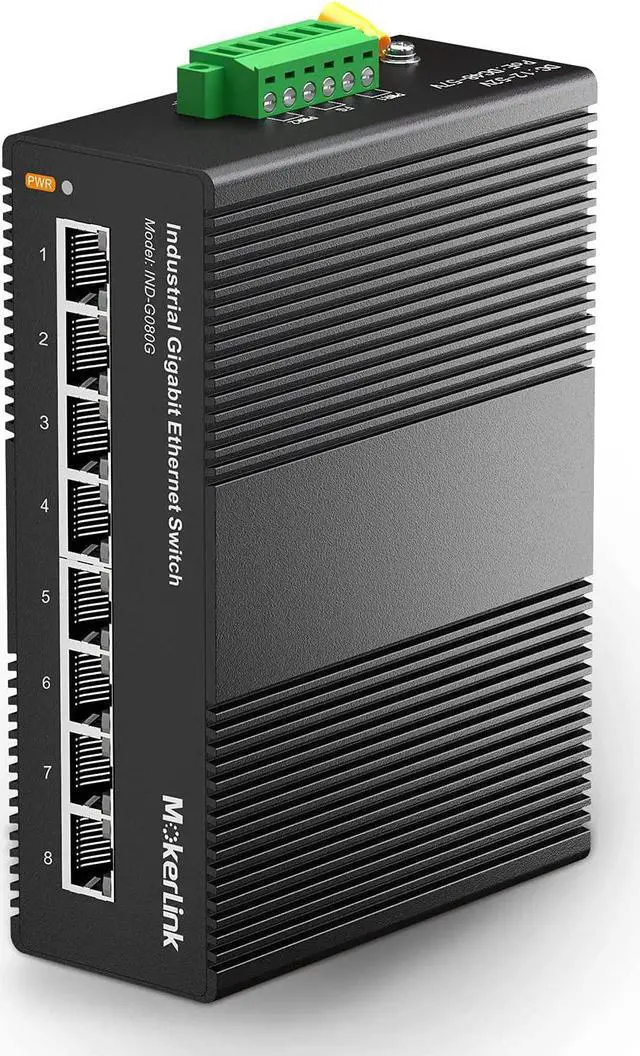

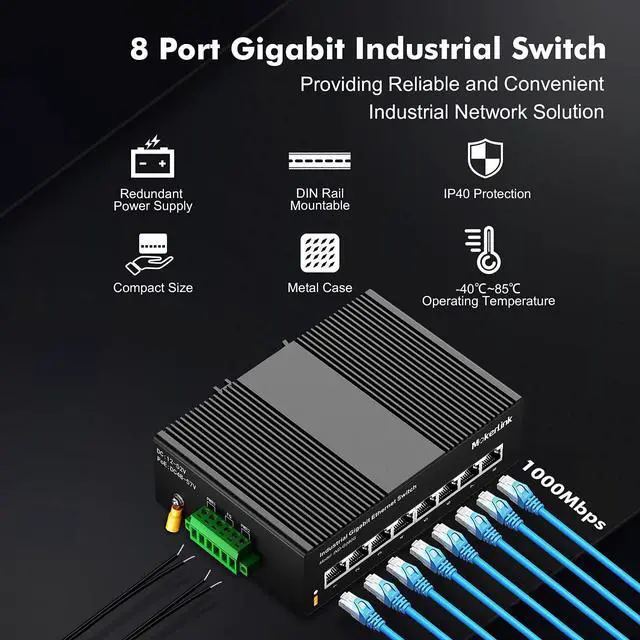

The industrial ethernet switch is available with8x10/100/1000Base T(X) RJ45 Port and 14Gbps exchange capacity,provide enough bandwidth to prevent network bottlenecks.
8-Port unmanaged industrial ethernet switch adopt with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network.
MokerLink industrial ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC.

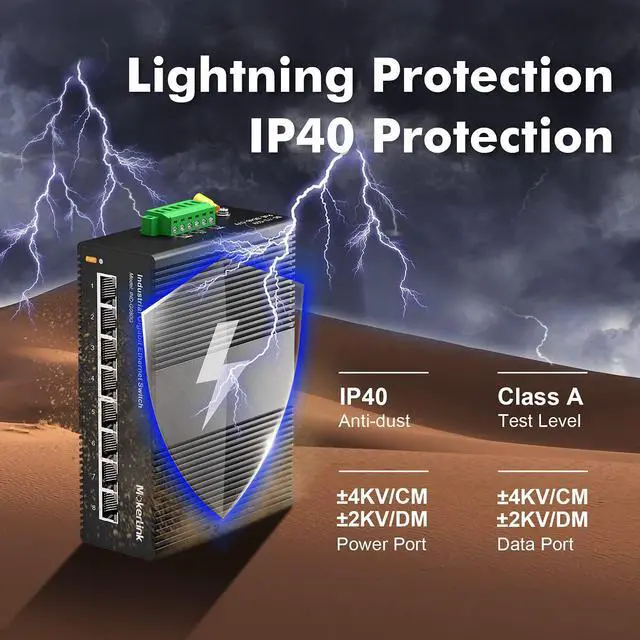

The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

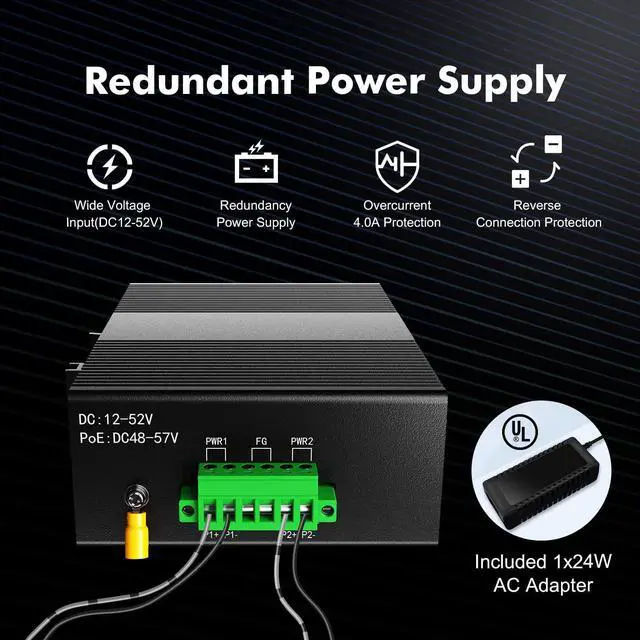

This industrial ethernet switch support dual redundant power supply(included 1x24W AC adapter).Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.

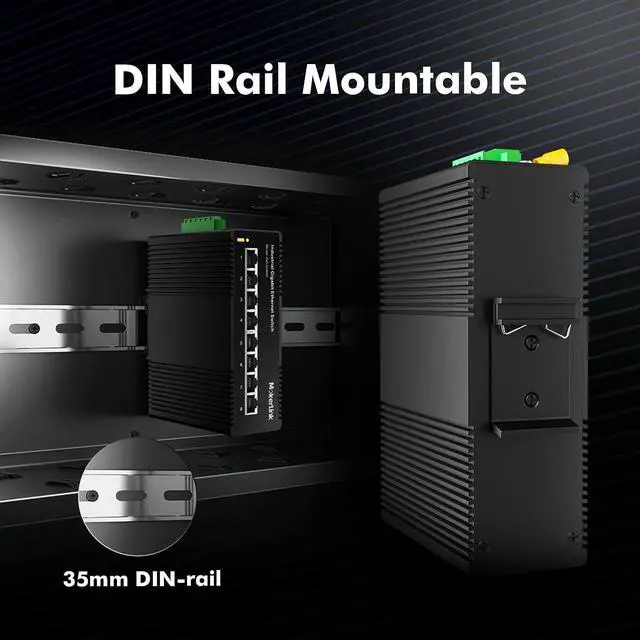

Ultra Compact industrial Ethernet switche can be mounted on a 35mm din rail.Save time and space.
MokerLink industrial ethernet switches are housed in a compact sturdy metal case.you can mount it on the desktop or cabinet.

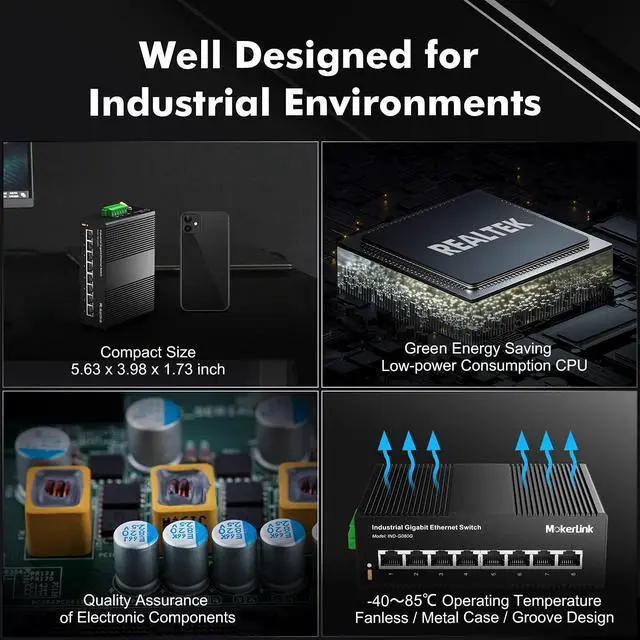

The industrial ethernet switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.
The industrial ethernet switch adopt with high quality of electronic components.Make sure it can be widely used in various industrial scenarios.


1 x 8-Port Industrial Ethernet Switch
1 x 24W AC Adapter
1 x 1 Meter Power Cable
1 x User Manual

MokerLink 8-port 10M/100M/1000M ethernet ports industrial-grade ethernet switch, supporting 8-port 10Base-T/100Base-T/1000Base-TX.The installation characteristics of the guide rail, wide temperature operation, IP40 protection grade shell and LED indicator, which all make it a plug-and-play industrial-grade equipment, providing reliable and convenient the solution forusers' networking of Ethernet equipment.
8x10/100/1000Base T(X) RJ45 Port,Support full-duplex or half-duplex mode, with auto-negotiation capability
Green energy saving, Use low-power consumption CPU
Operating temperature: -4085-40185°F
DC 12V-52V provides reverse connection protection and 4A overcurrent protection
The mean time between failureis more than 300,000 hours
Product Name8-port10M/100M/1000M industrial ethernet switchProduct ModelIND-G080GPort8x10/100/1000Base-T RJ45port (automatic detection Full/half duplex MDI/MDI-X adaptive)Network protocolIEEE802.3-CSMA/CD;IEEE802.3i-10Base-T;IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; - 1000Base-X;IEEE802.3ab - 1000Base-T;Operating temperature-4085-40185°F Input voltageDC12-52V (redundant backup of dual power supply )Access terminalPhoenix terminalShellIP40 protection grade, metal shellInstallationDIN clips rail typeRadiating methodNatural cooling, No-fanWeight0.64Kg(1.41 lb)Size143 x 101 x 44mm (L x W x H)IEC(EN)61000-4-5(Surge)Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVExchange capacity16GbpsProtection GradeIP40Between failure300,000 Hours Mo
