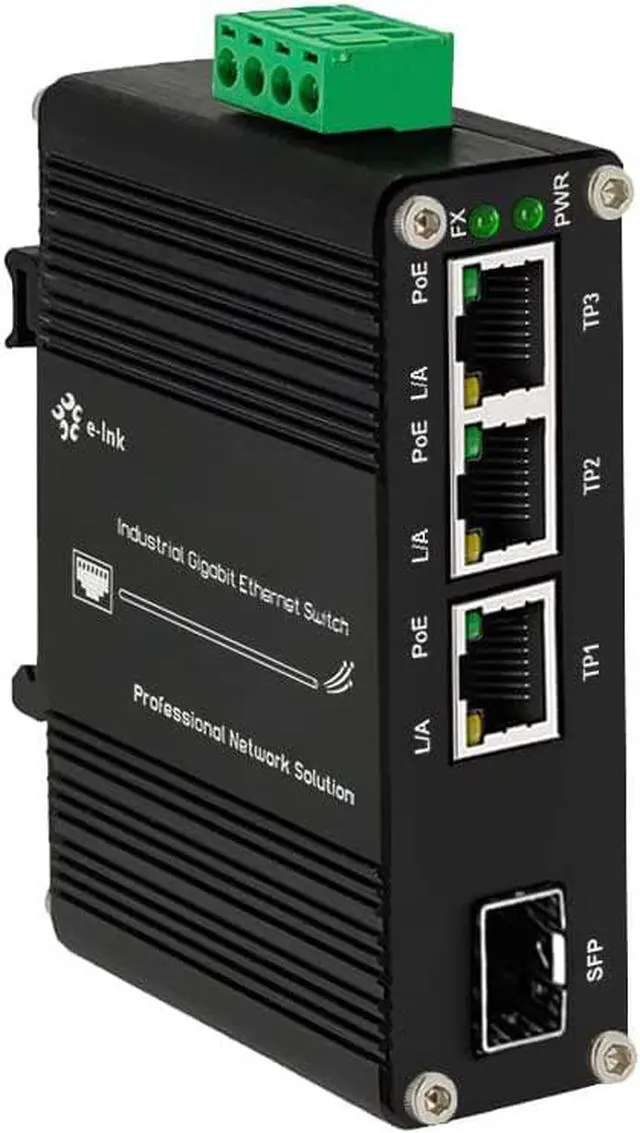

Mini Industrial 3 Port Gigabit PoE Switch with DC12V-48V to DC48V Voltage Booster Hardened RJ45 10/100/1000Mbps 802.3at 30W/Port Ethernet Switch Din Rail Mount Compatible with IP Camera VOIP Phone

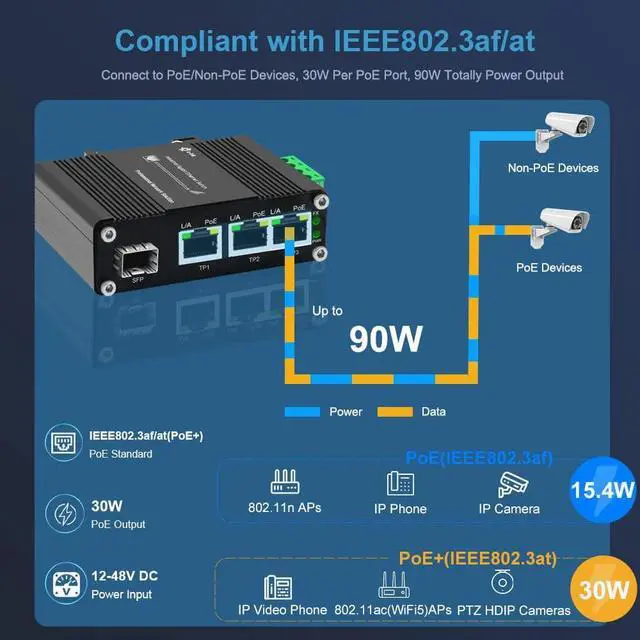

- PoE Switch with IEEE802.3af/at CompliantThis network switch include 3 10/100/1000Base-T IEEE80.3af/at 30W RJ45 with Auto MDI/MDI-X, and 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection). Designed with IEEE802.3af/at standard,PoE Ethernet Switch can transmit network data and power at the same time, Providing up to 30W per port and total PoE power budget of 90W. Meets power supply requirements of various applications.

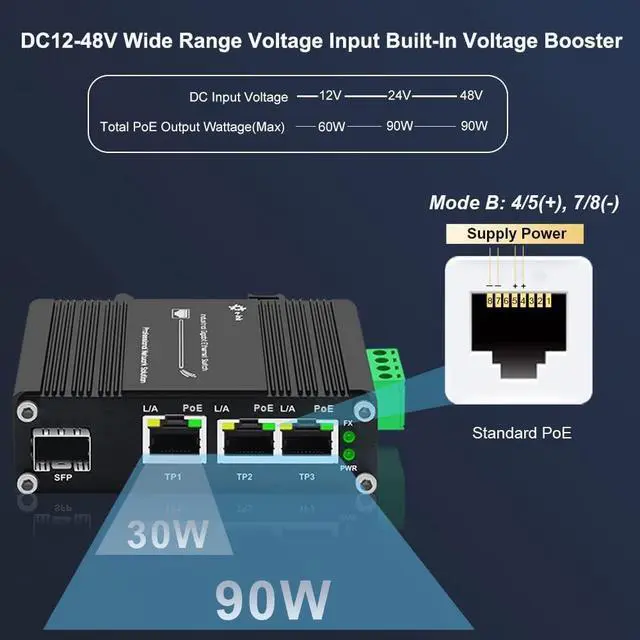

- Dual Redundant Power 12-48V DCThe Industrial Network Switch with DC 12-48V wide voltage inputs to provide Redundant Power inputs with function of overload current protection and anti-reverse connection protection. Support 2-way industrial grade power interface input, switchover when 1-way fails, high reliability ensures continuous operation.
- Unmanaged Plug & PlaySupport Power Detection function, automatically detect devices, can be compatible with non-POE devices to provide data connectivity. Plug and Play, just plug in the power cord, connect the
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

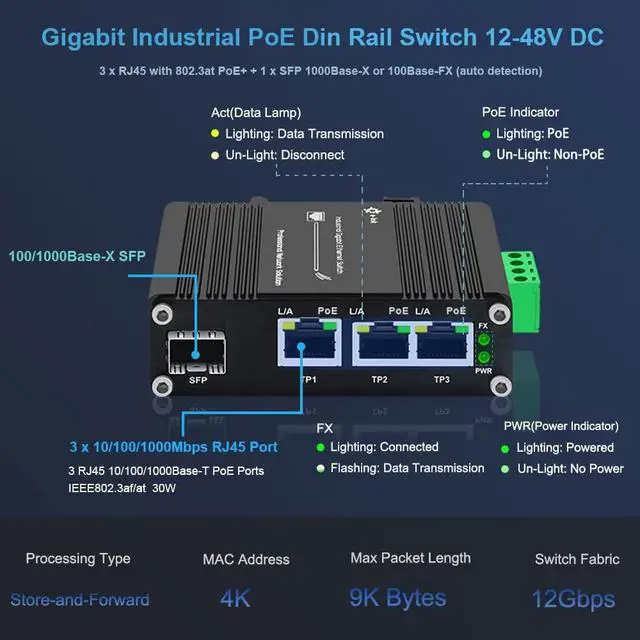

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-X, IEEE802.3ae 10GBase-R, IEEE802.3p QoS, IEEE802.1d Spanning TreeB, IEEE802.3af/at(PoE/PoE+)Forward & Filtering Rate:14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps)Packet Buffer Memory:4MbitsProcessing Type:Store-and-ForwardMax Packet Length:9K Bytes Jumbo FrameAddress Table Size:4K MAC AddressesInterface:3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3) + 1 x SFP 1000Base-X or 100Base-FX (auto detection) PoE Standard: IEEE802.3af/at 30WPower Pin Assignment:4/5(+), 7/8(-) PoE Budget:Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC) Input Power: 12~48VDC, 4-pin terminal block Power Consumption:<95WOperating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F) LNK-IMC103GP
