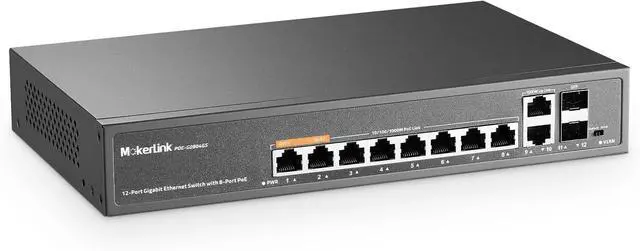

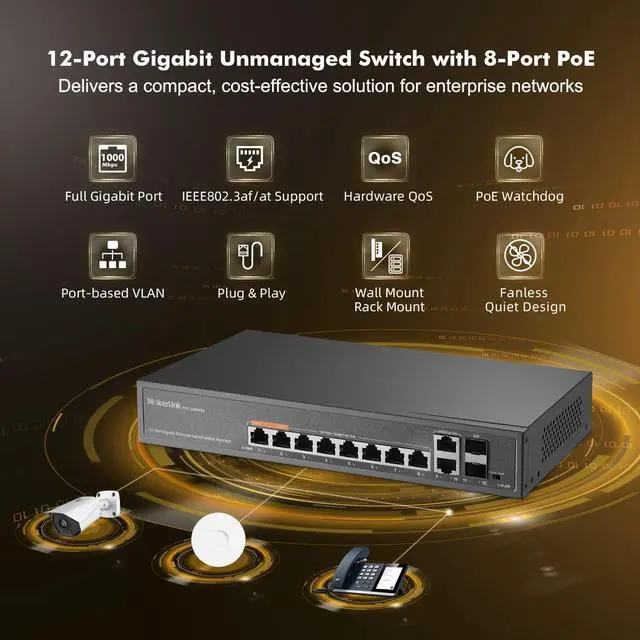

MokerLink 12 Port Gigabit PoE Switch with 8 PoE+ Port, 2 Gigabit Uplink, 2 SFP Port, 120W AI Detection, Qos & Extend, Fanless Metal Plug & Play Unmanaged Network Switch

POE-G0804GS is an unmanaged desktop PoE Switch. It provides 8×10/100/1000Mbps PoE ports ,2x1000M RJ45 Uplink Port, 2×1000M SFP slot. The product is equipped with two types of transmission modes (Default Mode/VLAN Mode).The maximum power consumption is 120W. Suitable for small-scale scenes.
This model is available with 12x Gigabit Ethernet ports. It offers the forwarding capacity to simultaneously process traffic on all ports.

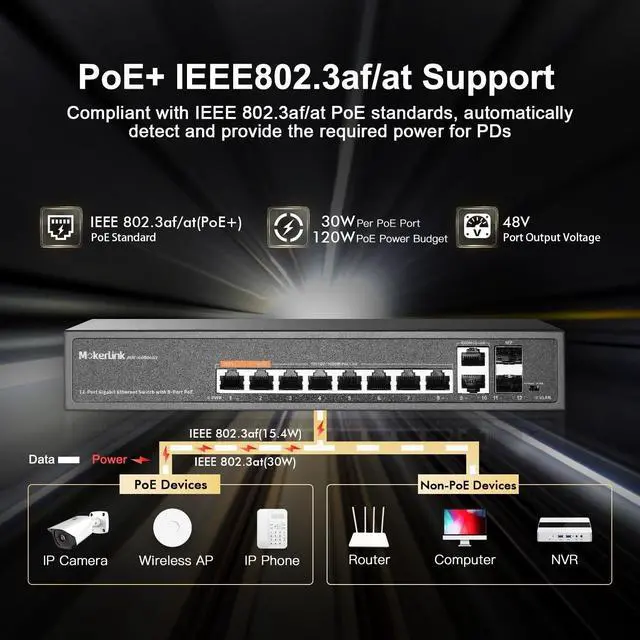

The PoE ports support IEEE802.3af and IEEE802.3at standards, with a maximum output power consumption of 30W per port. The total power consumption is 120W, Suitable for powering high-power devices.

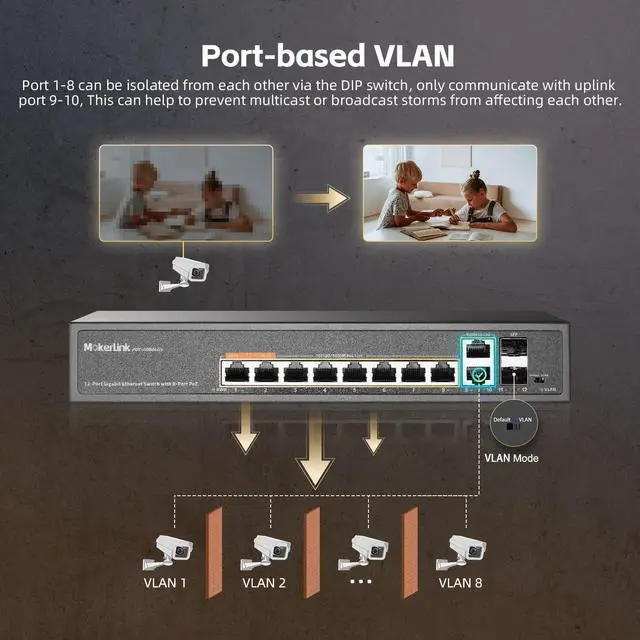

Port 1-8 can be isolated from each other via the DIP switch. This can help to prevent devices multicast or broadcast storms from affecting each other.

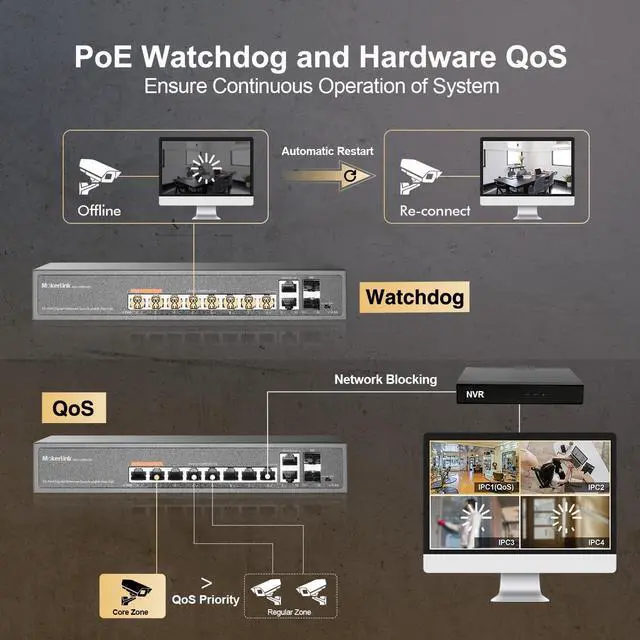

Port 1-2 supports QoS. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
Adopts the innovative PoE Watchdog. It enables the switch to automatically detect port status and restart the failed ports to recover connection.
The switch provides fiber connectivity options for easy expansion of your networks. It includes one Open SFP port for uplinks of up to 1 Gbps.

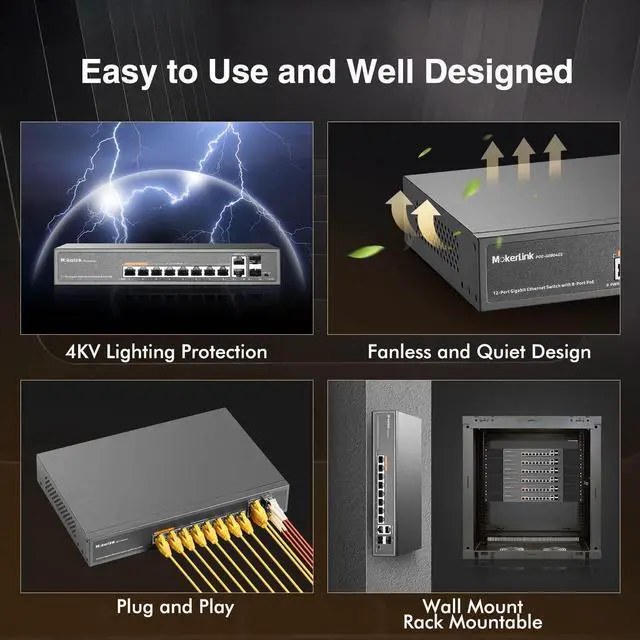

With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently.
Automatic connectivity to your PCs or PoE devices. No need for an IT expert.
Flexible deployment options for rack mount or wall-mount inyour office and home, meet the network environment requirement.
Supports working at ambient temperatures of -10 °C to +55 °C, adapted to harsh environments.

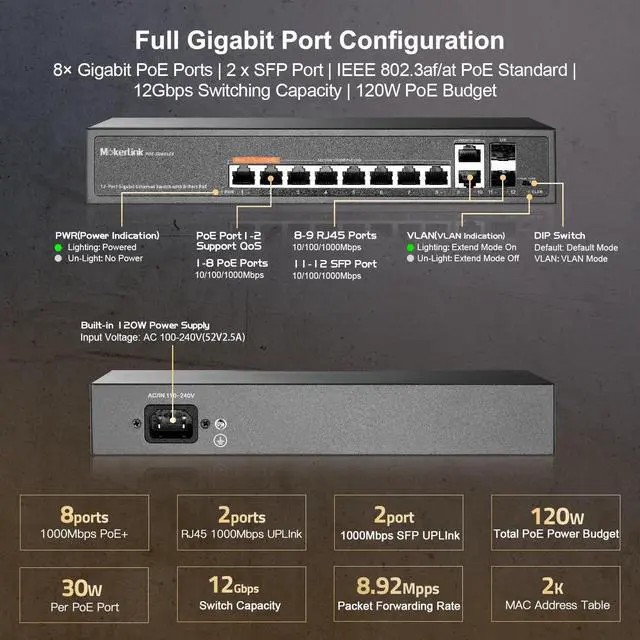

Ports8 x 10/100/1000M PoE Ports + 2x 10/100/1000M RJ45 Uplink Port + 2x 1000M SFP SlotSwitching Capacity / Backplane12GbpsForwarding Rates8.92MppsMAC Address Table2KPoE StandardIEEE 802.3at (PoE+), IEEE 802.3af (PoE), Up to 30W per PortPin AssignmentAlternative A (Pin 1,2/3,6)LED IndicatorsPWR: System Power Status(Green), 1-12 port Link/Act, on: Connected, Off: No connection. VLAN(VLAN Indictor): on: VLAN mode on. off: defult modePower Input100-240V AC, 50-60 Hz, Internal Power Supply, 52V/2.5A, Max. 120WMountingRack-mount / Wall-mount, Metal HousingStructure InformationProduct Dimensions :270*181*44mm, Packaging Dimensions : 350*240*90mm, Product Net Weight: 1.1KG, Product Gross Weight:1.45KGEnvironmentOperating Temperature: -10~55°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensingExtend FunctionPort-Based VLAN, Hardware QoS, PoE Watchdog This ItemMokerLink 12 Port Gigabit PoE Switch with 8 PoE+ Port, 2 Gigabit Uplink, 2 SFP Port, 120W AI Detection, Qos & Extend, Fanless Metal Plug & Play Unmanaged Network SwitchRecommendationsPOE Gigabit Switch 12 Ports 1000Mbps Switches with 2 uplink & 2 SFP: TEROW 8-Port PoE Ethernet&10-Port Network with 2 SFP Module,120W,802.3af/at Compliant, Plug & Play, Metal Fanless with Shielded MokerLink 11 Port Gigabit PoE Switch with 8 PoE+ Port, 2 Gigabit Uplink, 1 SFP Port, 120W AI Detection, Qos, Fanless Metal Plug & Play Unmanaged Network Switch YuanLey 8 Port Gigabit PoE Switch with 2 Gigabit Uplink, 8 PoE+ Port 1000Mbps, 1 SFP Port, 120W 802.3af/at, Metal, Qos, Unmanaged Plug and Play AI Smart Detection Ethernet Switch 8 Port Gigabit PoE Switch with 2 Gigabit Uplink,802.3af/at Compliant,120W Built-in Power,Unmanaged Metal Plug and Play MokerLink 48 Port PoE Gigabit Switch with 2 Gigabit SFP, 800W IEEE802.3af/at AI Detection, Metal Rackmount Unmanaged Plug and Play Ethernet Switch
