Binardat 10G PoE Switch - 4 x 2.5G RJ-45 Base-T PoE Ports, 2 x 10G RJ-45 Ports, Web Managed/Unmanaged, IEEE8023af/at 65W, Metal Fanless Desktop/Wallmount Network Switch

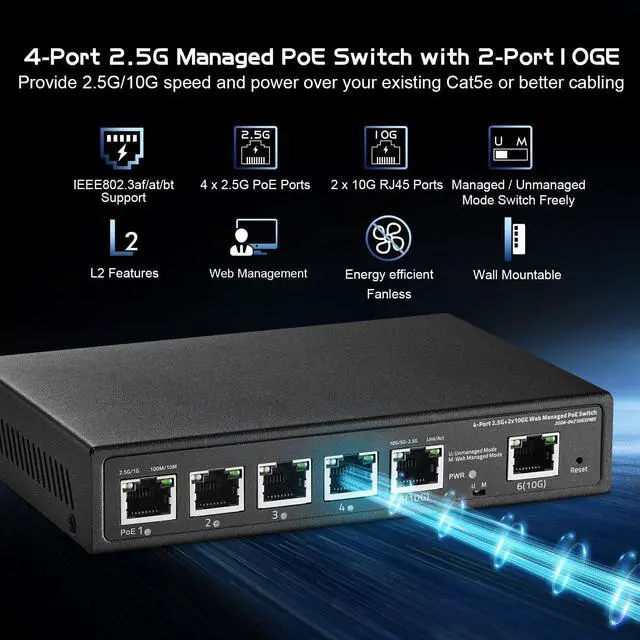

The 2G06-04210GSPMX is a desktop web managed PoE switch with 4x 2.5GbE PoE ports and 2x 10GbE RJ45 uplink ports, It can connecting 1GE/2.5GE/10GbE devices with different interfaces at an affordable price. Port 1 support IEEE802.3bt(max. 90W), Port 2-4 support IEEE802.3at (max. 30W) .

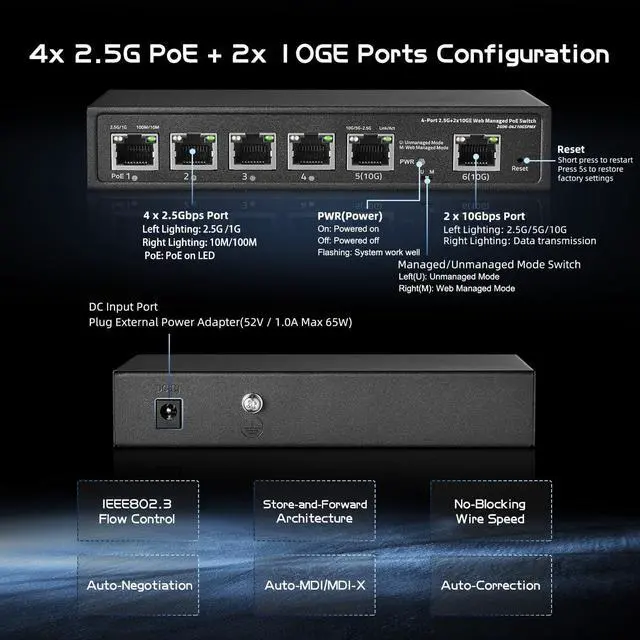

The switch includes 4x 2.5GbE PoE ports (backward compatible with 2.5G/1G/100Mbps)for high-speed networks, such as wifi7/6 AP, servers.

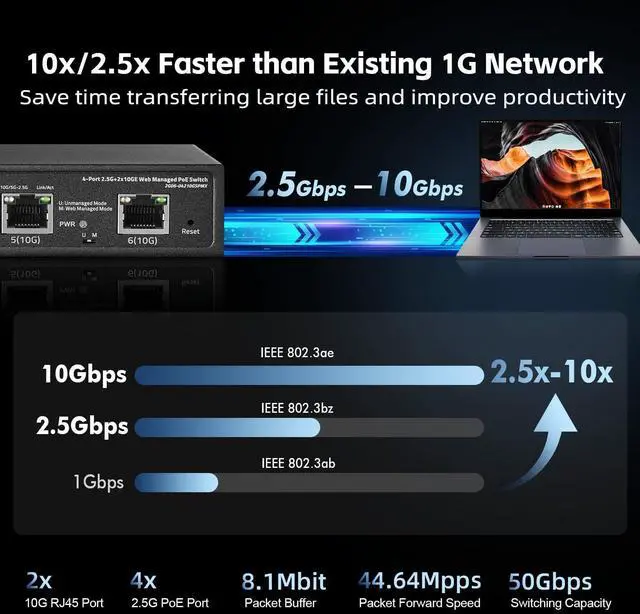

The switch includes 2x 10GbE RJ45 ports (backward compatible with 10G/5G/2.5G/1G/100Mbps)for high-speed networks, such as application servers and core switches.

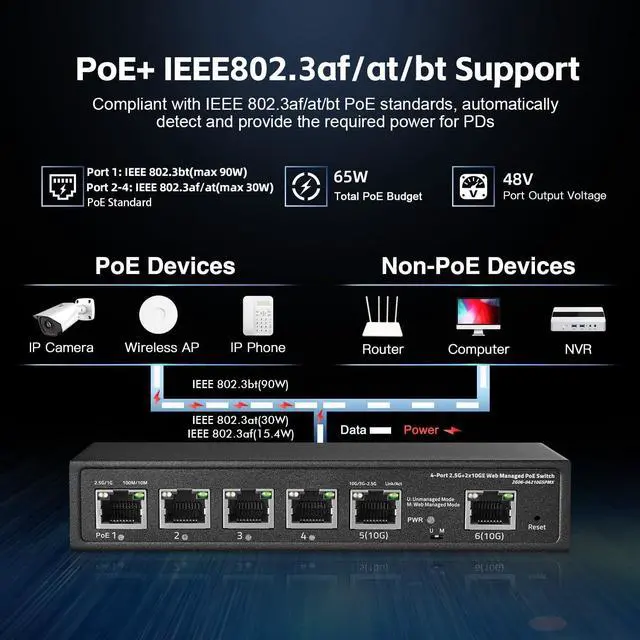

The PoE ports support IEEE 802.3af/at/bt PoE standard, up to 90W on port 1 and 30W on port 2-4.(total power budget: 65W) for powering PoE-enableddevices.

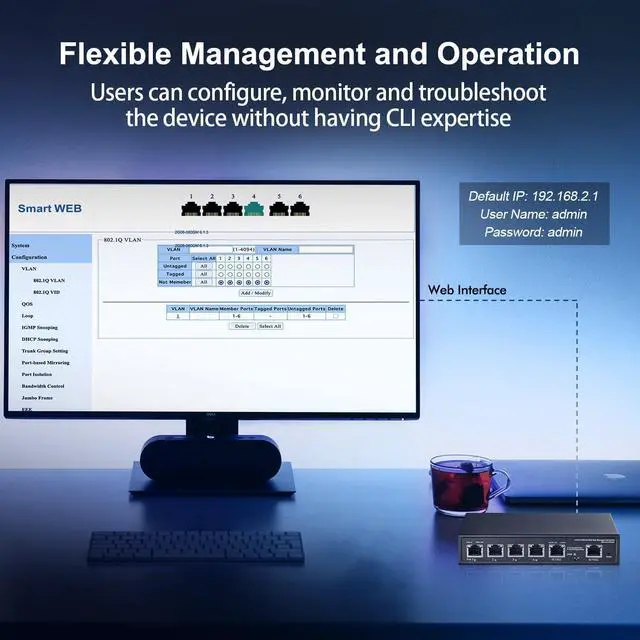

Innovative design support unmanaged and managed mode, easy-to-use with web GUI, It provides an overview dashboard, port management and setting guide, making network management intuitive.
It supports the IEEE 802.3az Energy-Efficient Ethernetstandard. Switchesautomatically adjust power consumption according tothe link status andcable length. With fanless and metal housingdesign eliminates a common point offailure, It can be placed virtuallyanywhere.
Flexible mount options for desktop or wall-mount inyour office and home, meet various network environment requirement.
Virtual Networks helps separate traffic within a business such as isolated resources betweenbetween employees and public guest users.
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Model2G06-04210GSPMXInterface4x1000M/1000M/2.5Gbps POE Ports + 2x1000M/1000M/2.5G/5G/10Gbps RJ45 PortSNetwork StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad, IEEE802.3bz, IEEE802.3aePoE Standard1 port supports IEEE802.3af/at/bt, max 90W/port PoE out 2-4 port supports IEEE802.3af/at, max 30W/port, PoE out, af/at/bt: 1, 2+4, 5+ ; 3, 6-7, 8- af/at: 1, 2+ 3, 6-, Max 65WLED IndicatorPWR:Power LED/SYS LED 1-4 Ports: Link/Act LED , 1G speed LED, 2.5G speed,LED 5-6 Ports: Link/Act LED2.5G/5G speed LED10G speed LED POE: POE on LEDMAC Address Table4KJumbo Frame12KBytePacket Buffer12MbitBuffer8.1 MbitSwitching Capacity50GbpsPacker Forward Speed44.64MppsLightningProtectionlevel6KV 8/20us,IP30Input Power SupplyExternal power DC: 52V1A, Max 65W (100-240Vac 50/60Hz 0.2A)Structure Information Product Dimensions: 160mm*112mm*30mm,Packaging Dimensions: 265mm*220mm*68mm,Product Net Weight: 0.55KG, Product Gross Weight: 1.1KG EnvironmentOperating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing This ItemBinardat 10G PoE Switch - 4 x 2.5G RJ-45 Base-T PoE Ports, 2 x 10G RJ-45 Ports, Web Managed/Unmanaged, IEEE8023af/at 65W, Metal Fanless Desktop/Wallmount Network SwitchRecommendationsBinardat 6 Port 10G Switch, 4 x 2.5G RJ-45 Base-T Ports, 2 x 10G RJ-45 Ports, Web Managed/Unmanaged, Metal Fanless Managed Multi-Gigabit Desktop/Wallmount Network Switch 6 Ports 10Gb Unmanaged Ethernet Switch with 4*2.5G Base-T Ports, 2*10G RJ45 Ports. 60Gbps Switching Capacity, GiGaPlus 10Gbps Network Switch for 2.5G/10Gbps NAS/PC, WiFi6 Router, Wireless AP 10Gbe Ethernet Switch Unmanaged with 2 x 10Gb RJ45 Ports 4 x 2.5Gb Base-T Ports, Desktop/Wall Mount NICGIGA 6 Port 10Gbps Network Switch for Wireless AP, NAS, PC 8 Port 2.5G Gigabit PoE Web Managed Switch with 10G SFP, IEEE 802.3af/at PoE 135W, Support WiFi6 AP, NAS, PoE Camera NVR Amer - Switch - 8 Ports - Unmanaged - Desktop (SG8D)
