MokerLink Outdoor 10 Port Gigabit PoE Switch, 8 Gigabit PoE, 2 Gigabit SFP, 96W IEEE802.3af/at, IP65 Weatherproof Plug & Play Network Switch
- 10 Gigabit Ports: Includes 8 Gigabit POE ports, 2 Gigabit SFP, all ports support gigabit rate(1000Mbps), with excellent data exchange performance, the 2 SFP port(without module) can be connected to optical fiber, suitable for outdoor long-distance transmission.
- IEEE802.3af/at POE: Built-in power supply max 96W, outdoor installation is more convenient. Port 1-8 support IEEE 802.3af/at, max reached 30W. *Please note: not support passive 24V PoE.*
- Plug & Play: Including power cord with wiring terminal, directly connect switch power input interface, anti reverse connection without error. Network cable directly connected to POE devices, automatic detection, can be used without configuration.
- Outdoor Weatherproof: Industrial grade ABS polymer material shell, power and cable interface are all protected in the shell, which has better waterproof, dustproof, and snowproof effects, and is more suitable for outdoor use; also for complex indoor environments, such as warehouses, computer roo
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

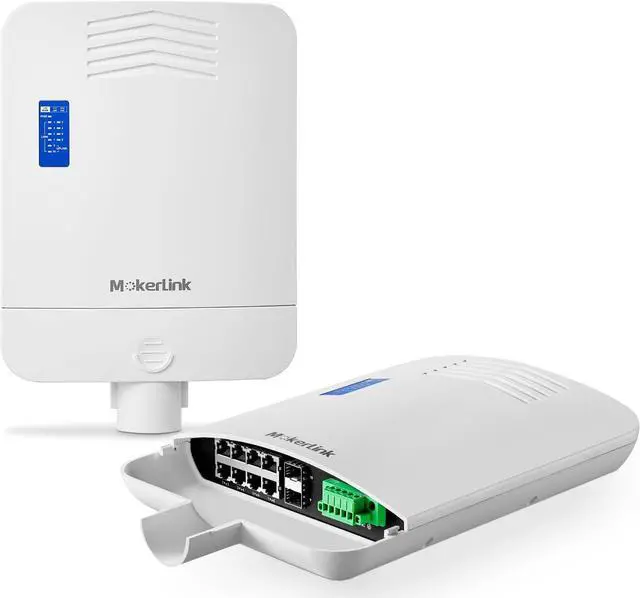

POE-G082GSO is an outdoor rainproof Gigabit PoE switch. Equipped with 8x 10/100/1000Mbps RJ45 PoE ports and 2 Gigabit SFP ports, It adopts ABS plastic outdoor rainproof shell for holding pole installation. Excellent performance can help you widely used in wireless, surveillance and other fields.

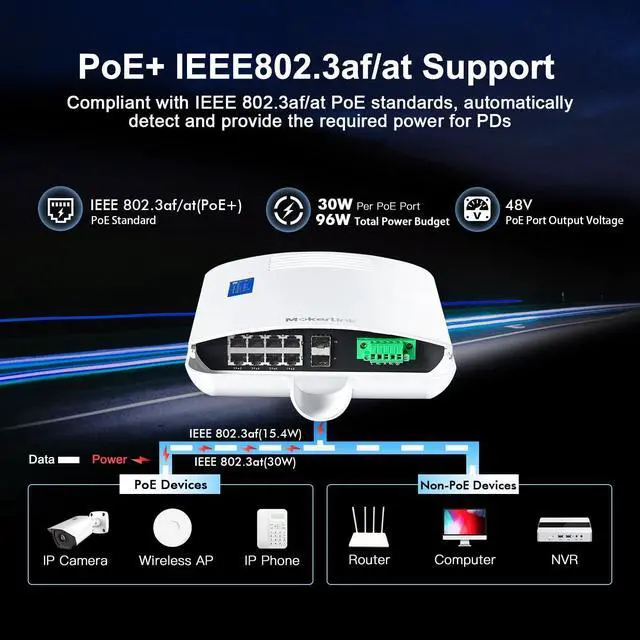

Compatible with IEEE802.3af/at standard, PoE switch determines anddelivers the exact power supply to PoE devices.
The outdoor PoE switch features non-blocking wire-speed architecture with 20Gbps switching capacity for maximum data throughput.
Accept universal SFP transceiver with single mode or multi-mode fiber optical module. extending beyond the limitations of ethernet cabling.
With an outdoor waterproof and dustproof enclosure,buidling in lightingprotection IC, It can be used in various conditions forstable performance.
plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.

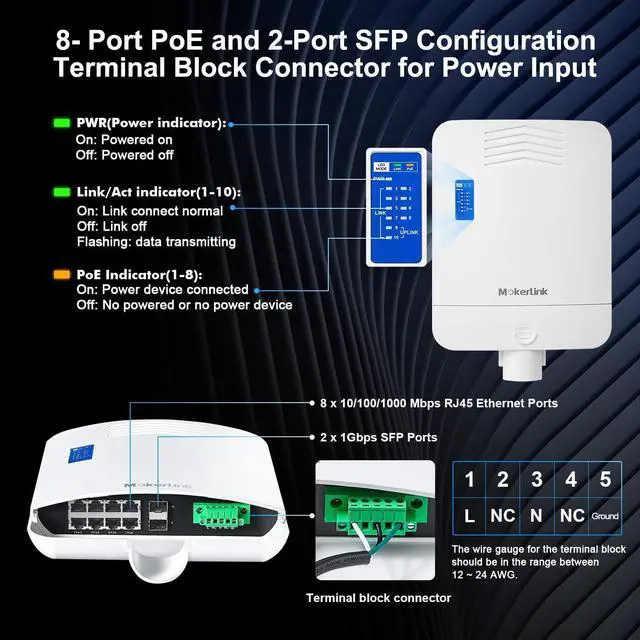

The power connection uses a quick-plug terminal block connector. It is recommended that the user use a cable with a current capacity of more than 6A.
The led indicators on the front paneal display the current status of the device intuitively, give convenience to quick diagnose.

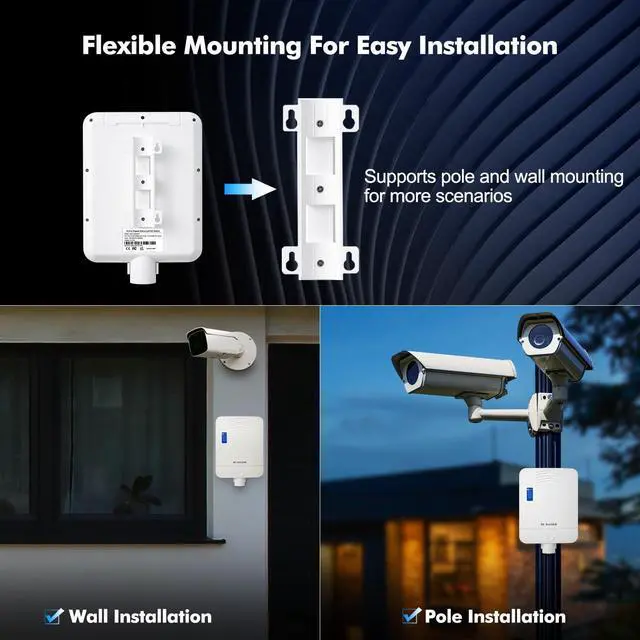

The outdoor PoE Switch is easy to install using included tools. Support holding pole installation and wall installation.
ModelPOE-G082GSOEthernet8 x 10/100/1000 Mbps RJ45 Ethernet Ports + 2 x 1Gbps SFP PortsBandwidth20GbpsPack forward rate14.88MppsPacket Buffer Memory2 MbitMAC address4kNetwork ProtocolIEEE802.3 (10Base-T),IEEE802.3u (100Base-TX),IEEE802.3ab (1000Base-TX),IEEE802.3x (Flow control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)PoE ProtocolIEEE802.3af(15.4W),IEEE802.3at(30W)Network Medium10Base-T : Cat3, 4, 5 or above UTP(100m),100Base-TX : Cat5 or above UTP(100m),1000Base-TX : Cat5 or above UTP(100m) Optical MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um,Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125umWorking EnvironmentWorking Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing,Storage Temperature: 5%~90%, non-condensingIndicatorPWR (Power), 1-10 Green Light (Link&Data), PWR On: Powered on, Off: Powered off.1-8 PoE Led On: PoE device connected: Off: No-PoE device/No powerCasingABS plasticStructure SizeProduct Dimensions: 300*220*44mm,Package Dimensions: 500*280*100mm,Product N.W: 0.8kg,Product G.W: 1.36kgPower VoltageInput voltage :AC100-240V,Power supply:52V / 1.85A (96W)Packing ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC This ItemMokerLink Outdoor 10 Port Gigabit PoE Switch, 8 Gigabit PoE, 2 Gigabit SFP, 96W IEEE802.3af/at, IP65 Weatherproof Plug & Play Network SwitchRecommendationsMokerLink Outdoor 6 Port Gigabit PoE Switch, 4 Gigabit PoE, 2 Gigabit SFP, 65W IEEE802.3af/at, IP65 Weatherproof Plug & Play Network Switch MokerLink 8 Port PoE Switch with 2 Gigabit Uplink, 802.3af/at PoE+ 100Mbps, 120W Built-in Power, Extend to 250Meter, Metal Plug & Play PoE Switch with 16 POE Ports +2 Gigabit Uplink,1 x 1.25G SFP,802.3af/at PoE+ 100Mbps, 240W Built-in Power, Extend to 250Meter,Unmanaged Metal Plug and Play Reidubo 8 Port Gigabit PoE Switch Waterproof, 1000 Mbps 8 PoE+ Ports 120W, IEEE802.3af/at Power Over Ethernet Unmanaged Outdoor Network Switch, Plug & Play Gigabit 4-Port PoE Switch/Extender Outdoor IP65 Waterproof PoE Passthrough/PoE Amplifier/PoE Booster,60W 48V 10/100/1000Mbps. IEEE 802.3af/at/bt Compliant,by ThePoEstore
Compatible with IEEE802.3af/at standard, PoE switch determines anddelivers the exact power supply to PoE devices.
The outdoor PoE switch features non-blocking wire-speed architecture with 20Gbps switching capacity for maximum data throughput.
Accept universal SFP transceiver with single mode or multi-mode fiber optical module. extending beyond the limitations of ethernet cabling.
With an outdoor waterproof and dustproof enclosure,buidling in lightingprotection IC, It can be used in various conditions forstable performance.
plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.
The power connection uses a quick-plug terminal block connector. It is recommended that the user use a cable with a current capacity of more than 6A.
The led indicators on the front paneal display the current status of the device intuitively, give convenience to quick diagnose.
The outdoor PoE Switch is easy to install using included tools. Support holding pole installation and wall installation.
ModelPOE-G082GSOEthernet8 x 10/100/1000 Mbps RJ45 Ethernet Ports + 2 x 1Gbps SFP PortsBandwidth20GbpsPack forward rate14.88MppsPacket Buffer Memory2 MbitMAC address4kNetwork ProtocolIEEE802.3 (10Base-T),IEEE802.3u (100Base-TX),IEEE802.3ab (1000Base-TX),IEEE802.3x (Flow control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)PoE ProtocolIEEE802.3af(15.4W),IEEE802.3at(30W)Network Medium10Base-T : Cat3, 4, 5 or above UTP(100m),100Base-TX : Cat5 or above UTP(100m),1000Base-TX : Cat5 or above UTP(100m) Optical MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um,Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125umWorking EnvironmentWorking Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing,Storage Temperature: 5%~90%, non-condensingIndicatorPWR (Power), 1-10 Green Light (Link&Data), PWR On: Powered on, Off: Powered off.1-8 PoE Led On: PoE device connected: Off: No-PoE device/No powerCasingABS plasticStructure SizeProduct Dimensions: 300*220*44mm,Package Dimensions: 500*280*100mm,Product N.W: 0.8kg,Product G.W: 1.36kgPower VoltageInput voltage :AC100-240V,Power supply:52V / 1.85A (96W)Packing ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC This ItemMokerLink Outdoor 10 Port Gigabit PoE Switch, 8 Gigabit PoE, 2 Gigabit SFP, 96W IEEE802.3af/at, IP65 Weatherproof Plug & Play Network SwitchRecommendationsMokerLink Outdoor 6 Port Gigabit PoE Switch, 4 Gigabit PoE, 2 Gigabit SFP, 65W IEEE802.3af/at, IP65 Weatherproof Plug & Play Network Switch MokerLink 8 Port PoE Switch with 2 Gigabit Uplink, 802.3af/at PoE+ 100Mbps, 120W Built-in Power, Extend to 250Meter, Metal Plug & Play PoE Switch with 16 POE Ports +2 Gigabit Uplink,1 x 1.25G SFP,802.3af/at PoE+ 100Mbps, 240W Built-in Power, Extend to 250Meter,Unmanaged Metal Plug and Play Reidubo 8 Port Gigabit PoE Switch Waterproof, 1000 Mbps 8 PoE+ Ports 120W, IEEE802.3af/at Power Over Ethernet Unmanaged Outdoor Network Switch, Plug & Play Gigabit 4-Port PoE Switch/Extender Outdoor IP65 Waterproof PoE Passthrough/PoE Amplifier/PoE Booster,60W 48V 10/100/1000Mbps. IEEE 802.3af/at/bt Compliant,by ThePoEstore
