Industrial Gigabit 3 Ports PoE Ethernet Switch PoE+ Fiber Switch with 100/1000M Adaptive SFP Slot Din Rail Unmanaged 10/100/1000Mbps Network Switch IEEE802.3af/at 30W/Port Max 90W 12-48V DC

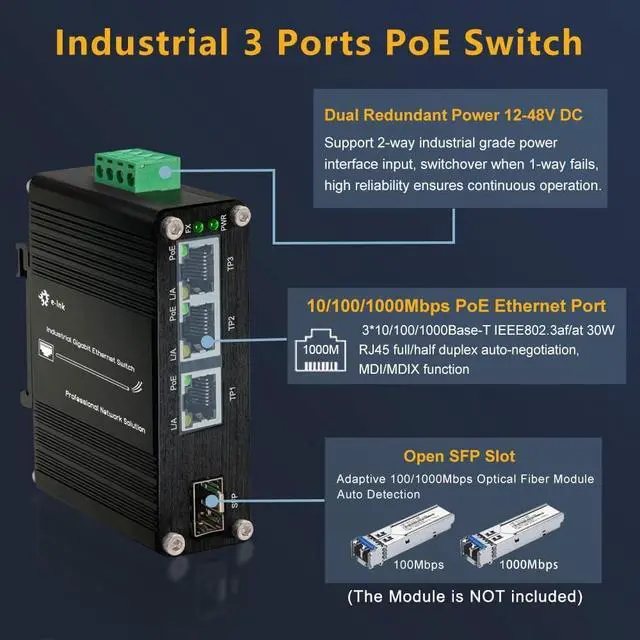

- Port ConfigurationEquipped with 3 10/100/1000Base-T RJ45 ports IEEE80.3af/at 30W with Auto MDI/MDI-X and 1 SFP slot 100Base-FX or 1000Base-X dual mode (auto detection).

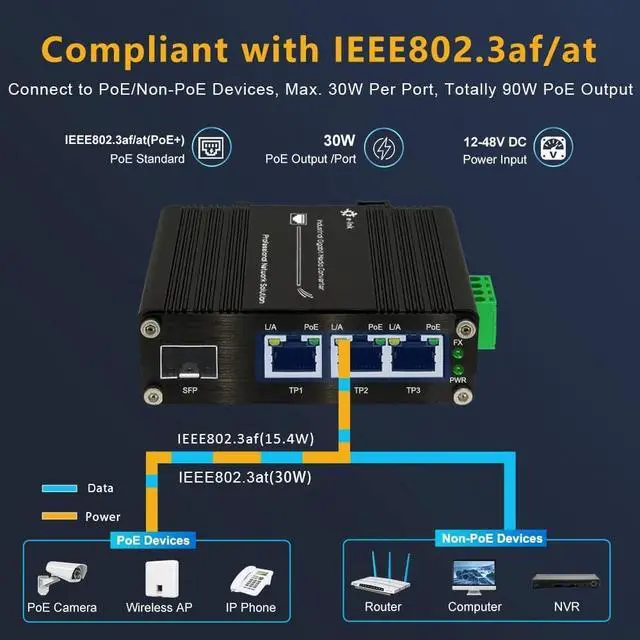

- Compliant with IEEE802.3af/atThe 3-port Ethernet switch supports IEEE802.3af/at PoE Standard, each port max power can reach 30W and maximum 90W high total power PoE output.

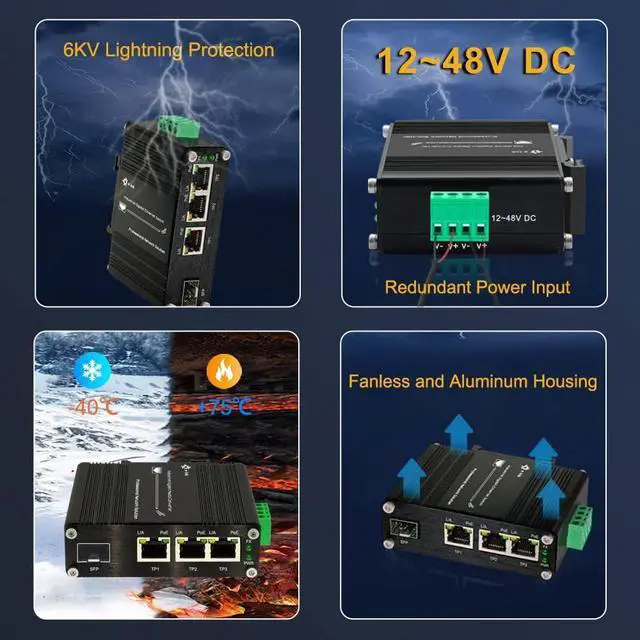

- Redundant Power InputThe industrial network switch with DC12-48V wide voltage input supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work, high reliability ensures continuous operation.
- Industrial Grade QualityIP40 protection grade, it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F) and 6KV lightning protection which make it can adapt to various harsh environments.
- Din-Rail & Wall MountThe gigabit 3 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and wall mount accessory, can install on uni
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

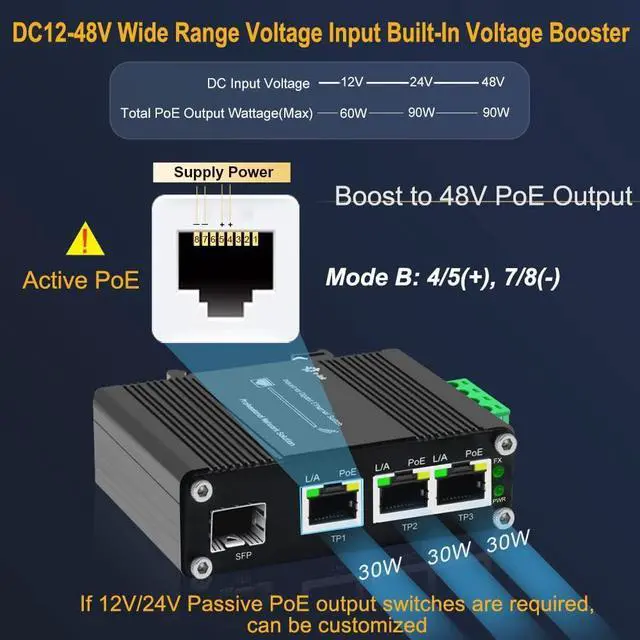

This is a hardened industrial-grade Gigabit PoE Switch with 12~48VDC Input and Voltage Booster 48VDC PoE Output. Unmanaged solar power PoE switch is designed to match the critical industrial standards. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1core/2core) as needed.
The compact and aluminum casing design effectively overcome the shortcomings of overheating and rust of the iron shell, ensuring the ruggedness, durability and working stability of the 3-port PoE gigabit Ethernet switch
This Network Switch Support 12~48V DC Input. It Will Solve The Problem That You Only Have 12v Or 24v Centralized Power Supply Or Solar Power Supply.Power Supply not included, need to purchase separately. Use 90W(12-48VDC) and above Power Supply are fine.
With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The fiber switch will fulfill the needs of industrial applications and is a good choice for an economical solution for industrial Ethernet connections.
Ethernet Port3 x RJ45 10/100/1000BASE-T with 802.3at PoE+ function (Ports 1 to 3) Optical Port1 x SFP 1000Base-X or 100Base-FX (auto detection)Forward & Filtering Rate14880pps (10Mbps), 148800pps (100Mbps), 148800pps (100Mbps)Processing TypeStore-and-ForwardAddress Table Size2K MAC AddressesJumbo Frame9K BytesInput Power12~48VDC, Redundant Power (4-pin Terminal Block)Switching Fabric8GbpsPower Consumption<95W(PoE in use); 6W(PoE not in use)Power Pin Assignment4/5(+), 7/8(-)PoE StandardIEEE802.3af/at 30WPoE BudgetUp to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC) Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE802.3at Power over Ethernet Plus, IEEE802.3af Power over Ethernet
3RJ45+1SFP PoE Switch
The compact and aluminum casing design effectively overcome the shortcomings of overheating and rust of the iron shell, ensuring the ruggedness, durability and working stability of the 3-port PoE gigabit Ethernet switch
This Network Switch Support 12~48V DC Input. It Will Solve The Problem That You Only Have 12v Or 24v Centralized Power Supply Or Solar Power Supply.Power Supply not included, need to purchase separately. Use 90W(12-48VDC) and above Power Supply are fine.
With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The fiber switch will fulfill the needs of industrial applications and is a good choice for an economical solution for industrial Ethernet connections.
Ethernet Port3 x RJ45 10/100/1000BASE-T with 802.3at PoE+ function (Ports 1 to 3) Optical Port1 x SFP 1000Base-X or 100Base-FX (auto detection)Forward & Filtering Rate14880pps (10Mbps), 148800pps (100Mbps), 148800pps (100Mbps)Processing TypeStore-and-ForwardAddress Table Size2K MAC AddressesJumbo Frame9K BytesInput Power12~48VDC, Redundant Power (4-pin Terminal Block)Switching Fabric8GbpsPower Consumption<95W(PoE in use); 6W(PoE not in use)Power Pin Assignment4/5(+), 7/8(-)PoE StandardIEEE802.3af/at 30WPoE BudgetUp to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC) Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE802.3at Power over Ethernet Plus, IEEE802.3af Power over Ethernet
3RJ45+1SFP PoE Switch
