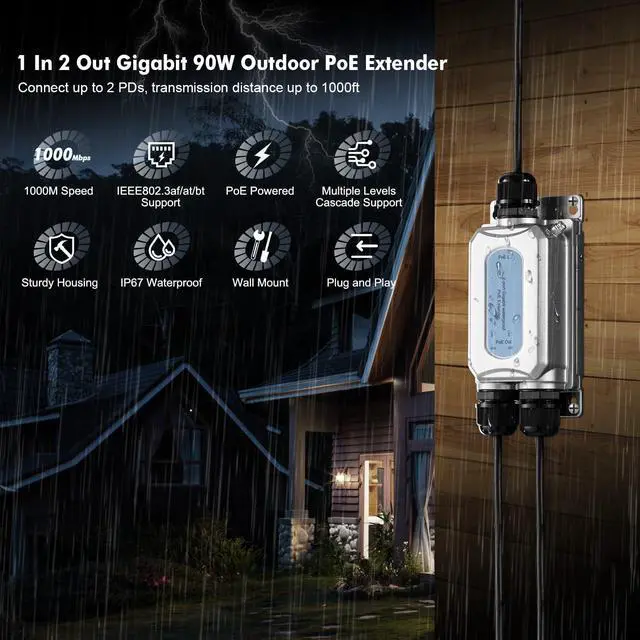

Outdoor IP67 Waterproof Gigabit PoE Passthrough Switch, 1 PoE in 2 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 10/100/1000Mbps Ethernet, Wall Mount Plug and Play
- Gigabit PoE PassthroughInclude 1 PoE In 2 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required, Max PoE Input IEEE802.3af/at/bt 90W.
- IEEE 802.3 af/at/bt Support standard PoE, Input Max 90W(IEEE802.3bt), Port 1 Output Max 60W(IEEE802.3bt), Port 2 Output 30W(IEEE802.3at). PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 1: 1/2 (+), 3/6 (-)4/5(+), 7/8(-); Output Port 2: 1/2 (+), 3/6 (-)

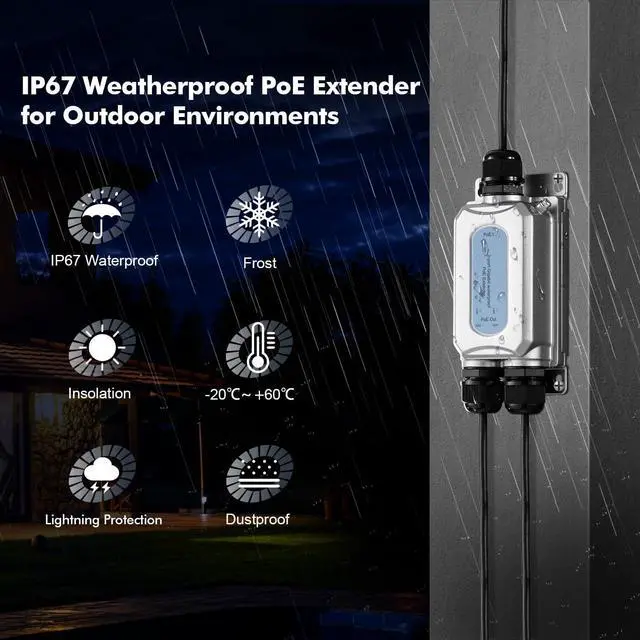

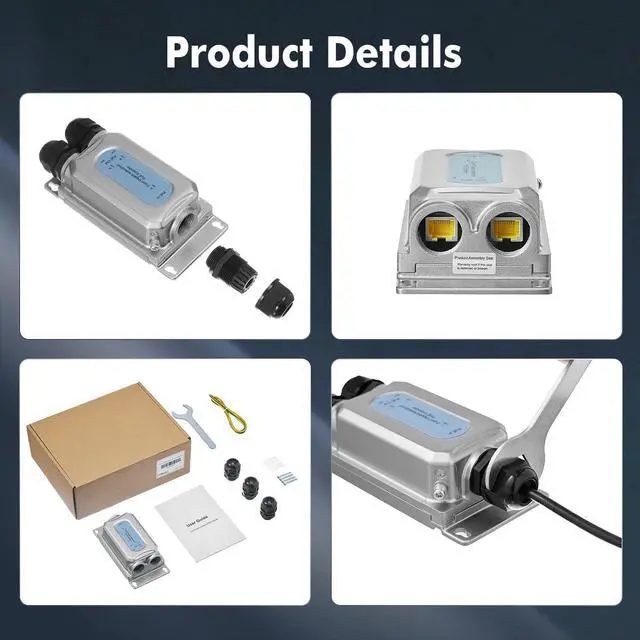

- IP67 Outdoor weatherproof Industrial grade ruggedized metal shell, cable interface all protected in the shell, with waterproof cap, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc. **Network cable through the waterproof cap and then make RJ45 connector**
- Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

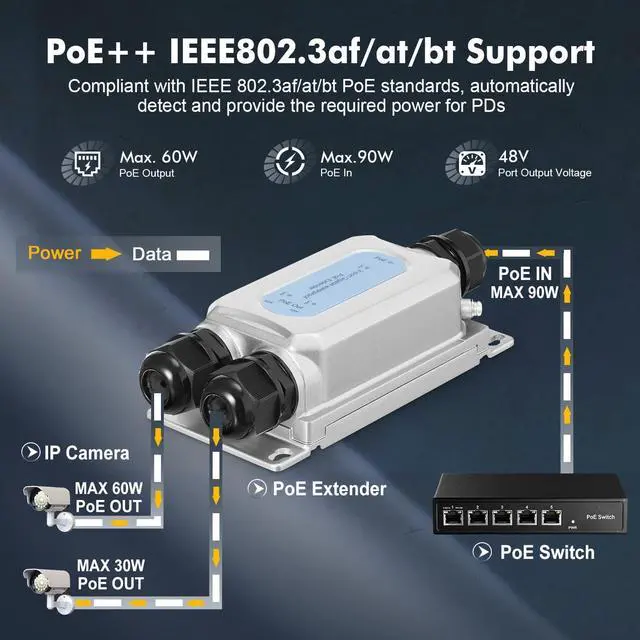

Binardat 1 in 2 out IP67 outdoor gigabit PoE extender provides 1×10/100/1000Mbps PoE in port and 2×10/100/1000Mbps PoE out ports for remote PoE device. The PoE in port support Max.90W. ThePoE extender auto-detects a PoE (15.4W) , PoE+ (30W) or PoE++ (60W) devices.
The PoE extender is powered by PoE switch/spliter. No power adapter needed. The PoE in Port supports 90W input(IEEE802.3bt).
Two output ports have PSE function, port1 supporting up to 60W output, port2 supporting up to 30W output.
1*10/100/1000Mbps PD Ethernet Port + 2*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.

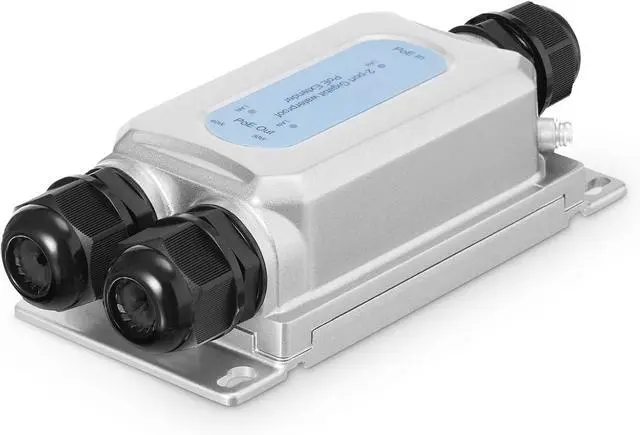

The PoE extender uses Metal housing and supports IP67 waterproof, It designed for outdoor surveillance scenarios.

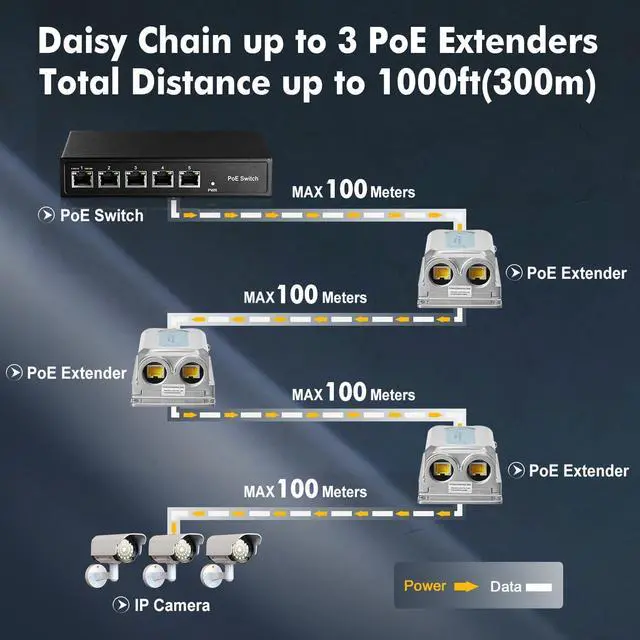

The transmission distance of a PoE out port can be up to 300m with cascade, meeting the requirement of wired transmission.
Plug and play, No configuring is required. Auto MDI/MDI-X crossover andAuto-negotiation oneach port senses thelink speed of a networkdevice.
The switch is designed to operate in severe environments and in temperatures ranging from 20°C to +60°C (-4°F to 140°F).
The PoE extender support wall mount installation, It designed for outdoor surveillance scenarios.

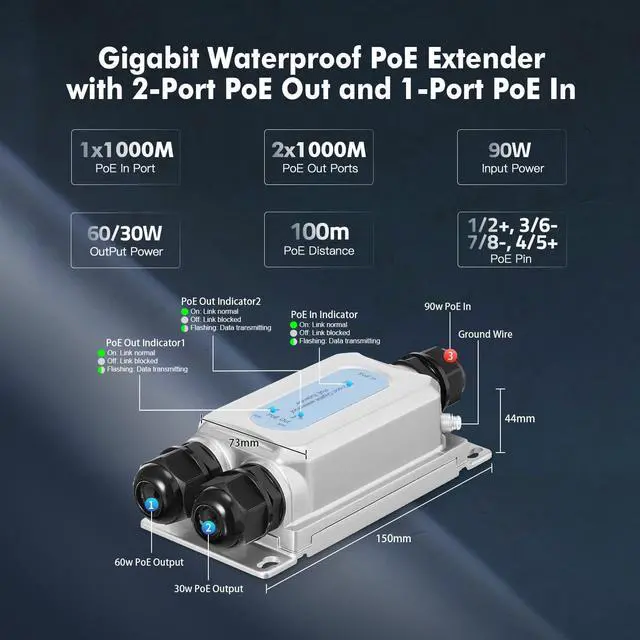

ModelEXT-102GBTOEthernet Port1*10/100/1000 Base-T PoE power receiving port + 2*10/100/1000 Base-T PoE power supply port, supply power for PoE devices Transmission DistanceAble to cascade level two extender, total power consumption <=25W), transmission distance is 300m StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt,IEEE802.3xNetwork Media(Cable)10BASE-T: UTP category 3,4,5 cable (100m)100BASE-TX: UTP category 5 cable (100m)1000BASE-T: UTP category 5e cable (100m)PoE input90W MaxPoE Output48-55V DC, Port1: 60W Max, Port2: 30WMaxPoE PIN3/6+,1/2-, 4/5+, 7/8-Dimensions (L*W*H)150*73*44mmWaterproofIP67Hazardous ratingIK10TemperatureOperating Temperature: -20 ~ 60 , Storage Temperature-40 ~ 80 HumidityOperating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 90% non-condensing 1 in 2 out 90W Extender
The PoE extender is powered by PoE switch/spliter. No power adapter needed. The PoE in Port supports 90W input(IEEE802.3bt).
Two output ports have PSE function, port1 supporting up to 60W output, port2 supporting up to 30W output.
1*10/100/1000Mbps PD Ethernet Port + 2*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.
The PoE extender uses Metal housing and supports IP67 waterproof, It designed for outdoor surveillance scenarios.
The transmission distance of a PoE out port can be up to 300m with cascade, meeting the requirement of wired transmission.
Plug and play, No configuring is required. Auto MDI/MDI-X crossover andAuto-negotiation oneach port senses thelink speed of a networkdevice.
The switch is designed to operate in severe environments and in temperatures ranging from 20°C to +60°C (-4°F to 140°F).
The PoE extender support wall mount installation, It designed for outdoor surveillance scenarios.
ModelEXT-102GBTOEthernet Port1*10/100/1000 Base-T PoE power receiving port + 2*10/100/1000 Base-T PoE power supply port, supply power for PoE devices Transmission DistanceAble to cascade level two extender, total power consumption <=25W), transmission distance is 300m StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt,IEEE802.3xNetwork Media(Cable)10BASE-T: UTP category 3,4,5 cable (100m)100BASE-TX: UTP category 5 cable (100m)1000BASE-T: UTP category 5e cable (100m)PoE input90W MaxPoE Output48-55V DC, Port1: 60W Max, Port2: 30WMaxPoE PIN3/6+,1/2-, 4/5+, 7/8-Dimensions (L*W*H)150*73*44mmWaterproofIP67Hazardous ratingIK10TemperatureOperating Temperature: -20 ~ 60 , Storage Temperature-40 ~ 80 HumidityOperating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 90% non-condensing 1 in 2 out 90W Extender
