MokerLink 12 Port Gigabit Ethernet Switch, 8 GE PoE+, 2 GE Uplink, 2 Gigabit SFP, Fanless Plug & Play
- 12 Gigabit Ports: Includes 8 Gigabit POE+ ports, 2 Gigabit UpLink, 2 Gigabit SFP. The ethernet ports support 10/100/1000Mbps automatic adaptation. The 2 gigabit uplink can be connected to different networks or devices, such as routers, NVRs, etc. The 2 Gigabit SFP Port can be connected to single-mode or multimode SFP modules, and transmit more distance through optical fiber
- High POE Power: Maximum support 120W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at, each port max power supply reached 30W. *Please note: not support passive 24V PoE.*
- Unmanaged Plug & Play: Support Power Detection function, automatically detect devices, can be compatible with non-POE devices to provide data link. Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, can be used without configuration.
- Extend Mode: When turn on, the 7-8 POE port can be extended to 250 meter distances and 10Mbps speed; Simultaneously enable
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

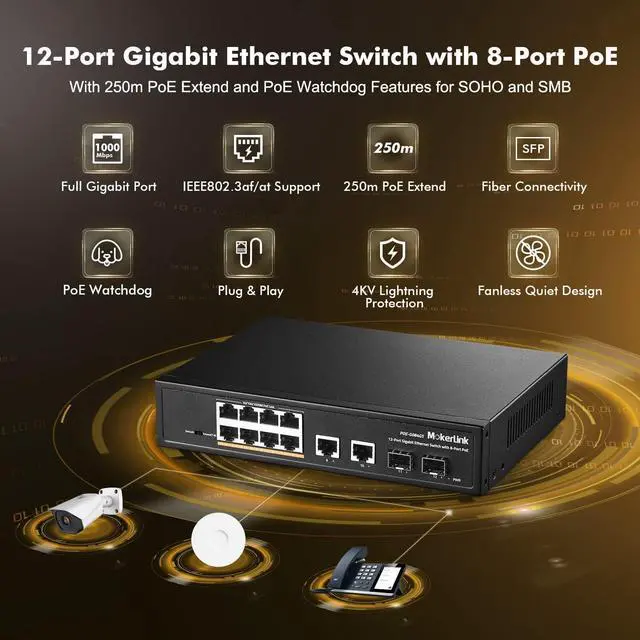

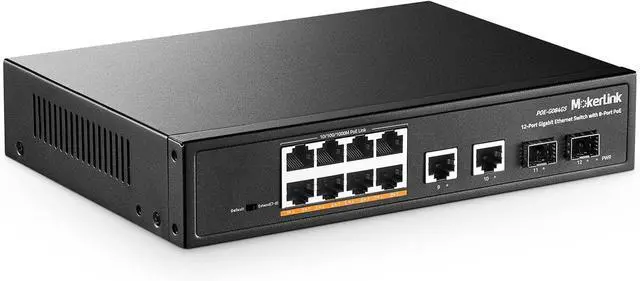

POE-G084GS is an unmanaged desktop PoE Switch with 8 × gigabit PoE Ports. The product is equipped with two types of transmission modes (Default/Extend). The poe port supports the IEEE802.3af/at standards. The maximum power consumption is 120W.

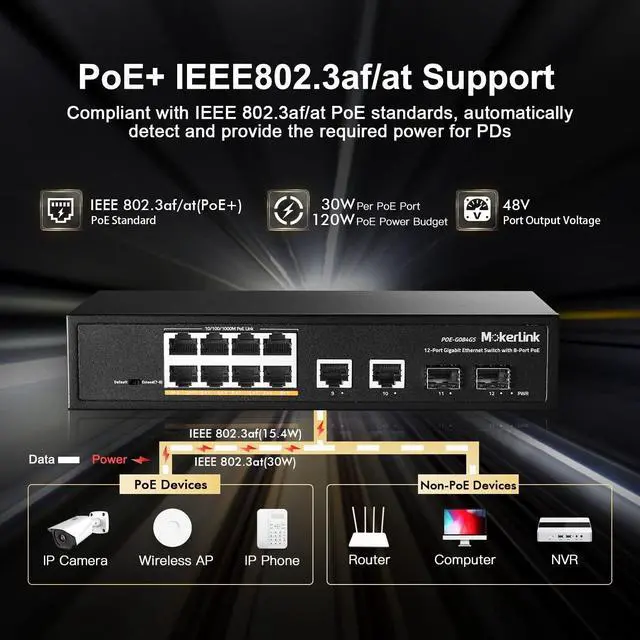

Compatible with IEEE802.3af/at standard, PoE switch determines anddelivers the exact power supply to PoE devices.
The PoE switch features non-blocking wire-speed architecture with 24Gbps switching capacity for maximum data throughput.

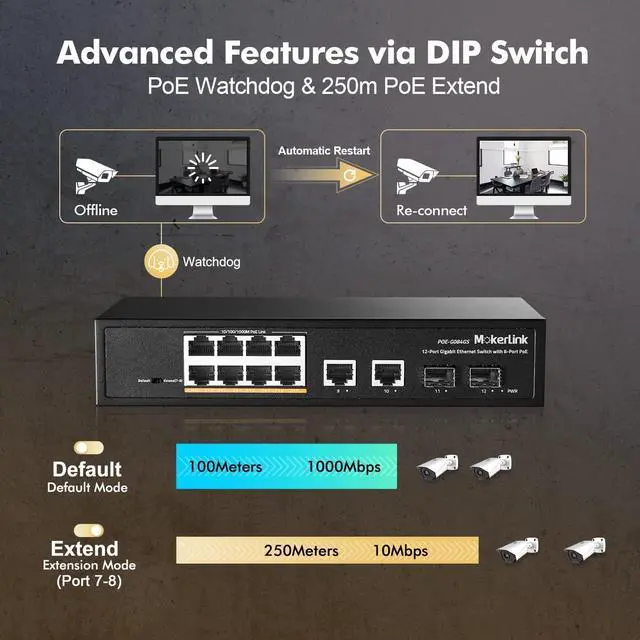

By dialing or enabling extend mode on the front panel, the transmissiondistance of a PoE port 7-8 can be up to 250m, bandwidth reduced to 10Mbps.
The switch's port 11-12 use fiber cable to connect wired network segments throughout buildings extending beyond the limitations of ethernet cabling.
plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.

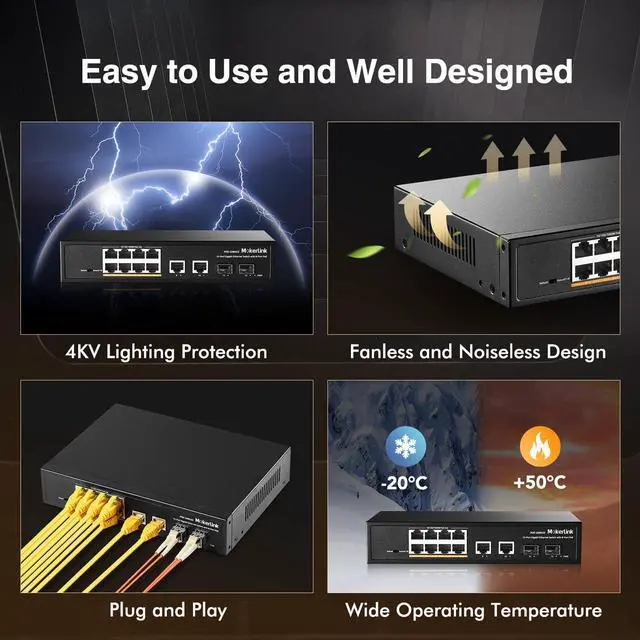

The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
The poe switch has built-in mine-proof circuits,effectively reducing the impact of thunderstorms on network systems.
Supports working at ambient temperatures of -20 °C to +50 °C, improving system robustness, adapted to harsh environments.
ModelPOE-G084GSEthernet8* Gigabit PoE Ports + 2* Gigabit Ethernet ports + 2* Gigabit SFP PortsBandwidth24GbpsPack forward rate17.856MppsMAC address2kJumbo Frame9216bytesNetwork ProtocolIEEE802.3 (10Base-T),IEEE802.3u (100Base-TX),IEEE802.3ab (1000Base-TX),IEEE802.3x (Flow control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)PoE ProtocolIEEE802.3af(15.4W),IEEE802.3at(30W)Network Medium10Base-T : Cat3, 4, 5 or above UTP(100m),100Base-TX : Cat5 or above UTP(100m),1000Base-TX : Cat5 or above UTP(100m) Optical MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um,Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125umWorking EnvironmentWorking Temperature: -20~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing,Storage Temperature: 5%~90%, non-condensingIndicatorPWR (Power), 1-10 Green Light (Link&Data), PWR On: Powered on, Off: Powered off.1-10 Green Light (Link&Data) On: Link normal, Off: Link blocked, Flashing: Data transmittingDIP ModeDefault: common mode, all interfaces can communicate with each other, thetransmission distance is less than 100 meters, the transmission rate is 10/100/1000Madaptive; The port AI mode is disabledExtend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enablePOE watchdog)Structure SizeProduct Dimensions: 220*161*44.5mm,Package Dimensions: 315*215*85mm,Product N.W: 0.92kg,Product G.W: 1.22kgPower VoltageInput voltage :AC100-240V,Power supply:52V2.3A (120W)Packing ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC POE-G084GS
Compatible with IEEE802.3af/at standard, PoE switch determines anddelivers the exact power supply to PoE devices.
The PoE switch features non-blocking wire-speed architecture with 24Gbps switching capacity for maximum data throughput.
By dialing or enabling extend mode on the front panel, the transmissiondistance of a PoE port 7-8 can be up to 250m, bandwidth reduced to 10Mbps.
The switch's port 11-12 use fiber cable to connect wired network segments throughout buildings extending beyond the limitations of ethernet cabling.
plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
The poe switch has built-in mine-proof circuits,effectively reducing the impact of thunderstorms on network systems.
Supports working at ambient temperatures of -20 °C to +50 °C, improving system robustness, adapted to harsh environments.
ModelPOE-G084GSEthernet8* Gigabit PoE Ports + 2* Gigabit Ethernet ports + 2* Gigabit SFP PortsBandwidth24GbpsPack forward rate17.856MppsMAC address2kJumbo Frame9216bytesNetwork ProtocolIEEE802.3 (10Base-T),IEEE802.3u (100Base-TX),IEEE802.3ab (1000Base-TX),IEEE802.3x (Flow control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)PoE ProtocolIEEE802.3af(15.4W),IEEE802.3at(30W)Network Medium10Base-T : Cat3, 4, 5 or above UTP(100m),100Base-TX : Cat5 or above UTP(100m),1000Base-TX : Cat5 or above UTP(100m) Optical MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um,Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125umWorking EnvironmentWorking Temperature: -20~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing,Storage Temperature: 5%~90%, non-condensingIndicatorPWR (Power), 1-10 Green Light (Link&Data), PWR On: Powered on, Off: Powered off.1-10 Green Light (Link&Data) On: Link normal, Off: Link blocked, Flashing: Data transmittingDIP ModeDefault: common mode, all interfaces can communicate with each other, thetransmission distance is less than 100 meters, the transmission rate is 10/100/1000Madaptive; The port AI mode is disabledExtend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enablePOE watchdog)Structure SizeProduct Dimensions: 220*161*44.5mm,Package Dimensions: 315*215*85mm,Product N.W: 0.92kg,Product G.W: 1.22kgPower VoltageInput voltage :AC100-240V,Power supply:52V2.3A (120W)Packing ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC POE-G084GS
