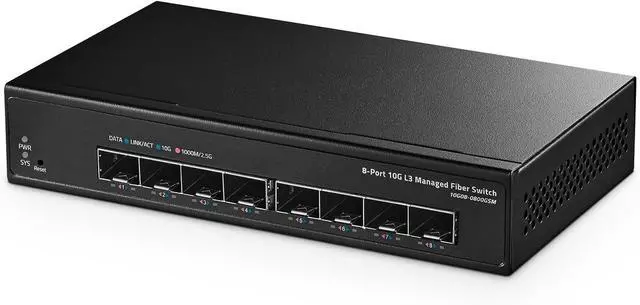

Binardat 8 Port 10 Gigabit SFP+ Managed Switch, Support 1G/10G SFP+ Module, 160Gbps Bandwidth, Web/CLI L3 Managed, Metal Fanless Fiber Desktop Network Switch
- 10G SFP+ Slot 8 x 10Gbps SFP+ ports, support 1G/2.5G/10G SFP module. It is recommended to use high-quality brands optical modules and fibers to achieve the best transmission rate
- L3/L2 Web/Cli ManagedSupport L3 Management, IPv4/IPv6, Static Route, OSPF, RIP, BGP4, DHCP Server, QoS, ACL, SNMP, STP/RSTP/MSTP(ERPS), Bandwidth Control, Flow Control, Spanning Tree, link aggregation, loop detection; Support VLAN config, IP-MAC-VLAN Port Binding, device/port status query. Support Console/Telnet/SSH
- 160Gbps Bandwidth Switching capacity is 160Gbps, higher data bandwidth, all ports support non-blocking 10G line speed forwarding up and downstream.
- Standard SFP Slot Open standard SFP slot interface, no encryption, compatible multi mode, single mode, SFP to RJ45 module.***No include SFP module, direct connection to the network cable is not supported***
- Widely Used Metal case, fanless design, quiet and stable operation, dektop and wall mount install, suitable for high-speed and long-d
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with a high performance switching engine, the 8-Port 10G Managed Fiber Switch performs optimally. It has low transmission delay, large buffer and is highly reliable.It also has powerful network management functions, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP,Web
Support 1000M/10Gbps rate adaptive function, support Auto-MDI/MDIX function, and each port has a corresponding indicator.
With eight unencrypted sfp slo, tssupport SR/LR/LRM/ER/ZR models, backward compatible with 1G rate.
It has powerful L3 network management functions, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP, Web.

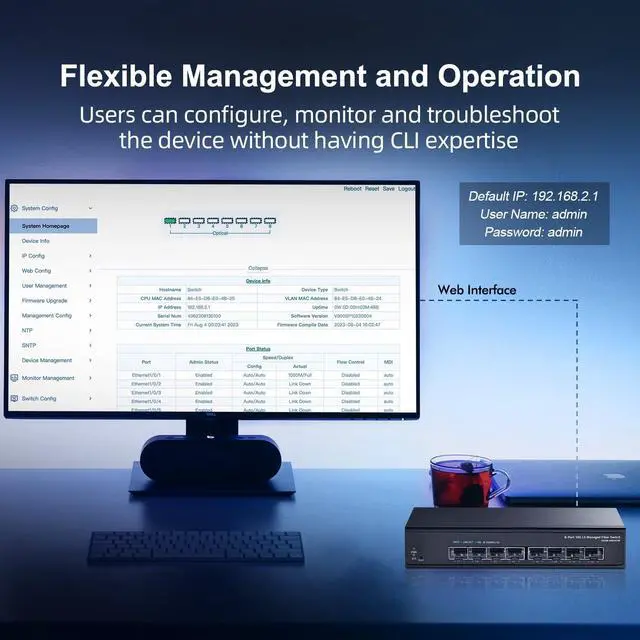

Easy-to-use with web GUI, It provides an overview dashboard, portmanagement and setting guide, making network management intuitive.
The fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.
Compact size meet space-constrained deployments, Support wall mounting.
Thereare specialized surge protection units for the 2.5g ethernet switches whichhelps in cutting the supply off.
The switch is designed to operate in severe environments and in temperatures ranging from 10°C to +50°C (14°F to 131°F).
Model10G08-0800GSMEthernet8x 1G/10G SFP+ PortsStandardIEEE802.3, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3adNetwork Media(Cable)1000BASE-FX: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)MAC Address Table16K, Auto-learning, Auto-updatingPacket Buffer12MbitsTransfer ModeStore-and-ForwardJumbo Frames12K ByteSwitching Capacity160GbpsPacket Forward Speed119.04MppsPower supplyDC 12V/2A(External)Dimensions (L*W*H)168*94*32mm,BlackTemperatureOperating Temperature: -10°C ~ 50 °CStorage Temperature: -40 °C ~70°C HumidityOperating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing 8-Port 2.5G with 10G SFP
Support 1000M/10Gbps rate adaptive function, support Auto-MDI/MDIX function, and each port has a corresponding indicator.
With eight unencrypted sfp slo, tssupport SR/LR/LRM/ER/ZR models, backward compatible with 1G rate.
It has powerful L3 network management functions, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP, Web.
Easy-to-use with web GUI, It provides an overview dashboard, portmanagement and setting guide, making network management intuitive.
The fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.
Compact size meet space-constrained deployments, Support wall mounting.
Thereare specialized surge protection units for the 2.5g ethernet switches whichhelps in cutting the supply off.
The switch is designed to operate in severe environments and in temperatures ranging from 10°C to +50°C (14°F to 131°F).
Model10G08-0800GSMEthernet8x 1G/10G SFP+ PortsStandardIEEE802.3, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3adNetwork Media(Cable)1000BASE-FX: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)MAC Address Table16K, Auto-learning, Auto-updatingPacket Buffer12MbitsTransfer ModeStore-and-ForwardJumbo Frames12K ByteSwitching Capacity160GbpsPacket Forward Speed119.04MppsPower supplyDC 12V/2A(External)Dimensions (L*W*H)168*94*32mm,BlackTemperatureOperating Temperature: -10°C ~ 50 °CStorage Temperature: -40 °C ~70°C HumidityOperating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing 8-Port 2.5G with 10G SFP
