Industrial Hardened 16 Port Gigibit Managed Fiber PoE+ Ethernet Switch,16 x 10/100/1000T RJ45 Port + 4 x 1000Base-X SFP Slot+USB-C for Management

Previous page

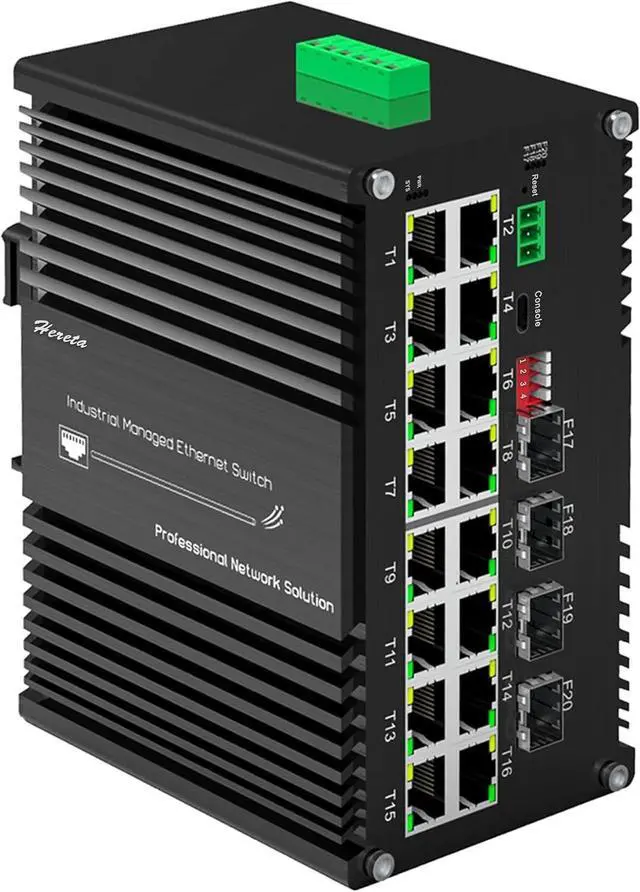

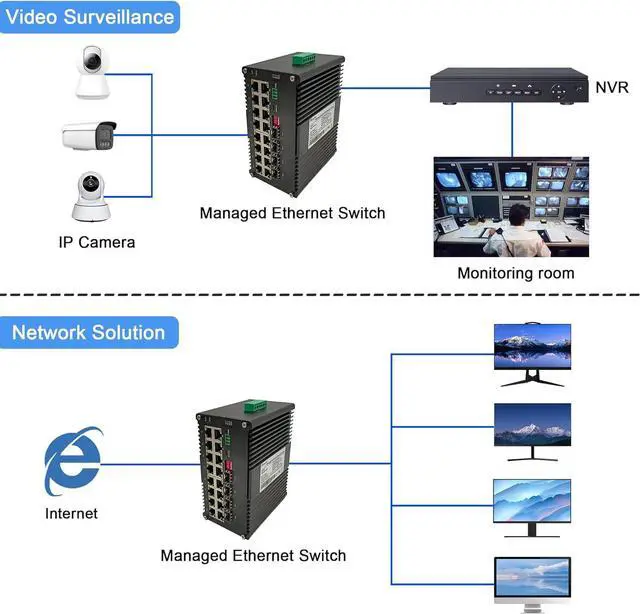

Next page LNK-DMIC2416MP Series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features:
Support 16x10/100/1000Base-T + 4x1000Base-X SFP +
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
IEEE802.3af/at compliant
DIP Switch supports one-key VLAN, one-key Ring Management
Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
10K Bytes Jumbo Frame
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature
Made of Dustproof, Close Design IP40 and Rugged High-strength Aluminium Alloy Case
Work in Operating Temperature -40°C to 80°C (-40°F to 176°F)
With Lightning Protection

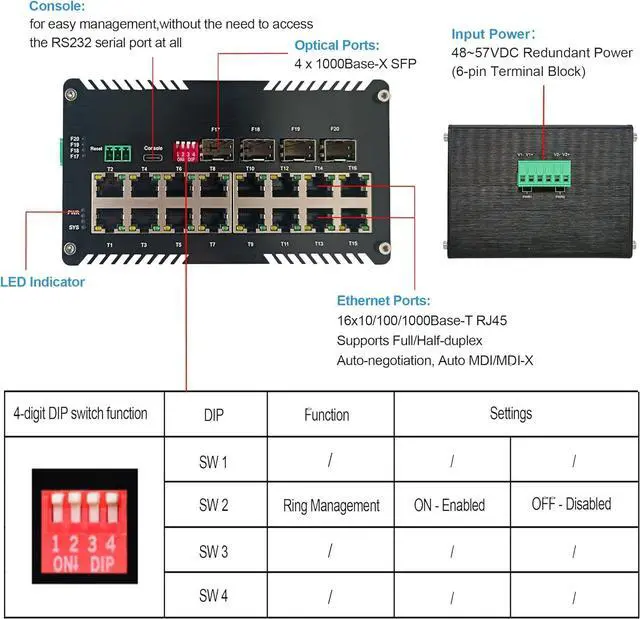

T1~T16: 10/100/1000Mbps Ethernet (PoE) Port
F17~F20: Gigabit SFP Optical Port ( (Please note that the SFP module is not included in the package.)
Power Industrial Terminals: 12~48VDCNon-PoE, 48~57VDCPoE
DIP Switch supports one-key VLAN, one-key Ring Management

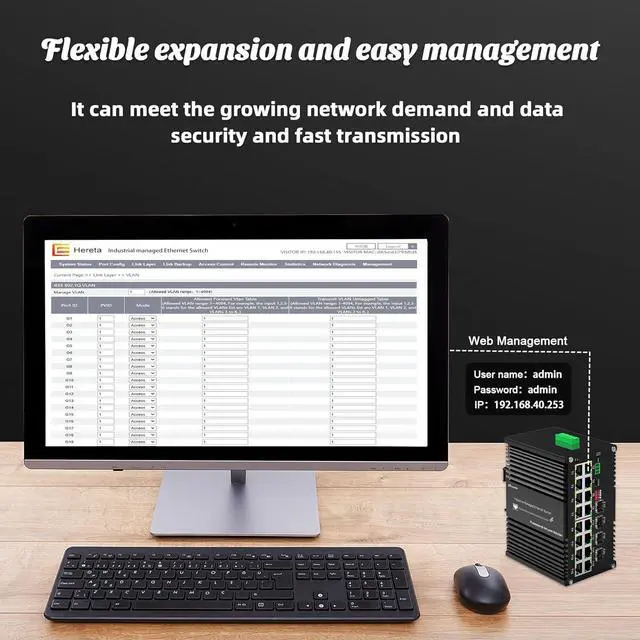

USB-C port for easy management, without the need to access the RS232 serial port at all

Connect the RJ45 port of the Switch to Network the device with a network cable.
Plug in the 1.25G SFP module and insert the LC connector of Patch cord in to the LC port of SFP transceiver.
After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
After all cables are correctly connected, check the indicators status and do trouble shooting accordingly.

Backplane bandwidth:110Gbps
Max Packet Length: 10K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses

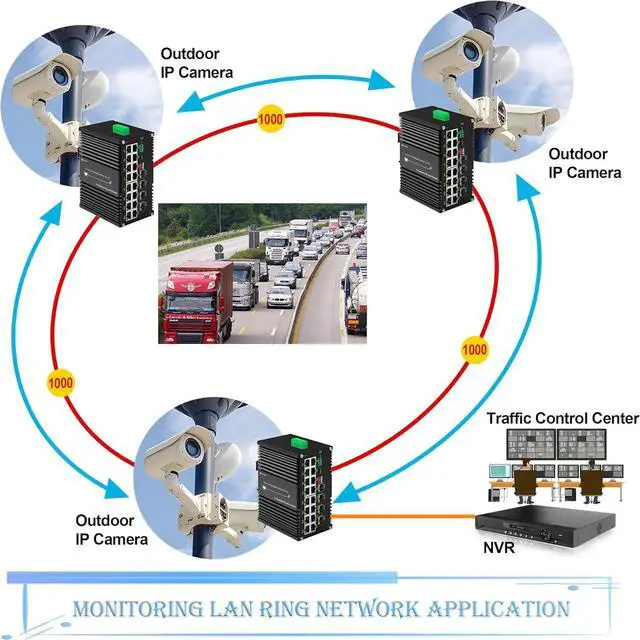

Redundancy Protocols (STP/RSTP/MSTP/ERPSv2, Link Aggregation)
VLAN (IEEE 802.1Q 4K VLANsupport QINQ, Double VLAN)

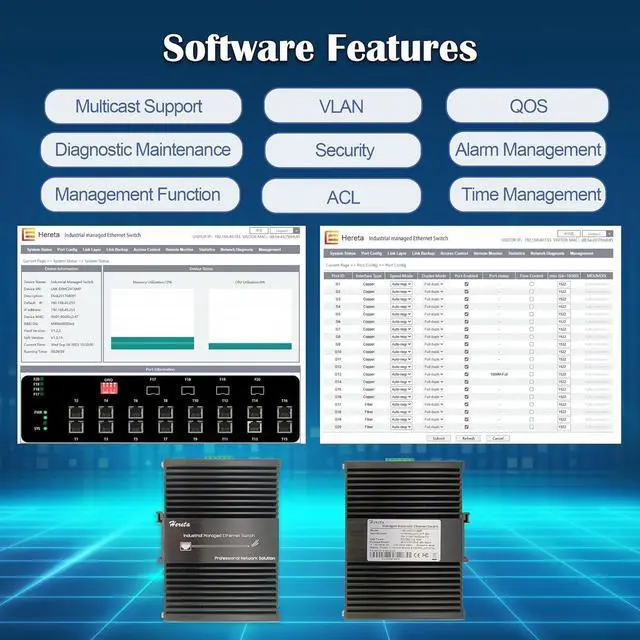

Multicast/QOS/ACL/SNTP/PoE Management/Security
Diagnostic Maintenance (Port mirroring, Syslog, Ping)
Advance Layer 2+ Features (IPv4/IPv6 Management/ Static Route)
Ethernet Standards: IEEE802.3 10BASE-T/ IEEE802.3u 100BASE-TX/FX/ IEEE802.3ab 1000BASE-T/ IEEE802.3z 1000BASE-X/ IEEE802.3p QoS/ IEEE802.1d Spanning Tree
