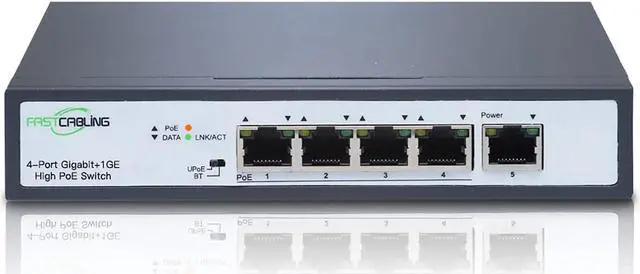

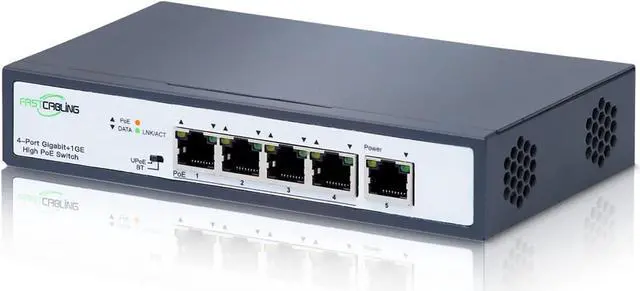

5-Port 90W 802.3bt PoE++ Switch, IEEE802.3 at/bt, High Power Out Ports, Gigabit Ethernet, 180W Power Budget, Unmanaged Switch, Plug-and-Play, Desktop/Wall Mount
- 802.3 bt PoE++: Provide FOUR 90W max PoE out ports, perfect for power-hungry applications, such as PTZ IP cameras; And it also flexibly fit IP cameras, VoIP phones, etc; supplies 180W total power budget
- Small-to-Medium Scale PoE+ Network Setup: Provide 4 x 10/100/1000 Mbps PoE+/PoE++ ports for homes or businesses to build PoE networking systems efficiently with high-speed Ethernet network speed
- Simple and Fast Deployment: The switch has a built-in power source; plug-and-play; PoE-enabled, to eliminate extra AC outlet next to the PDs; intuitive LED indicators are offered; desktop/wall mountable
- Reliable Integration to the Existing System: Transparent to the network protocols and Mac address, the 90W PoE++ switch does no harm to the original data
- Enhanced Protections: Adopts ±4kv surge protection and ±4kV ESD protection to reduce power surges damage, intelligent PoE detection is applied to the PDs, the high safety level is available
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
With a total power budget of up to 180 watts, this IEEE 802.3bt PoE switch can supply up to 90W for two PoE++ devices like PoE lighting, digital signage, etc., and power two other PoE+ devices such as PTZ cameras.
Equipped with a rugged metal enclosure, this IEEE 802.3bt PoE++ switch supports carrier-grade ±4KV ESD and surge protection. Also, its intelligent power management helps to ensure the power supply of high priority ports and protect the device from power overload.
Equipped with a built-in power source, plug-and-play installation, no configuration required. Desktop/wall mount design meets your needs in any environment.
Dimensions168*93*32mmWeight1.0kgNetworking Interfaces(4) 10/100/1000 Mbps PoEPorts(1) 1 Gbps dedicated RJ45 Ethernet PortsPoE StandardIEEE 802.3af, IEEE 802.3at, IEEE802.3bt, Legacy Bt, UPoESwitching Capacity10GbpsPower Method100-240VAC/50-60 Hz, Universal InputPower SupplyExternal 185WPoE budget180WLEDs Per PortPWR, LNK/ACT, PoESurge ProtectionDifferent mode ±2 kv, Common mode±4kvOperating Temperature-0°C~40°CCertificationsCE, FCC, IC IEEE 802.3bt PoE++ Solution Sturdy and Rugged Design Quick and Flexible Installation Technical Specifications
Equipped with a rugged metal enclosure, this IEEE 802.3bt PoE++ switch supports carrier-grade ±4KV ESD and surge protection. Also, its intelligent power management helps to ensure the power supply of high priority ports and protect the device from power overload.
Equipped with a built-in power source, plug-and-play installation, no configuration required. Desktop/wall mount design meets your needs in any environment.
Dimensions168*93*32mmWeight1.0kgNetworking Interfaces(4) 10/100/1000 Mbps PoEPorts(1) 1 Gbps dedicated RJ45 Ethernet PortsPoE StandardIEEE 802.3af, IEEE 802.3at, IEEE802.3bt, Legacy Bt, UPoESwitching Capacity10GbpsPower Method100-240VAC/50-60 Hz, Universal InputPower SupplyExternal 185WPoE budget180WLEDs Per PortPWR, LNK/ACT, PoESurge ProtectionDifferent mode ±2 kv, Common mode±4kvOperating Temperature-0°C~40°CCertificationsCE, FCC, IC IEEE 802.3bt PoE++ Solution Sturdy and Rugged Design Quick and Flexible Installation Technical Specifications
