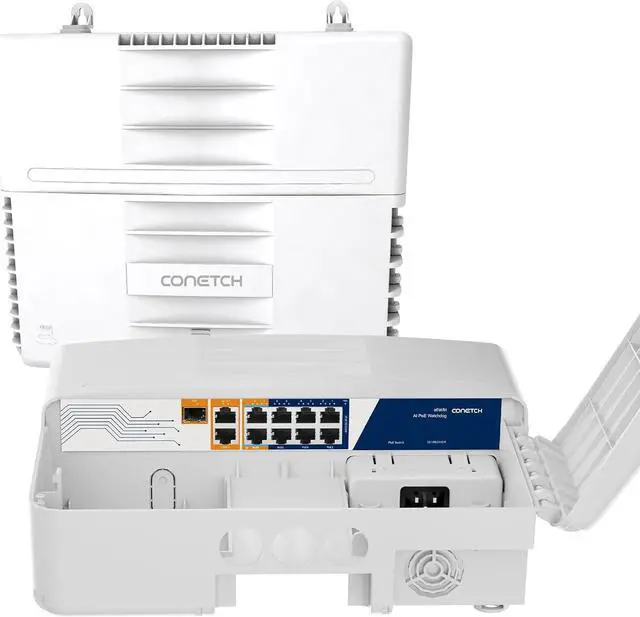

11 Port Outdoor PoE Switch with 2 Uplink & 1 SFP, IP65 Waterproof, 100/1000Mbps Mixed, Unmanaged, 120W Built-in Power, IEEE802.3af/at/bt, 6KV Lightning Protection, Plug & Play, All-in-one Box

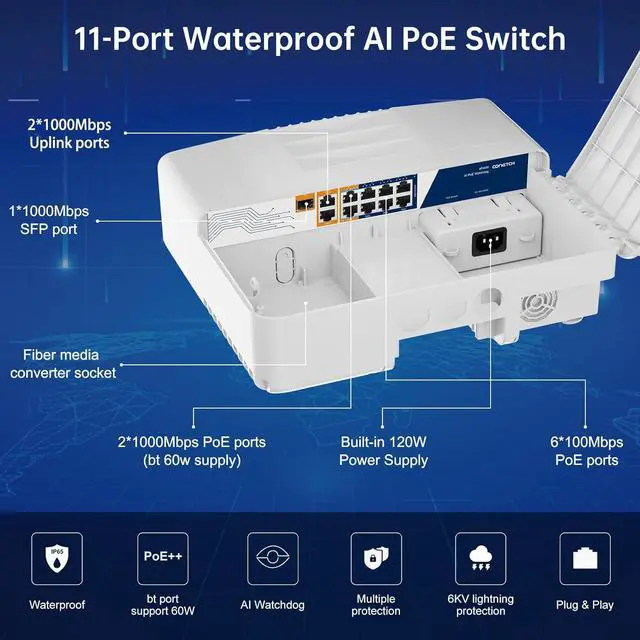

- 11 Port Outdoor PoE Switch: 6 x ( PoE+ ) 10/100 Mbps RJ45 ports, 2 x (PoE++) 10/100/1000 Mbps RJ45 ports, 2 Gigabit Uplink Ports, 1 Gigabit SFP Port, 120W built-in power supply, Input Voltage Range 90~240V

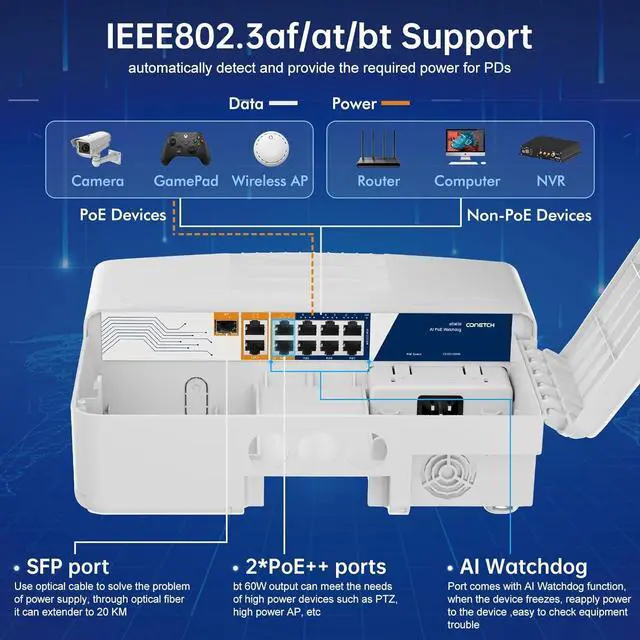

- Power Over Ethernet: 1-6 PoE+ (802.3af/at) ports providing up to 30W per port and 7-8 PoE++ (802.3af/at/bt) ports providing up to 60W per port, supports total PoE budget up to 120W Please note: If your device support 24V passive PoE, not support IEEE802.3af/at/bt 48V PoE, it will not be compatible
- AI Watchdog Function: PoE 1~8 ports Support AI Watchdog, When the data or power transmission between the poe port and the terminal device is abnormal, the corresponding poe port of the device will automatically detect the problem and restart the connection.
- IP65 Waterproof: Industrial housing design, integrated top cover, PC/ABS high polymer alloy material, extraordinary toughness, waterproof indoor and outdoor full-time, Flexibility to mount anywhere you need it.
- Stable and Security
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PortsPoE (1~6): 10/100Mbps PoE ports (RJ45);
PoE (7~8): 10/100/1000Mbps PoE ports (RJ45) Support bt 60W
High Power;
LAN(1~2): 10/100/1000Mbps uplink ports (RJ45);
SFP: 10/100/1000Mbps SFP portTransmission Rate2000Mbps Full Duplex; 10 or 100 or 1000
Mbps Half DuplexPerformance SpecificationBandwidth: 11.2G bps, Network
Latency (10 to 1000Mbps): 16s (use the 64byte package size), MAC
address table: 8K, The Frame Filter &
Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port; 1488000pps the most for 1000M portNetworking StandardIEEE 802.3 i 10BASE-T/IEEE 802.3 u 100BASE-TX, IEEE 802.3 ab 1000BASE-T, IEEE 802.3 x Flow Control, IEEE 802.3 af/at/bt Power over
EthernetPower SupportPower Input: AC 90~240V
Total120WAI Watchdog: Port 1~8
Power Output: PoE1~6
Port: 1/2(+52V), 3/6 (GND) 30W
PoE 7~8 Port: 1245(+53V), 3678 (GND) Compatible1/2(+52V), 3/6 (GND) 60WProtection
LevelLightning Protection: 6KV
ESD Protection: 8KVWorking
EnvironmentOperating Temperature: -30°C~60°CStorage
Temperature: -40°C~70°COperating
Humidity: 10%~90%Non-condensing
Storage Humidity: 5%~90%
Non-condensingPhysical SpecificationsSize (L*W*H): 12.2 * 10.2 * 3.9 inch This ItemCONETCH 11 Port Outdoor PoE Switch with 2 Uplink & 1 SFP, IP65 Waterproof, 100/1000Mbps Mixed, Unmanaged, 120W Built-in Power, IEEE 802.3 af/at/bt, 6KV Lightning Protection, Plug & Play, All-in-one BoxRecommendationsMokerLink 8 Port PoE Switch with 2 Gigabit Uplink, 802.3 af/at PoE+ 100Mbps, 120W Built-in Power, Extend to 250Meter, Metal Plug & Play 8 Port Gigabit PoE Switch with 2 Gigabit Uplink, 802.3 af/at Compliant, 120W Built-in Power, Unmanaged Metal Plug and Play CONETCH 3 Port Outdoor PoE Extender | 1 in 2 Out | 1 PoE+Port, 1 PoE++ 60W Port, 1 Uplink Port | IEEE 802.3 af/at/bt | IP65 Waterproof | 10/100 Mbps Adaptive | AI Watchdog | Plug & Play YuanLey 8-Port PoE Switch Gigabit- Waterproof Outdoor Ethernet Unmanaged Network Switch 1000Mbps, 120W Built-in Power, IEEE 802.3 af/at Support and Plug & Play, Ideal for Outdoor Use CONETCH 10 Port Gigabit PoE Switch with 8 PoE+ Ports, 2 Uplink, Unmanaged, IEEE 802.3 af/at + 2 High Power PoE Ports, 120W Built-in Power, Desktop, Fanless, 10/100/1000 Mbps, PoE++ Network Switch
PoE (7~8): 10/100/1000Mbps PoE ports (RJ45) Support bt 60W
High Power;
LAN(1~2): 10/100/1000Mbps uplink ports (RJ45);
SFP: 10/100/1000Mbps SFP portTransmission Rate2000Mbps Full Duplex; 10 or 100 or 1000
Mbps Half DuplexPerformance SpecificationBandwidth: 11.2G bps, Network
Latency (10 to 1000Mbps): 16s (use the 64byte package size), MAC
address table: 8K, The Frame Filter &
Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port; 1488000pps the most for 1000M portNetworking StandardIEEE 802.3 i 10BASE-T/IEEE 802.3 u 100BASE-TX, IEEE 802.3 ab 1000BASE-T, IEEE 802.3 x Flow Control, IEEE 802.3 af/at/bt Power over
EthernetPower SupportPower Input: AC 90~240V
Total120WAI Watchdog: Port 1~8
Power Output: PoE1~6
Port: 1/2(+52V), 3/6 (GND) 30W
PoE 7~8 Port: 1245(+53V), 3678 (GND) Compatible1/2(+52V), 3/6 (GND) 60WProtection
LevelLightning Protection: 6KV
ESD Protection: 8KVWorking
EnvironmentOperating Temperature: -30°C~60°CStorage
Temperature: -40°C~70°COperating
Humidity: 10%~90%Non-condensing
Storage Humidity: 5%~90%
Non-condensingPhysical SpecificationsSize (L*W*H): 12.2 * 10.2 * 3.9 inch This ItemCONETCH 11 Port Outdoor PoE Switch with 2 Uplink & 1 SFP, IP65 Waterproof, 100/1000Mbps Mixed, Unmanaged, 120W Built-in Power, IEEE 802.3 af/at/bt, 6KV Lightning Protection, Plug & Play, All-in-one BoxRecommendationsMokerLink 8 Port PoE Switch with 2 Gigabit Uplink, 802.3 af/at PoE+ 100Mbps, 120W Built-in Power, Extend to 250Meter, Metal Plug & Play 8 Port Gigabit PoE Switch with 2 Gigabit Uplink, 802.3 af/at Compliant, 120W Built-in Power, Unmanaged Metal Plug and Play CONETCH 3 Port Outdoor PoE Extender | 1 in 2 Out | 1 PoE+Port, 1 PoE++ 60W Port, 1 Uplink Port | IEEE 802.3 af/at/bt | IP65 Waterproof | 10/100 Mbps Adaptive | AI Watchdog | Plug & Play YuanLey 8-Port PoE Switch Gigabit- Waterproof Outdoor Ethernet Unmanaged Network Switch 1000Mbps, 120W Built-in Power, IEEE 802.3 af/at Support and Plug & Play, Ideal for Outdoor Use CONETCH 10 Port Gigabit PoE Switch with 8 PoE+ Ports, 2 Uplink, Unmanaged, IEEE 802.3 af/at + 2 High Power PoE Ports, 120W Built-in Power, Desktop, Fanless, 10/100/1000 Mbps, PoE++ Network Switch
