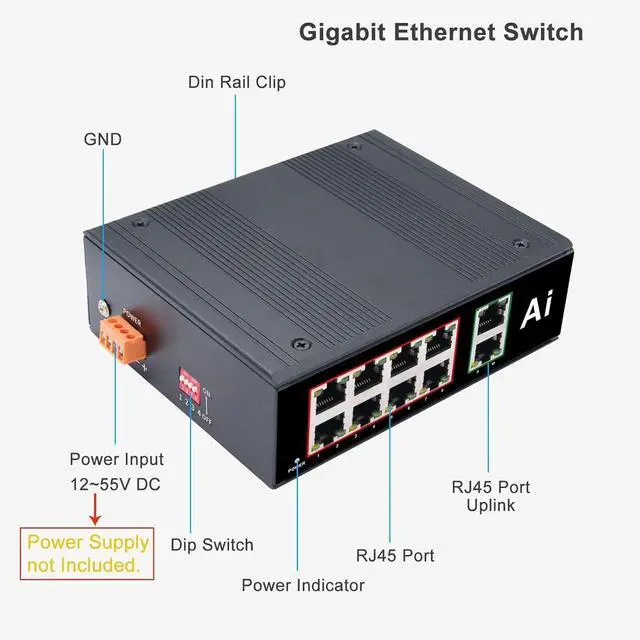

Industrial 10 Ports Gigabit Ethernet Switch Hardened 10 Port RJ45 10/100/1000Mbps Network Switch Outdoor Din Rail Ethernet Switch (-40 to 176 ºF) Din-Rail Mount Ethernet Hub

The 10 Ports Ethernet (PoE) Switch features a high-strength IP40 protective casing, industrial-grade EMC design, and supports redundant power supply to enhance the reliability of communication networks. It utilizes a four-level DIP switch for LPP ring network protection, BSP broadcast storm suppression, Port 1 Extension, VLAN port isolation, and AI watchdog. The Industrial Din rail Mount Switch using a standard 35mm DIN rail, making it widely applicable in various fields such as smart grids, rail transportation, integrated pipe corridors, intelligent transportation, smart cities, mining and metallurgy, oil and petrochemicals, new energy, smart factories, ships, defense industry, and building security, providing favorable protection for industrial communication.
When you turn on the DIP switch 1, the Ethernet switch will supports Ring Network and Broadcast storm suppression. Ring network will improve network reliability. No need managed switch for Ring application.
When you turn on the DIP switch 2, the Ethernet (PoE) switch's port 1 can extend to 250 meters. Meanwhile port 1 rate forced to10Mbps. This function can meet long transmission distance requirement.
When you turn on the DIP switch 3, the Industrial Ethernet (PoE) switch's 1~8 ports will isolated from each other. This function can improve network security and control data flow direction.
When you turn on the DIP switch 4, the Din Rail Ethernet Switch will support watchdog function. Ifany port didn't detect data transimission, the port will reboot to reconnect.
The Din-rail Gigabit Switch use industrial grade components
The Ethernet Switch use IP40 rugged high-strength aluminum case.
The Ethernet Switch can work at wide range temperature -40°C to 80°C (-40°F to 176°F).
The Inustrial gigabit Switch suppots din rail mount.
The Industrial Ethernet Switch Supports 6Kv Surge Protection.
The Industrial Ethernet Switch supports44~55VDC wide range redundant power input.
PoE Optional: IEEE802.3af/at, Power pin: 1/2+, 3/6-.

Ethernet Port8xRJ45Rate10/100/1000MbpsOperating modeStore and forwardUplink2xRJ45 or 2xSFPPoE StandardIEEE802.3 af/at PoE Pin12+, 36-Power Input12~55V DC (Power adapter not included)Operating temperature-40°C to 80°C (-40°F to 176°F) Industrial 10 Ports Gigabit Ethernet Switch 8 Port RJ45 PoE Network Switch Outdoor Din Rail PoE Ethernet Switch THe 10 Ports Din-rail Mount Ethernet Switch Come with 4P Dip Switch for Advanced Function, Suitable for More Application Scenarios. Dip Switch 1: LPP&BSP Dip Switch 2: Port 1 Extension Dip Switch 3: Port Isolation Dip Switch 4: AI Watchdog The 8+2 Switch is Industrial Grade Quality, suitable for harsh environment application. Industrial Etehrnet Switch Specifications:
