MokerLink Indoor/Outdoor Industrial Enclosure with Integrated 8 Port Gigabit PoE+, 2 Port 1000BASE SFP Switch, IEEE802.3af/at POE 246W Power Supply, Plug and Play, Metal IP65 Case, -40 to 158°F

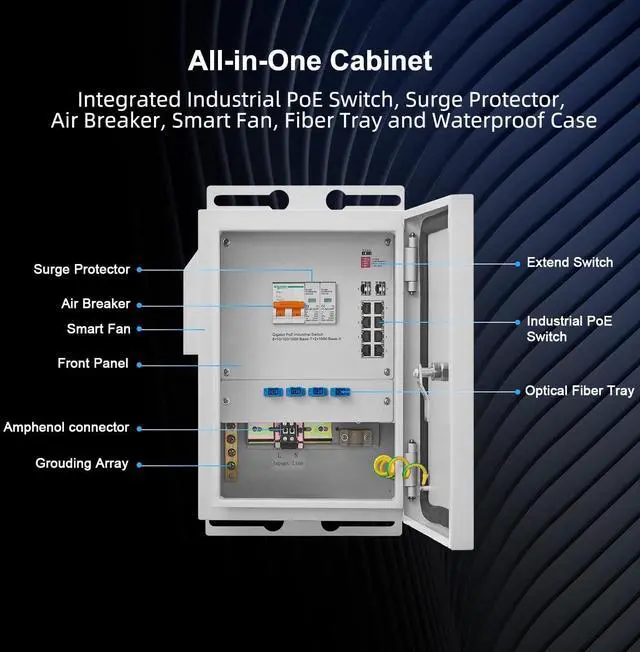

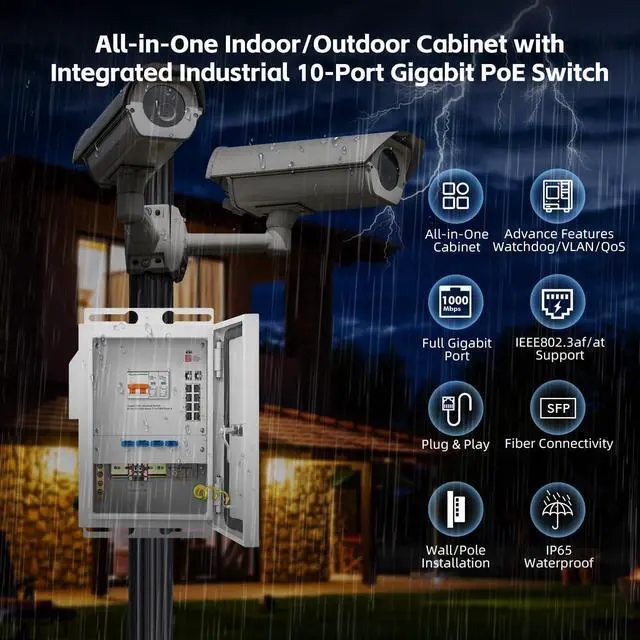

BOX-G082GSP is a indoor/outdoor PoE Switch Cabinet with 10-Port industrial switch, Optical Fiber Tray, power supply, Surge Protector, Air Breaker and a Smart Fan, all in a single secure cabinet enclosure. Wide range of working environment temperature, high protection level and other technologies.

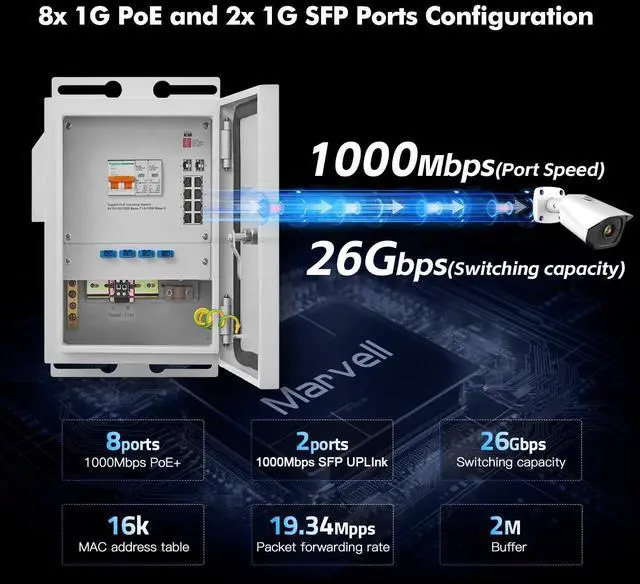

This model is available with 8x 1G PoE ports and 2x 1G SFP ports. Itoffers the forwarding capacity to simultaneously process traffic on allports at line rate without any packet loss.

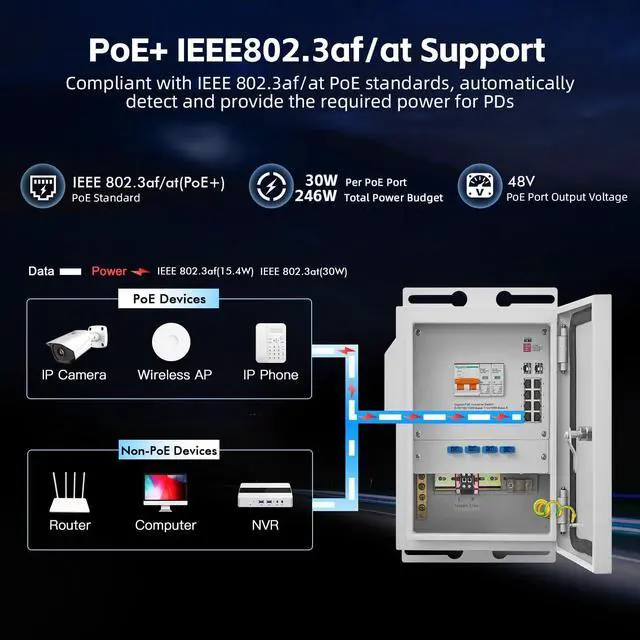

The PoE port 1-8 support IEEE802.3af and IEEE802.3at standards,with a maximum output power consumption of 30W per port. The totalpower consumption is 246W, Suitable for powering high-power devices.

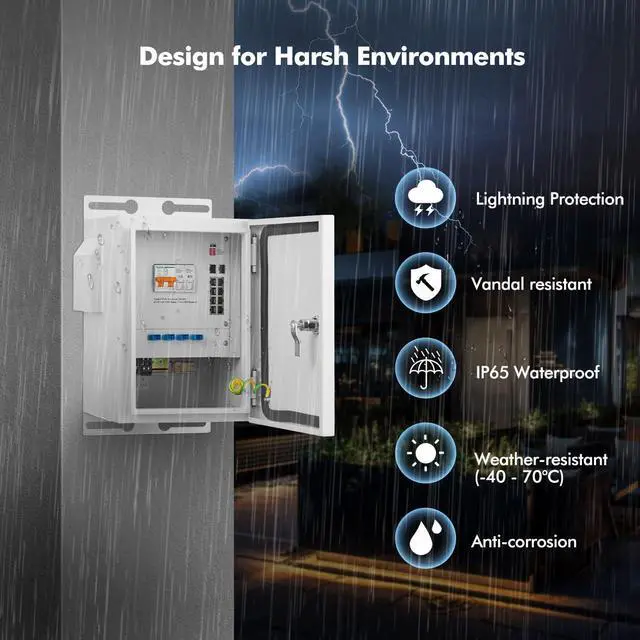

it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety ofindustrial networks. lt can better meet the deployment requirements of rail transit, outdoormonitoring and other harsh environments.
Automatic connectivity to your PCs or PoE devices. No need for an IT expert.

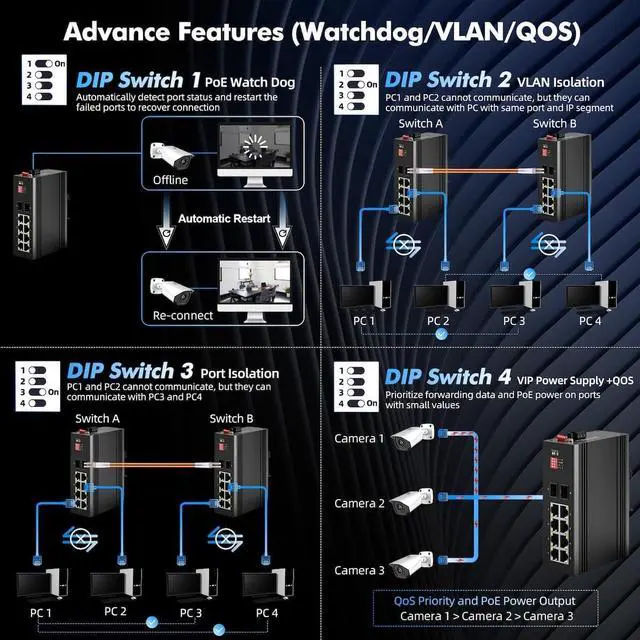

Adopts the innovative PoE Watchdog. It enables the switch to automatically detect port status and restart the failed ports torecover connection.
Supports hardware QoS. This ensures data and PoE priority for video/voice traffic for reduced package loss, lower latency and jitter onthe network.
PC1 and PC2 cannot communicate, but they can
communicate with PC with same port and IP segment
PC1 and PC2 cannot communicate, but they can
communicate with PC3 and PC4
Ethernet Port2*1000 Base-X + 8*10/100/1000 Base-TLED IndicatorsPWROPT, NMCALMDIP Switch1-PoE Watch Dog, 2-VLAN Isolation, 3-Port Isolation, 4-VIP Power Supply +QOSTransmission DistanceTwisted-pair: 0-100mCAT5e,CAT6, Monomode optical fiber: 20/40/60/80/100KM, Multimode (optical) fiber: 550mElectrical SpecificationsInput voltage: AC100-240V, 50/60Hz, Total Power consumption (POE): 246W, Voltage Alarm: Support, PoE Port: 1-8 port, Pin Assignment: 1,2(+),3,6(-), PoE Protocol: 802.3af802.3at (15W/30W)Layer 2 SwitchingSwitching capacity: 26G, Packet forwarding rate:19.34 Mpps, MAC address table: 16K, Buffer: 2M, Forwarding delay <5 us, Jumbo Frame: 10K BytesEnvironmentOperating temperature: -40~+75, Storage temperature: -40~+85, Relative humidity: 5%~95% non-condensing, Thermal methods: Auto Fans Cooling, MTBF: 100,000 hoursCabinet DescriptionBOX size: 220X230X300mm, Material: High-quality galvanized sheet, thickness 1.2mm box mounting ears thickness 1.5mm, Weight Net weight: 7.25KG, Gross weight: 8.25KG, Box lock: Triangle lock, Door: The door has built-in waterproof rubber strips and built-in reinforcing ribs; Bottom of the box: The diameter of the cable entry hole at the bottom ofthe box is 50mm, and there is an air inlet hole at the bottom of the box (insect-proof net welded inside); CabinetComponentsFan:AC220V with temperature control, 3000±10% RFM, air volume 90CFM, 92*92*25mm, line length 300mm; Optical fiber box: 4-port SC fiber flange, with 8-core fiber box; Air breaker: It has short-circuit protection, overload protection and isolation functions and has thermal-magnetic tripping characteristics C-shaped curve (5ln~10ln); Installation:Pole /Wall installationLightning protectorRated operating voltage 220V; Maximum continuous operating voltage: 385V; Rated discharge current (8/20 s): 20KA; Maximum discharge current (8/20 s): 40KA;Limit voltage 1.8KV; Indication: Green: Normal Red: FailureEMC & Ingress ProtectionIP Level: IP65; Surge protection of Power: IEC 61000-4-5 Level X8KV/6KV); Surge protection of Ethernet port: IEC 61000-4-5 Level X8KV/6KV); RS: IEC 61000-4-3 Level 310V/m); EFI: IEC 61000-4-4 Level 31V/2V); CS: IEC 61000-4-6 Level 310V/m); PFMF: IEC 61000-4-8 Level 430A/m); DIP: IEC 61000-4-11 Level 3 10V); ESD: IEC 61000-4-2 Level 48K/15K) This ItemMokerLink Indoor/Outdoor Industrial Enclosure with Integrated 8 Port Gigabit PoE+, 2 Port 1000BASE SFP Switch, IEEE802.3af/at P
