10-Port Gigabit Mini Unmanaged Ethernet Switch, 8 RJ45 Ports + 2 Gigabit Uplink Ports, Compatible with 10/100/1000Mbps, Din-Rail or Wall Mount, 20Gbps Backplane Bandwidth Traffic Optimization
- 10-Port Ethernet Switch ENIANHUA unmanaged network switch includes 10 x 10/100/1000BASE-T RJ45 ports, supporting Auto Negotiation and Auto MDI/MDIX and providing fast and reliable network connectivity.
- Industrial Grade Quality The Hardened Mini Gigabit Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
- 9~56V DC Power Input Our Network Switch supports redundant backup dual 9~56VDC wide voltage input, making the power supply more flexible. Power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V/1A power supply and above are recommended. (Power Supply not Included)
- Redundant Power InputThe industrial network switch with DC12-48V wide voltage input supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work, high re
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 10ports switch is a good choice for an economical solution for industrial Ethernet connections.
The industrial mini network switch has 10 Gigabit RJ45 ports and offers both IEEE802.3x traffic optimization and IEEE802.3az energy-saving functions, which ensure stable and efficient network transmission.
9-56V DC Redundant Power Supply: The ENIANHUA switch support 9~56V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.
Adaptive Power Input: 9-56V DC.
Support Redundant power input.
Support hot plug and hot swap.
Power supply of 12V/0.5A and above can be selected within the input voltage range of 9~56V. However, for the stability of the work, 12V/1A power supply and above are recommended. (Power Supply not Included)

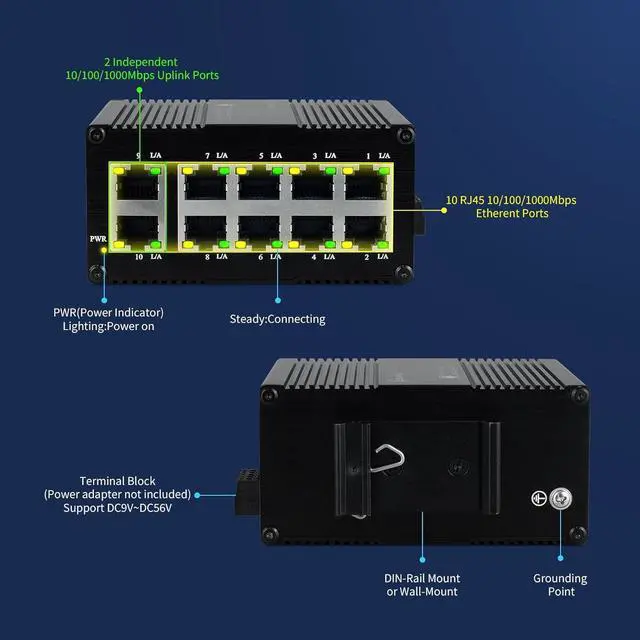

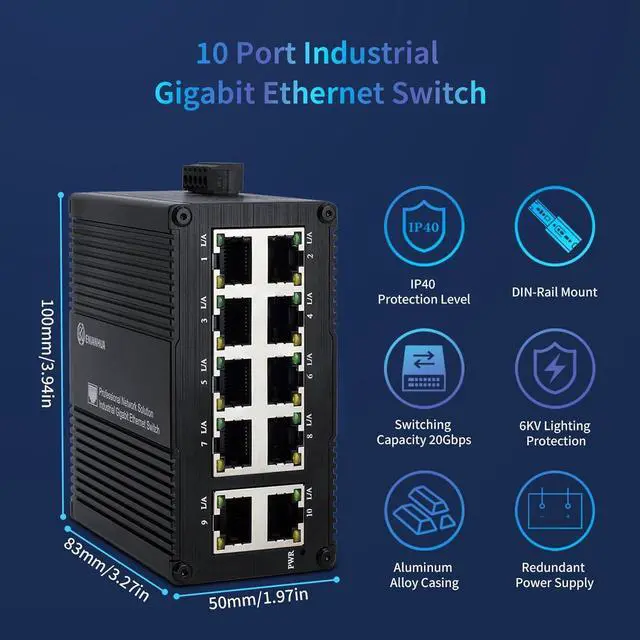

The micro-new design and extremely compact size break away from the traditional designs on the market. Supports DIN-Rail and Wall-mount installation
Despite its small size, the switch offers excellent industrial protection and a sophisticated design.
Compared to conventional metal housings, the aluminum alloy housing offers better thermal conductivity and a longer service life.

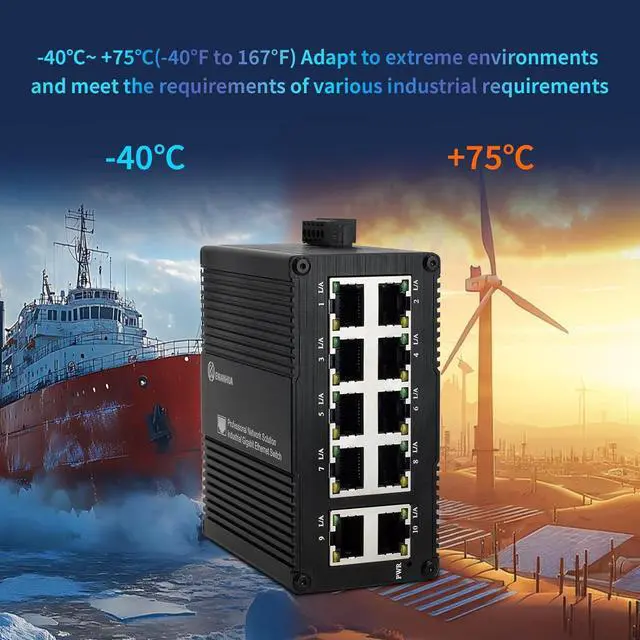

The switch operates reliably at temperatures from -40°C to +75°C (-40°F to 167°F) and has an IP40 protection rating.
It also supports dual power supply to ensure stable performance even in harsh industrial environments.
The 20Gbps backplane bandwidth ensures that all RJ45 ports operate at full line speed, with high reliability and stable performance.
The compact size allows the switch to be easily stored in a case or even a laptop backpack, which makes it ideal for mobile use and on-site speed tests.

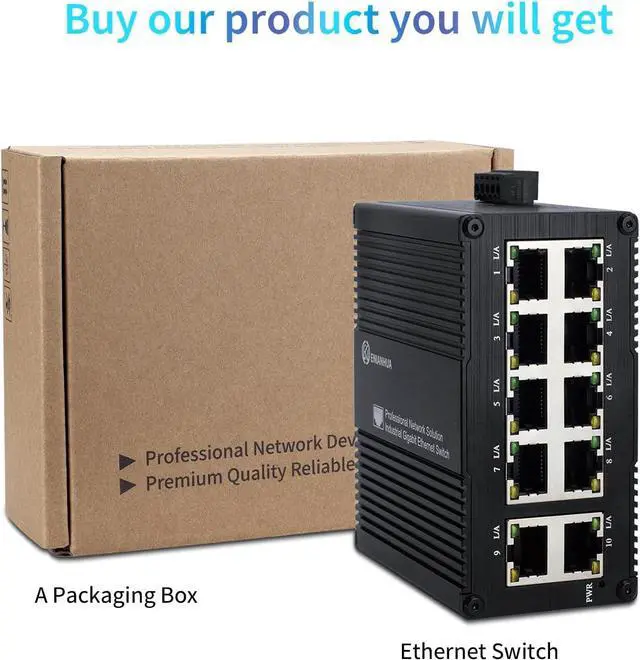

Package Contents:
-ENIANHUA Switch x1
-User Manual x1
-Wall-Mount Kit x1
