Industrial 10-Port Gigabit PoE Switch, 1248V DC Input with Built-in Voltage Booster, 8-Port 802.3at 30W + 2 Uplink, 120W Output, DIN-Rail Mountable
- [*+*] It has 8 PoE+ 10/100/1000 Mbps RJ45 ports, 2 Gigabit uplink + 2 SFP ports. SFP Uplink ports can provide more bandwidth and connect different devices such as routers, NVRs, etc.

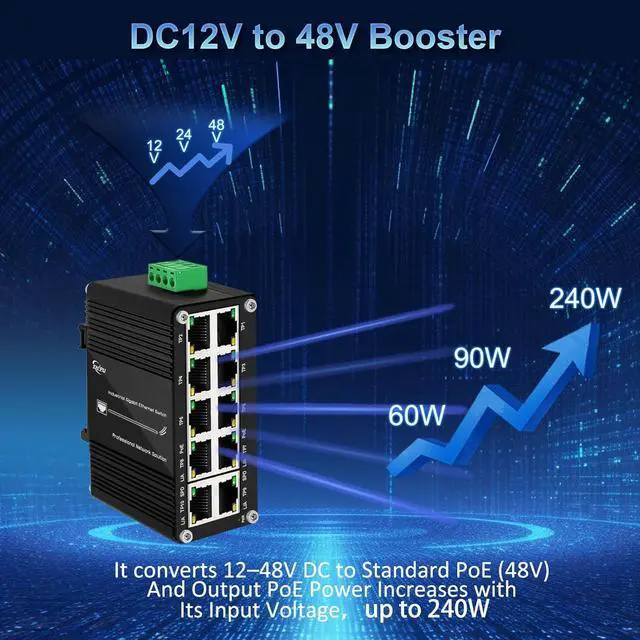

- [ ] The Switch supports 12~48V wide voltage DC input, and it has power booster function. The power can up to 240-watt PoE budget (48VDC), 90-watt (24VDC), 60-watt (12VDC).

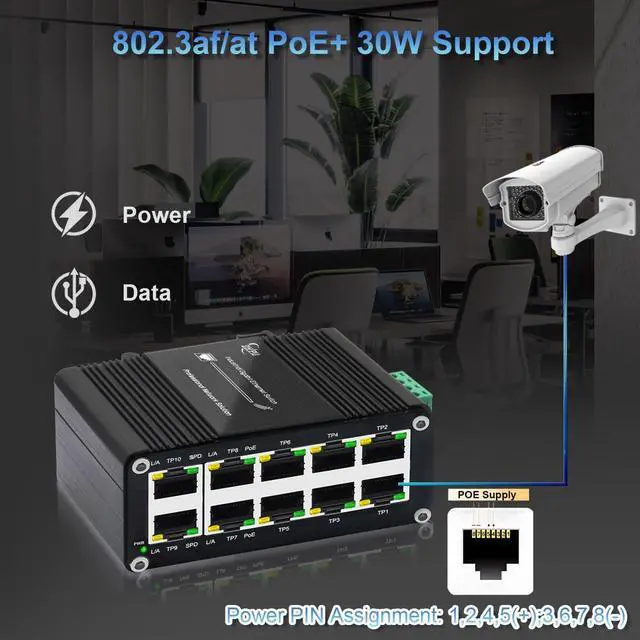

- [./ + ]The Ethernet Switch supports IEEE802.3af/at PoE+(30W), meeting the power supply requirements of most devices.

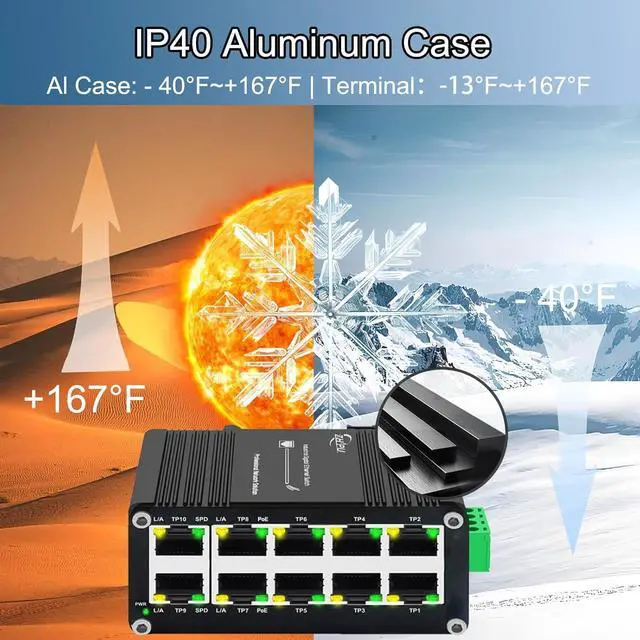

- [ ]The switch has industrial 6KV lighting protection and can work at wide range temperature -40°C to 80°C (-40°F to 176°F) by Using industrial IP40 aluminum housing.

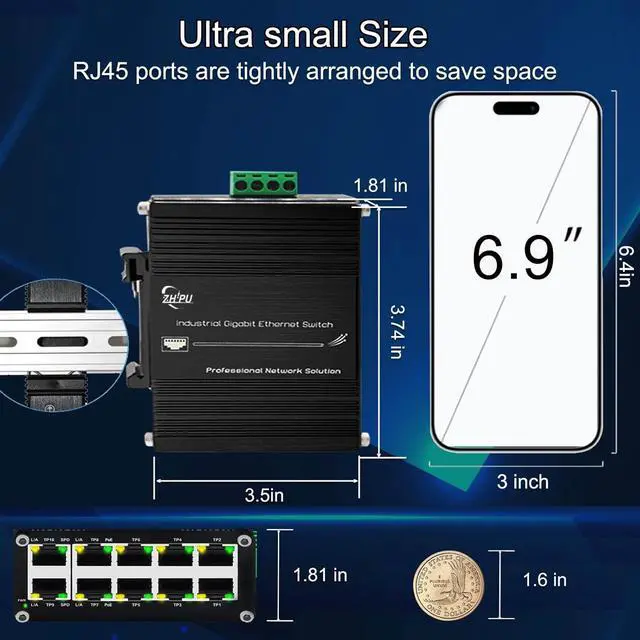

- [ ]Its only 3.74 x 3.5 x 1.81in, the RJ45 ports are tightly arranged to save space.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Industrial Ethernet Switch is Gigabit PoE 8 Port PoE Switch with DC12V to 48V Voltage Booster. It also supports IEEE 802.3af/at, Auto-negotiation, full Duplex or half Duplex, Auto-negotiation. With its reliable design and ease of use, the product is a great choice for you to transfer data and information quickly and supply poe power to connected devices.
10-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
2*uplink port
IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W)
Supports 802.3x Flow control
Supports Full/Half-duplex, Auto-negotiation10K Bytes Jumbo Frame; IEEE 802.3az Energy Efficient Ethernet (EEE)
12~48V DC wide range power input
Voltage booster function
IP40 Aluminum Case and Supports DIN-Rail installation; -40°C to 80°C (-40°F to 176°F) operating temperature
Connector10 x RJ45Switch Fabric20Gbps/non-blockingPoE StandardIEEE802.3af/atInput Power(PoE)12~48VDC, Redundant Power (4-pin Terminal Block)Power PIN Assignment1,2,4,5(+);3,6,7,8(-)Packet Buffer1MbitsPacket Length10KbytesMAC Address Table8KCertificationCE,FCC Packages:
1* 10-port PoE Ethernet switch
1* 4-pin terminal block
1* User Manual
Previous page
Next page 1* 10-port PoE Ethernet switch,1*4-pin terminal block,1* User Manual
Features Wide Applications Specifications Hot-Sale Products Industrial-Grade Protection Excellent Quality
10-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
2*uplink port
IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W)
Supports 802.3x Flow control
Supports Full/Half-duplex, Auto-negotiation10K Bytes Jumbo Frame; IEEE 802.3az Energy Efficient Ethernet (EEE)
12~48V DC wide range power input
Voltage booster function
IP40 Aluminum Case and Supports DIN-Rail installation; -40°C to 80°C (-40°F to 176°F) operating temperature
Connector10 x RJ45Switch Fabric20Gbps/non-blockingPoE StandardIEEE802.3af/atInput Power(PoE)12~48VDC, Redundant Power (4-pin Terminal Block)Power PIN Assignment1,2,4,5(+);3,6,7,8(-)Packet Buffer1MbitsPacket Length10KbytesMAC Address Table8KCertificationCE,FCC Packages:
1* 10-port PoE Ethernet switch
1* 4-pin terminal block
1* User Manual
Previous page
Next page 1* 10-port PoE Ethernet switch,1*4-pin terminal block,1* User Manual
Features Wide Applications Specifications Hot-Sale Products Industrial-Grade Protection Excellent Quality
