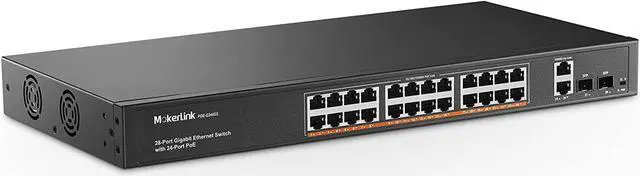

MokerLink 24 Port Gigabit PoE Switch, 2 Gigabit Ethernet Uplink, 2 Gigabit SFP, 400W IEEE802.3af/at, Rackmount Unmanaged Plug and Play Network Switch

Previous page
Next page 28-port gigabit PoE switch with 24 port gigabit PoE + 2 port gigabit RJ45 uplink + 2 port gigabit SFP uplink, using high-quality high-speed network IC and the most stable PoE chip, PoE port meets IEEE802.3af/at standard, The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af/IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

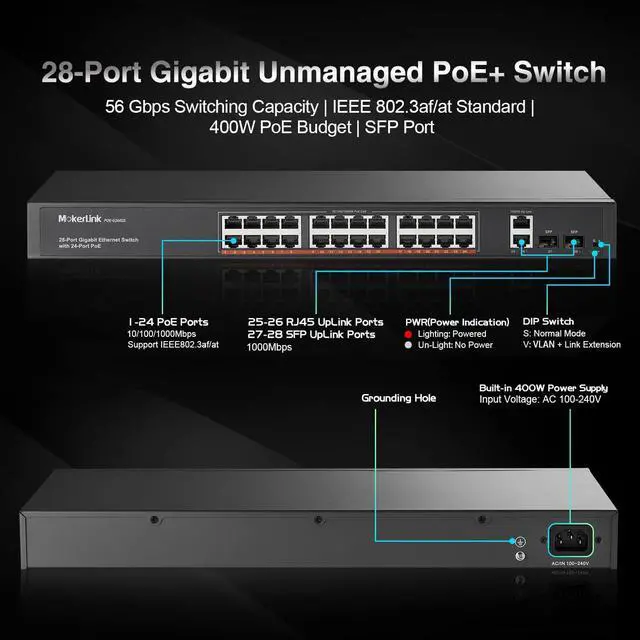

24* 10/100/1000M PoE Ports + 2* Gigabit RJ45 Uplink Port + 2* Gigabit SFP Uplink Port
Support IEEE802.3IEEE802.3uIEEE802.3xIEEE802.3abIEEE802.3z
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4W)
Ethernet port supports 10/100/1000Mbps adaptive and PoE functions
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
Support port auto flip (Auto MDI/MDIX)
All ports support wire-speed switching
Automatically supplied to adaptive devices
1-24 port support port-based VLAN
Support 19'' 1U rack mount

MokerLink 24 port gigabit PoE switch compatible with IEEE 802.3af/at protocol, it determines and delivers the exact power supply to your devices with up to 30W power output on one PoE port. If a device not IEEE802.3af/at compliant, only network data will be transmitted through the LAN cable to avoid from being damaged by incorrect power sending.
The PoE switch uses intelligent technology to monitor in real time the status of PoE devices. Once the poe devices stops working and does not respond to the switch, the switch will automatically reboot the PoE power to reboot the PoE devices, making managment easier.
When you enable the extend mode with DIP switch(chiange to V), switch divides traffic for ports 1-24 to prevent PoE devices muliticast or broadcast storm from affecting each other.
24 port PoE switch includes 24 gigabit ports and 4 gigabit uplink port, it is use for applications that also require high data throughput due to the use of high-resolution camera. Furthermore, the devices support jumbo frames, which enables an additional increase in efficiency in networks with high data volumes.
Unique design make sure PoE switch long-term stable operation over temperature spans of -10 and +55°C.
24 port gigabit PoE switch support up-link SFP ports, The switch's port 27-28use fiber cable to connect wired network segments throughout buildings or across campuses extending beyond the limitations of Ethernet cabling.
The 24 port gigaibt poe switch fetures with cooling fan, Through the fan cooling technology, the flow rate of the fluid in the convection process increases, greatly increasing the rate of heat emission. An external device integrated into a switch to bring in forced air when natural convection is insufficient to dissipate heat.

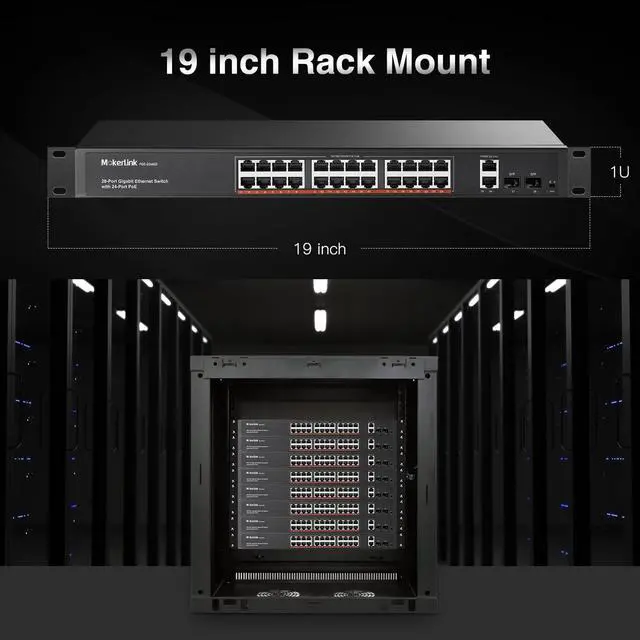

Support rack-mount in 19'' cabinet, and includes all the necessary mounting hardware in the box .Save your space and easy to manage.
The PoE switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Ports24*10/100/1000Mbps PoE Port + 2*Gigabit RJ45 Uplink Port + 2*Gigabit SFP Uplink PortLED IndicatorsPWR (power supply), ACT (Link&Data)DIP SwitchV(VLAN Mode): 1-24 port is isolated each other, but all downlink ports can communicate with uplink port 25-28, S(Default Mode):All ports communicate freelyPower InputAC 100-240V, 50/60HzTotal Power Supply400WMountingDesktop / Rack-MountFanIncluded cooling fanProduct Dimension (L*W*H)440mm*210mm*44mmWeight2.4kgSwitching Capacity56GbpsThroughput38.7MppsPacket Buffer4MMAC Address8KPoE ProtocolIEEE802.3af (15.4W) IEEE802.3at (30W)Pin Assignment1/2(+), 3/6(-)Working EnvironmentWorking Temperature-10~55°C Storage Temperature-40~85°C Working Humidity 10%~90%non-condensing Storage Temperature5%~90%non-c
