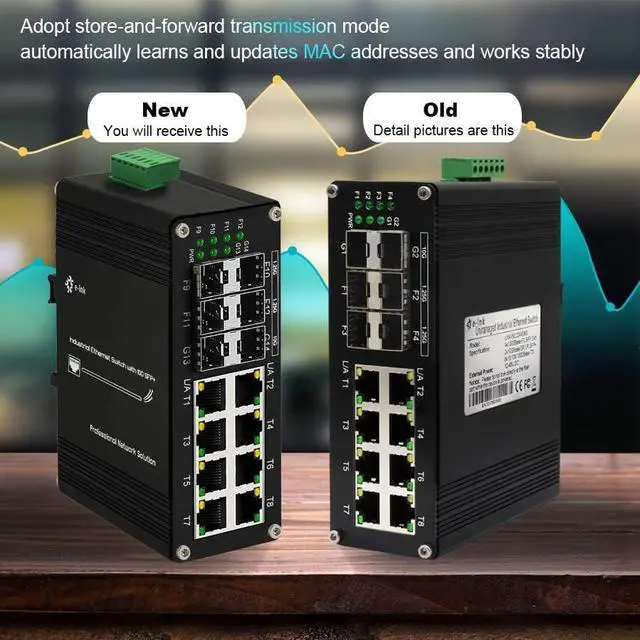

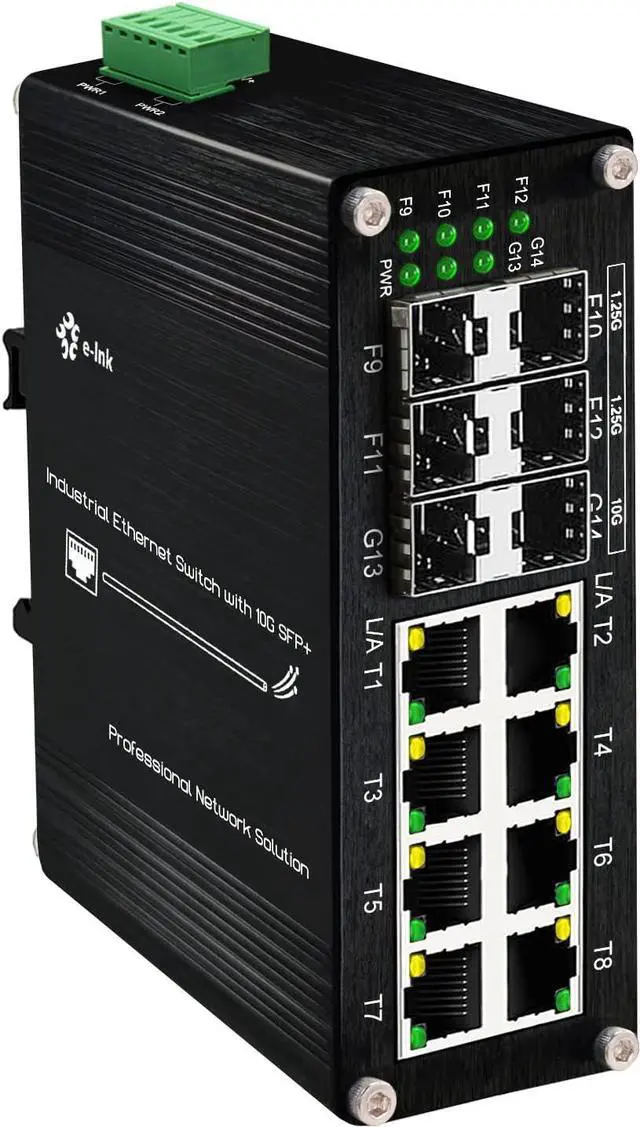

Centopto Industrial 14-Port Ethernet Switch - 8x RJ45 10/100/1000Mbps, 4x SFP, 2x 10G SFP+, DIN Rail Mount, Unmanaged, 10Gbps Fiber

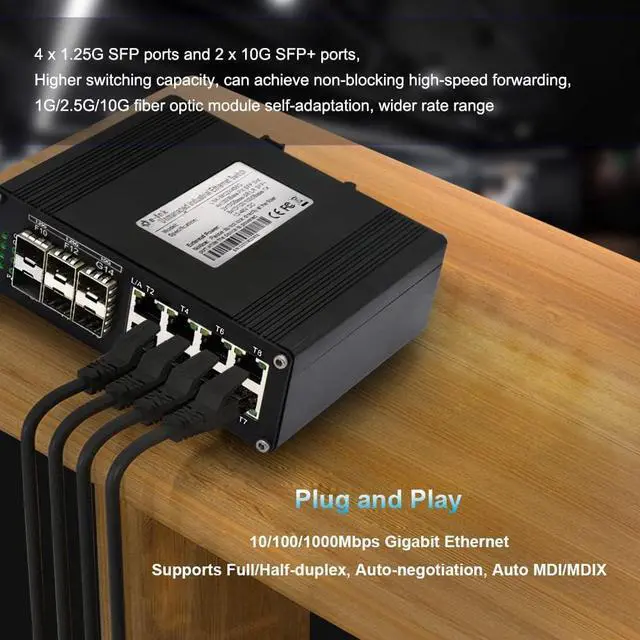

- 4 x 1.25G SFP ports and 2 x 10G SFP+ ports, Higher switching capacity, can achieve non-blocking high-speed forwarding, 1G/2.5G/10G fiber optic module self-adaptation, wider rate range
- 10/100/1000Mbps Ethernet RJ45 ports support 10/100/1000Base-T(X) full/half-duplex mode, auto-negotiation, auto MDI/MDI-X connection
- Open 1000Base-X SFP slots support standard SFP interface optical modules without encryption, such single-mode or multi-mode module. 10G Base-SR/LR ports supports SFP+ module
- Use industrial grade components and aluminum housing, fiber switch can work at wide range temperature -40°C to 80°C (-40°F to 176°F). You can use it in outdoor harsh environment
- The Ethernet fiber switch support 12~58V DC redundant power input. Wide range voltage means you have more choice. And most probably dont need extra power adapter when you have centralized DC power supply

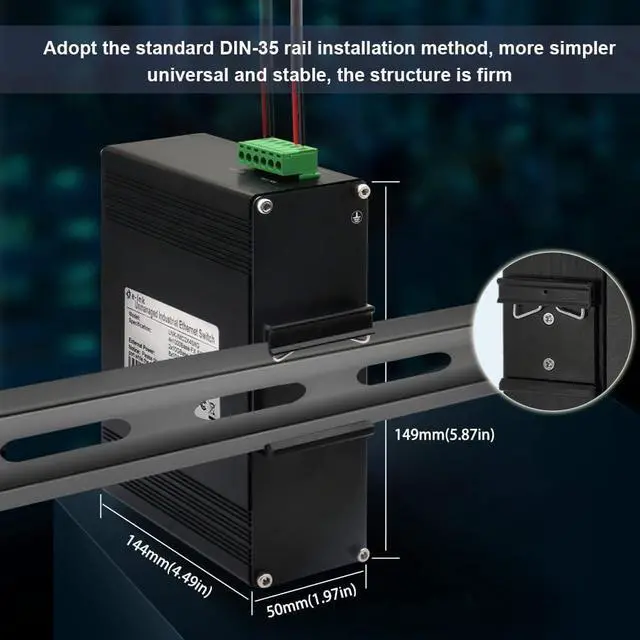

- The hardened Ethernet SFP+ switch comes with 35mm Din-rail bracket and you can easily install it on universal 35mm rack m
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

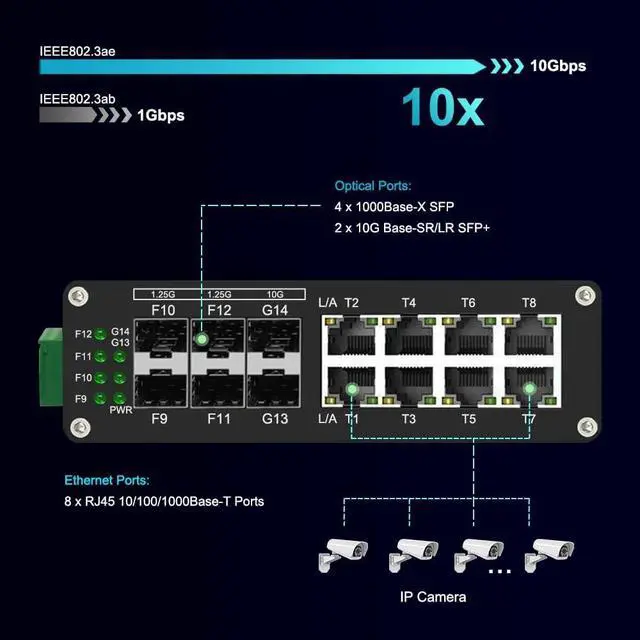

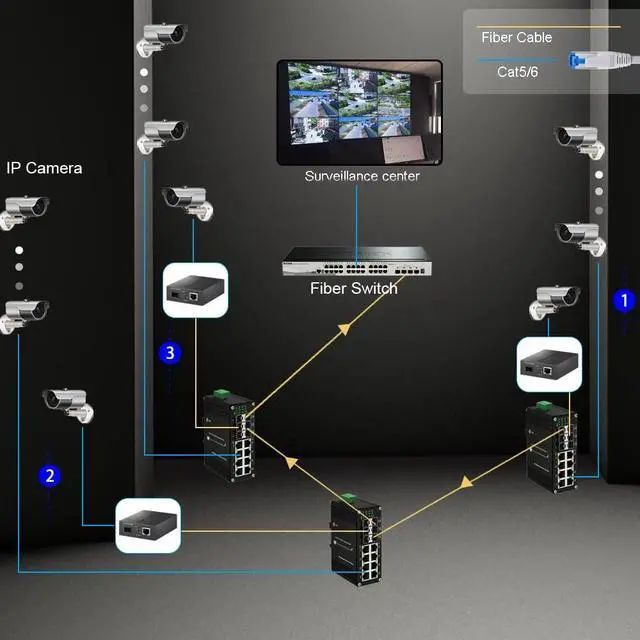

LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
12~58V DC Redundant Power Input (6-pin Terminal Block)
Open 1000Base-X SFP slots support standard SFP interface optical modules without encryption, such single-mode or multi-mode module. 10G Base-SR/LR ports supports SFP+ module
Ethernet Standards:
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX/FX; IEEE802.3ab 1000BASE-T; IEEE802.3z 1000BASE-X; IEEE802.3ae 10GBase-R
Forward & Filtering Rate:
14,880pps (10Mbps); 148,800pps (100Mbps); 1,488,000pps (1000Mbps); 1,488,000,000pps (10000Mbps)
Note SFP module is not included (need to be purchased separately).
Open wire for terminal block (power supply is to be purchased separately).
Overview
8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
12~58V DC Redundant Power Input (6-pin Terminal Block)
Open 1000Base-X SFP slots support standard SFP interface optical modules without encryption, such single-mode or multi-mode module. 10G Base-SR/LR ports supports SFP+ module
Ethernet Standards:
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX/FX; IEEE802.3ab 1000BASE-T; IEEE802.3z 1000BASE-X; IEEE802.3ae 10GBase-R
Forward & Filtering Rate:
14,880pps (10Mbps); 148,800pps (100Mbps); 1,488,000pps (1000Mbps); 1,488,000,000pps (10000Mbps)
Note SFP module is not included (need to be purchased separately).
Open wire for terminal block (power supply is to be purchased separately).
