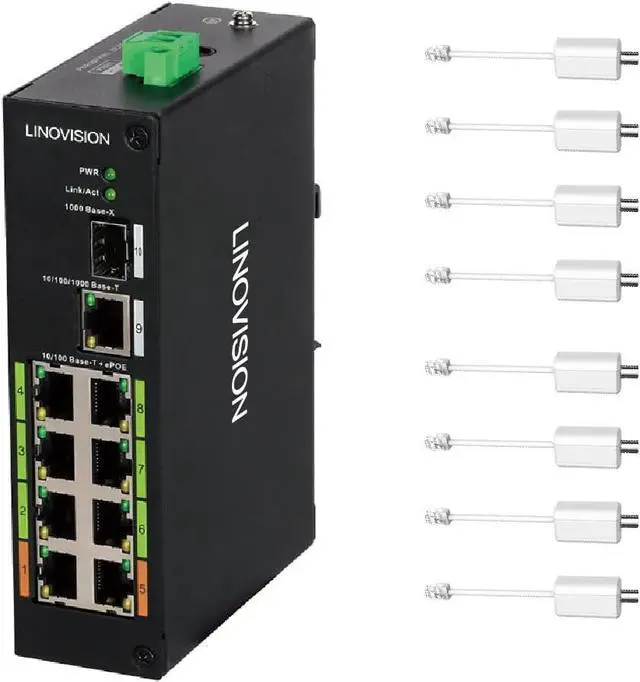

LINOVISION Industrial 8 Ports POE Switch, Built-in EOC Receiver, Ultra Long Reach PoE over Coaxial Cable Transmission, Extend PoE over Cat5E/Cat6 Network Cable up to 2500ft,Simply Cabling, Plug-n-Play

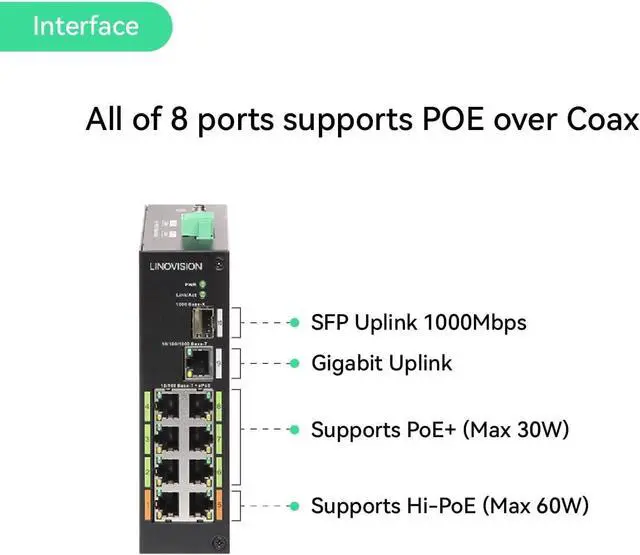

- 8-PORT INDUSTRIAL POE SWITCH It provides 8 10M/100Mbps PoE ports, 1 Gigabit Ethernet and 1 SFP Fiber Uplinks. It conforms IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards. The total PoE power budget is 120W, Port 1 or 5 60W (Hi-PoE standard), Port 2,3,4,6,7,8 30W(IEEE802.3at)
- 8-PORT POE OVER COAX All 8 ports can be working in EOC Receiver mode. When bundling with Linovision EOC-Transmitter, it supports PoE transmission over 8 coaxial cables at max 3,300ft distance without repeater
- SIMPLIFIED WIRING Instead of using 8 units of EOC Receivers and PoE switch, you can just use one of this EOC & PoE Hybrid Switch to provide the same functions. It makes the cabling more clean and organized
- ULTRA LONG POE EXTEND Over CAT5E/CAT6When bundling with Linovision EOC-Transmitter and EOC-Adapter, it can also extend Ultra Long POE Transmission through regular network cables over 2,600ft
- INDUSTRIAL DESIGN Support 2 channel DC48V-57V redundant power inputs. Industrial
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

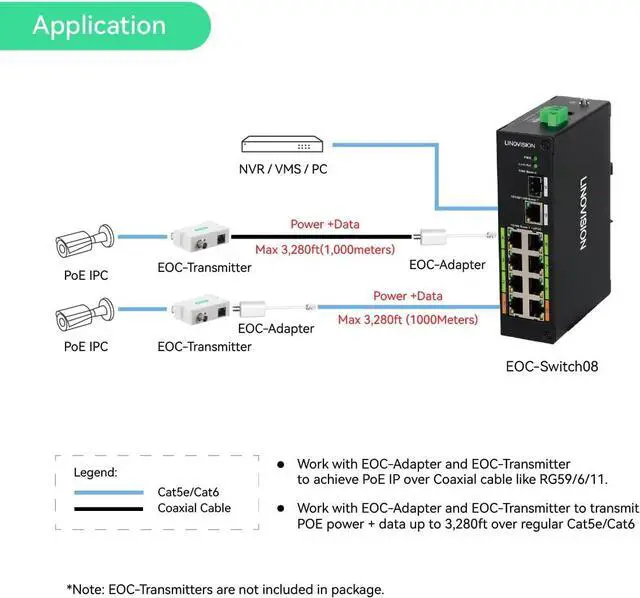

This is an innovative 8-Port EOC & POE Hybrid Switch, featuring built-in 8 EOC-Receivers. When working with EOC-Transmitter or ePOE IP cameras, it can transmit PoE power and data up to 3,300ft over Cat5E network cable or coaxial cable (EOC-Adapter is required).It can also be used as regular POE switch to work with standard POE device (IP camera, VoIP phone, etc.)
Outstanding Features:

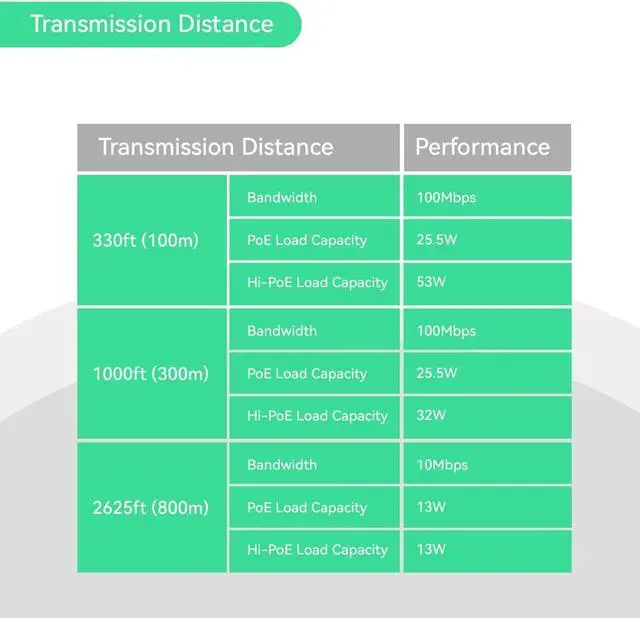

Up to 3,300ft PoE + Data transmission over Cat5E network cable or coaxial cable
Layer-2 switch, unmanaged
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
Industrial wide temperature design
Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Total POE budget 120W (Port1,560W, Port2,3,4,6,7,830W)

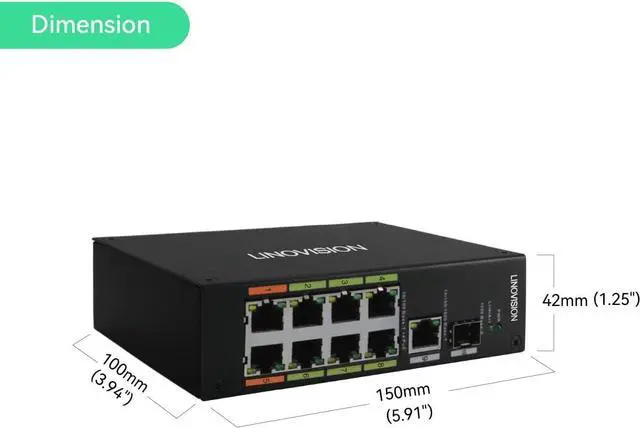

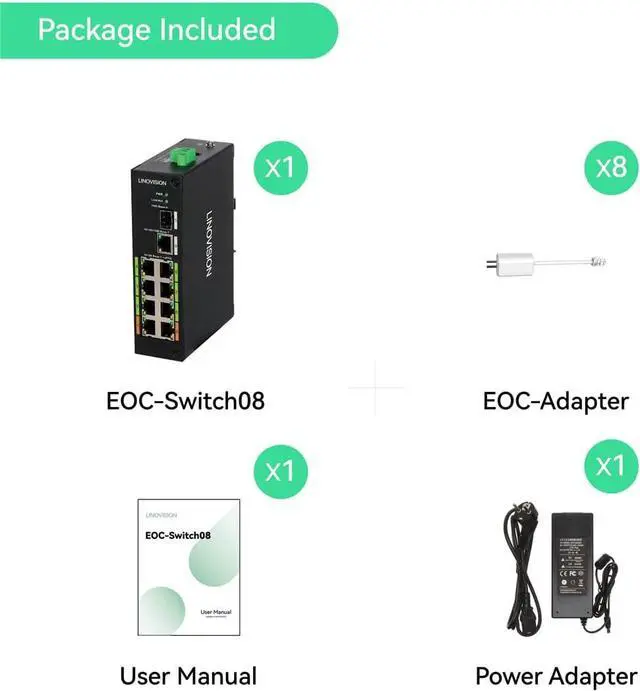

Ethernet Port1*100/1000 Base-X; 1*10/100/ 1000 Base-T 8*10/100 Base-T(PoE power supply)PoE Power ConsumptionPort1,560W; Port2,3,4,6,7,830W; Total120WPoE ProtocolIEEE802.3af; IEEE802.3at; Hi-PoESwitching Capacity8.8GbpsPackage includes1 * EOC-Switch08+8 * EOC Adapter+1 * Power Adapter+1 * Users ManualPowerDC48~57V Power AdapterWorking Humidity & Temperature10%~90%;-30'C~65"CWeight1.76lbsDimension5.91 x 3.94 x 1.65 This ItemLINOVISION Industrial 8 Ports POE Switch, Built-in EOC Receiver, Ultra Long Reach PoE over Coaxial Cable Transmission, Extend PoE over Cat5E/Cat6 Network Cable up to 2500ft,Simply Cabling, Plug-n-PlayRecommendations8 Port Gigabit PoE Switch with 2 Gigabit Uplink,802.3af/at Compliant,120W Built-in Power,Unmanaged Metal Plug and Play LINOVISION Industrial 8-Port EOC & POE Switch with 8pcs EOC Transmitters, Long Reach PoE Over Coax or UTP Cable, Simplified Wiring, Upgrading Analog System to IP Surveillance System 2-Port Gigabit PoE Extender - Outdoor IP65 Waterproof, 48V IEEE 802.3af/at, PoE Passthrough Switch, Splitter, Injector, Amplifier, Booster, Up to 100m ( 328 ft ) Hardened Industrial Gigabit PoE+ Injector M12 Interface 12-48VDC Input Support The PoE IEEE 802.3 af/at 30W Power Sourcing EquipmentInstall in DIN- Rail or Wall MountPlug and Play
Outstanding Features:
Up to 3,300ft PoE + Data transmission over Cat5E network cable or coaxial cable
Layer-2 switch, unmanaged
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
Industrial wide temperature design
Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Total POE budget 120W (Port1,560W, Port2,3,4,6,7,830W)
Ethernet Port1*100/1000 Base-X; 1*10/100/ 1000 Base-T 8*10/100 Base-T(PoE power supply)PoE Power ConsumptionPort1,560W; Port2,3,4,6,7,830W; Total120WPoE ProtocolIEEE802.3af; IEEE802.3at; Hi-PoESwitching Capacity8.8GbpsPackage includes1 * EOC-Switch08+8 * EOC Adapter+1 * Power Adapter+1 * Users ManualPowerDC48~57V Power AdapterWorking Humidity & Temperature10%~90%;-30'C~65"CWeight1.76lbsDimension5.91 x 3.94 x 1.65 This ItemLINOVISION Industrial 8 Ports POE Switch, Built-in EOC Receiver, Ultra Long Reach PoE over Coaxial Cable Transmission, Extend PoE over Cat5E/Cat6 Network Cable up to 2500ft,Simply Cabling, Plug-n-PlayRecommendations8 Port Gigabit PoE Switch with 2 Gigabit Uplink,802.3af/at Compliant,120W Built-in Power,Unmanaged Metal Plug and Play LINOVISION Industrial 8-Port EOC & POE Switch with 8pcs EOC Transmitters, Long Reach PoE Over Coax or UTP Cable, Simplified Wiring, Upgrading Analog System to IP Surveillance System 2-Port Gigabit PoE Extender - Outdoor IP65 Waterproof, 48V IEEE 802.3af/at, PoE Passthrough Switch, Splitter, Injector, Amplifier, Booster, Up to 100m ( 328 ft ) Hardened Industrial Gigabit PoE+ Injector M12 Interface 12-48VDC Input Support The PoE IEEE 802.3 af/at 30W Power Sourcing EquipmentInstall in DIN- Rail or Wall MountPlug and Play
