Binardat Industrial 12 Port Full Gigabit Solar POE Managed Switch,Input DC8V-57V to DC48V Voltage Booster, IEEE802.3af/at POE 240W, Web/CLI L3 Managed Ring DIN-Rail IP40 Switch

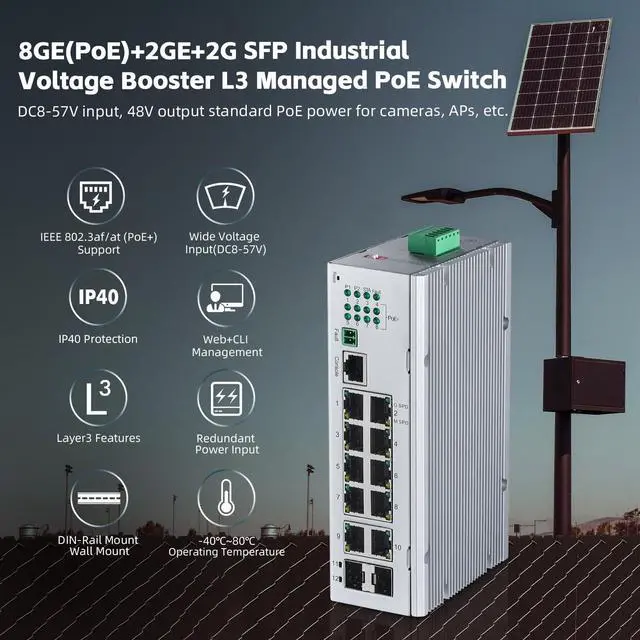

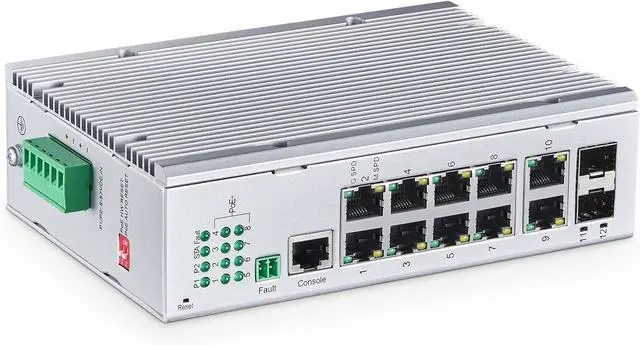

The ING12-084GW is a 12 Ports L3 managed Industrial Voltage Booster PoESwitch (DC 8-57V input). Port 1-8 support IEEE802.3af/at PoE standard.The switch adopts no fan, low power design, easy to use, small andsimple installation. It can be widely used in various fields.

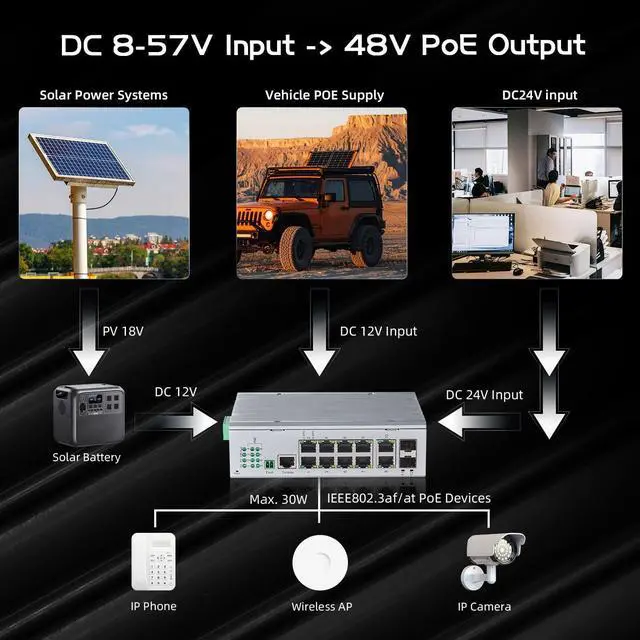

This switch has a built-in voltage booster chip, support 8-57V DC wide range power input and 48V PoE output. It will fulfilll the needs ofindustrial applications. It is good choice for an economical solutionfor industrial Ethernet connections.

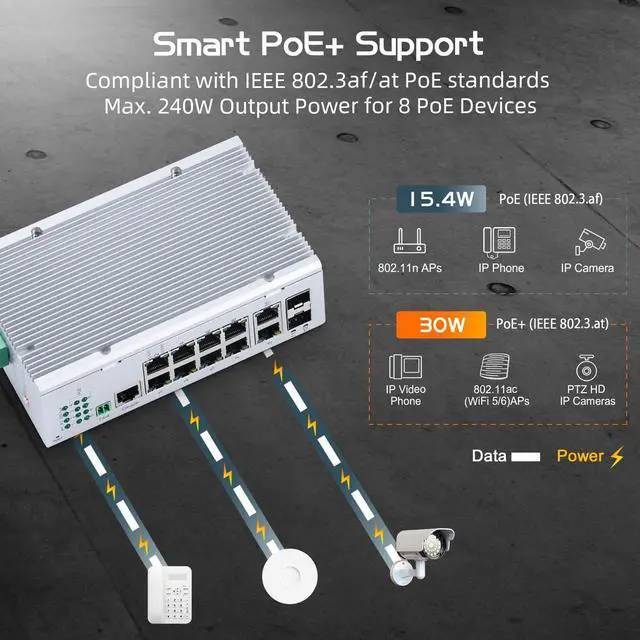

The switch includes 8x 1G PoE ports and 4x 1G uplink, with24Gbps backplane bandwidth, the switch has a strong switching capabilityfor sending data to the destination devices at ultra-high speed.Suitable for high-speed networks.
Innovative design supports CLI and easy-to-use Web GUI,easy to use and provides an overview dashboard, port management and setting guide, making network management intuitive.

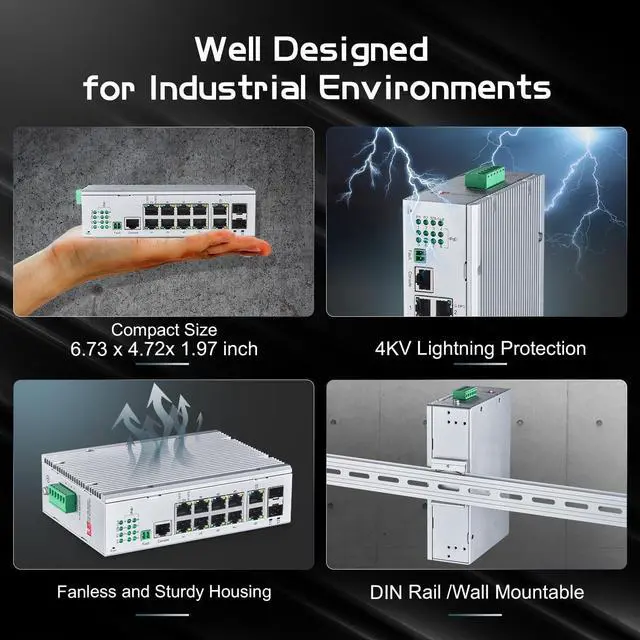

The industrial switch is developed for challenging environments, such as outdoor security surveillance, ITS, power, factory. It is designed to withstand temperatures from -40 °C to 80 °C (-40 °F to 185 °F), making it perfect for high demanding installations.

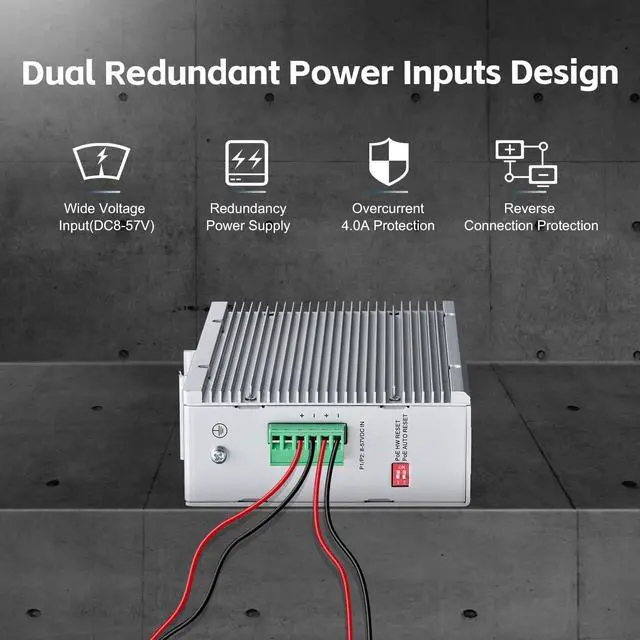

The industrial poe switch feature power redundancy design with overload current protection for enhanced reliability. A dual power input allows for a redundant power supply to ensure the network keeps running in the event of a primary power supply failure.
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.
Virtual Networks helps separate traffic within a business such as isolated resources betweenbetween employees and public guest users.
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

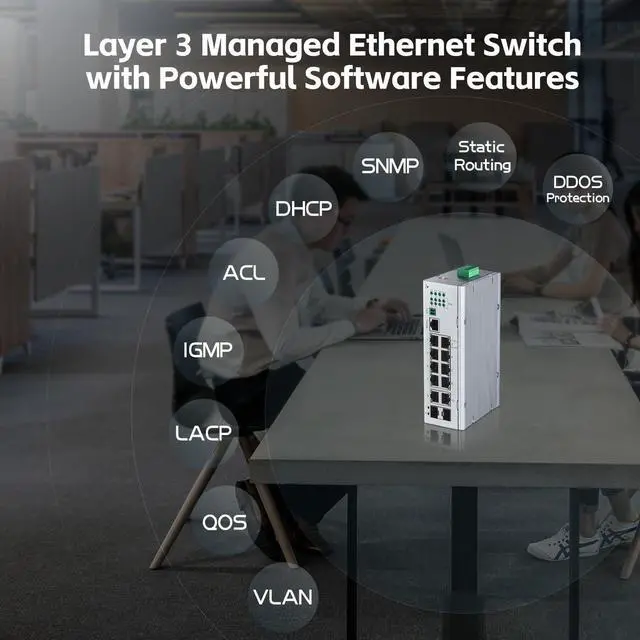

The Layer 3 switch can route between VLANs, make routing decisions based on the source and destination IP addresses.
Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.
Filters packets based on rules to offer firewall-like security protection.
The loop detection feature can helps you identify and remove loopson your network to avoid slow down or stop normal traffic on your network
Model8GE(PoE)+2GE+2G SFP Industrial Fast Ring Managed PoE SwitchInterface8x10/100/1000Mbps RJ45 Ports + 2x10/100/1000MGbps RJ45 Ports + 2x1000Mbps SFP Slots, 1xConsole PortStandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad, IEEE802.3bz, IEEE802.3aeNetwork Media100BASE-X:UTP category 5,5e cable (100m), 1000BASE-X:UTP category 5e,6 cable (100m), 2.5GBASE-X:UTP category 6,6a cable (100m), 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF, 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m-300m), 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m-10000m)LED IndicatorP1(Green), P2(Green), STA(Green), Fault(Green), LNK/ACT(Green/Yellow), PoE(Green)MAC Address Table8K, Auto-learningJumbo Frame10000BytePacket Buffer4.1MbitTransfer ModeStore-and-forwardSwitching Capacity24GbpsPacker Forward Speed17.86MppsPoE PowerPoE Standard: IEEE802.3af/at (Max. 30W), PoE Power Budget: 240W, PoE Port: Port 1-8, PoE Power Pin: 1/2+, 3/6-,Input Power SupplyDC 8-57VDimensions(LxWxH)50x171x120mmEnvironmentOperating Temperature: -40~ +75°C, Storage Temperature:-40~ +80 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensingLighting ProtectSurge Rating: Differential mode ±1KV, Common mode ±2KV, Electrostatic Standard: Contact ±6KV, Air ±8KV This ItemBinardat Industrial 12 Port Full Gigabit Solar POE Managed Switch,Input DC8V-57V to DC48V Voltage Booster, IEEE802.3af/at POE 240W, Web/CLI L3 Managed Ring DIN-Rail IP40 SwitchRecommendationsLINOVISION Industrial 8 Ports Gigabit Managed PoE Switch with DC12~57V Input, L2 Management, RS485 Serial Port, DC 12/24V Output
