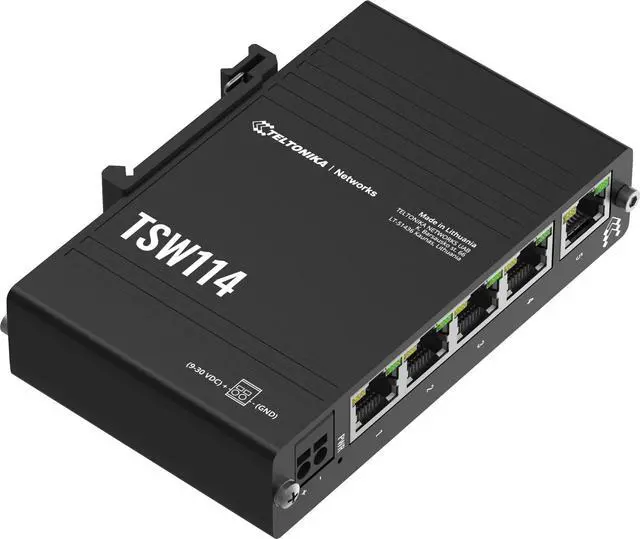

Teltonika TSW114000000 Model TSW114 DIN Rail Switch, Black; Integrated DIN Rail Bracket; 5X Ethernet Ports; Plug-N-Play; Aluminum Housing; Non-Blocking Bandwidth up to 10 Gbps; PSU Not Included

Teltonika TSW114000000 Model TSW114 DIN Rail Switch, Black; Integrated DIN Rail Bracket; 5x Ethernet Ports; Plug-N-Play; Aluminum Housing; Non-blocking Bandwidth up to 10 Gbps; PSU Not Included (sold separately)

TSW114 is an affordable way to simplify your connectivity with its plug-n-play nature. 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices. Compact size, front-facing ports, and an integrated DIN rail bracket enable easy installation across many industrial environments and especially control cabinets

Key Features:
- PSU not included (sold separately)
- 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices

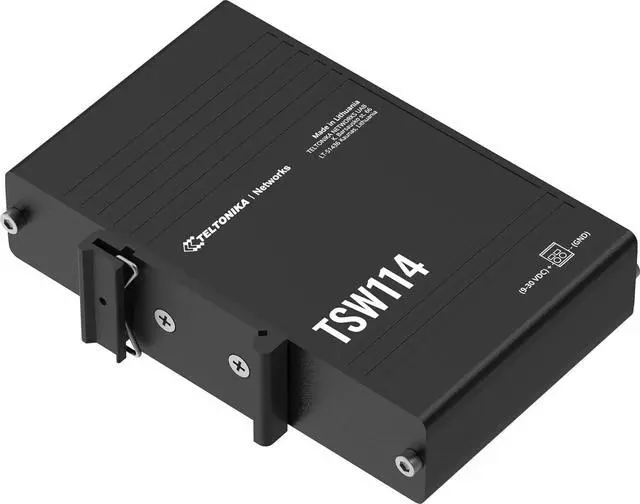

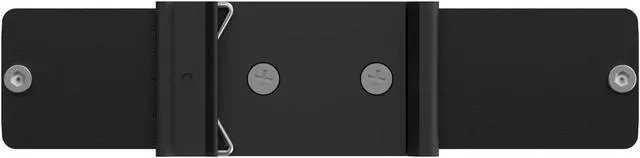

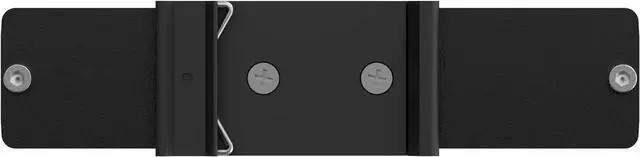

- Integrated DIN rail bracket and front-facing ports
- 40 to 75 degrees Celsius operating temperature
- Rugged anodized aluminum housing that fits in your pocket
- PLUG-N-PLAY
- 9-30V, Wide range of supported power supply voltages

Specifications:

Performance:
- Bandwidth (Non-blocking): 10 Gbps
- Packet buer: 128 KB
- MAC address table size: 2K entries
- Jumbo frame support: 9216 bytes

Power:
- Connector: 2-pin industrial DC power socket
- Input voltage range: 9 - 30 VDC
- PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
- Power consumption: Idle: 0.3 W / Max: 2.3 W

Physical Interfaces:

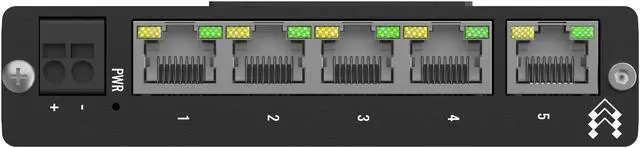

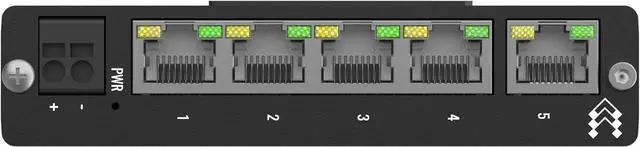

- Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
- Status LEDs: 1 x Power LED, 10 x LAN status LEDs
- Power: 1 x 2-pin industrial DC power socket
- Grounding: 1 x Grounding screw

Physical Specifications:
- Casing material: Anodized aluminum housing and panels

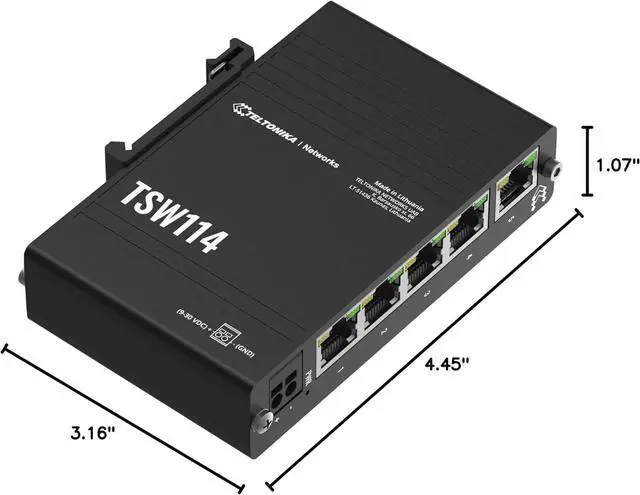

- Dimensions (W x H x D): 4.45 x 1.07 x 3.16 inches
- Weight: 0.4 pounds
