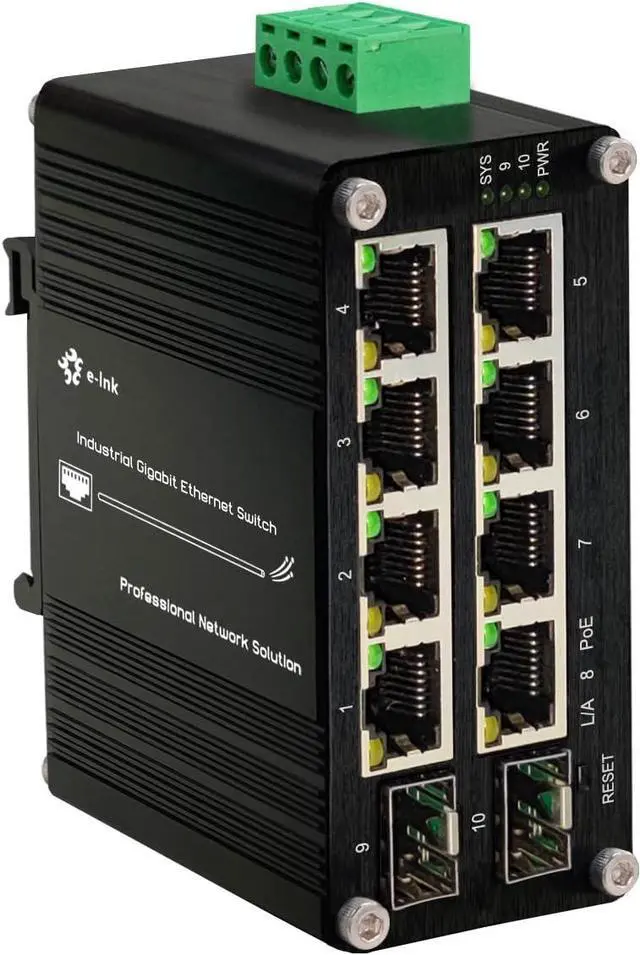

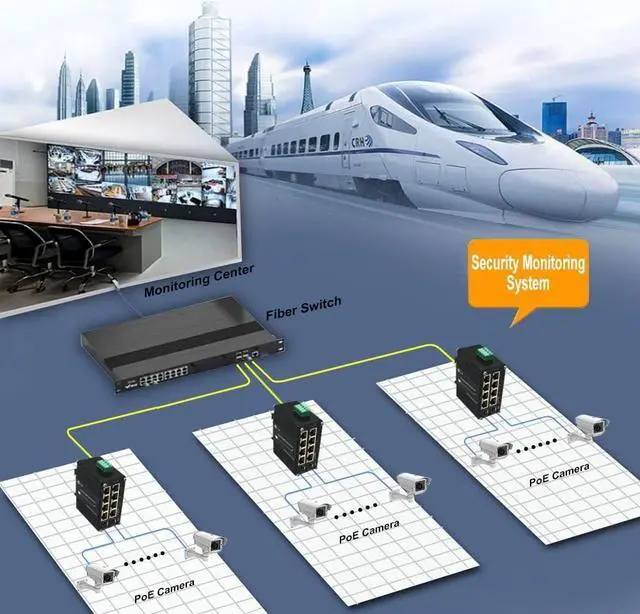

Next page This is a managed industrial network switch with 8 ports 10/100/1000Base-TX RJ45 and 2 ports 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
8x10/100/1000Base-TX + 2x100/1000Base-X SFP
10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Supports WEB Management
Support IEEE 802.3D/W/S standard STP/RSTP protocol

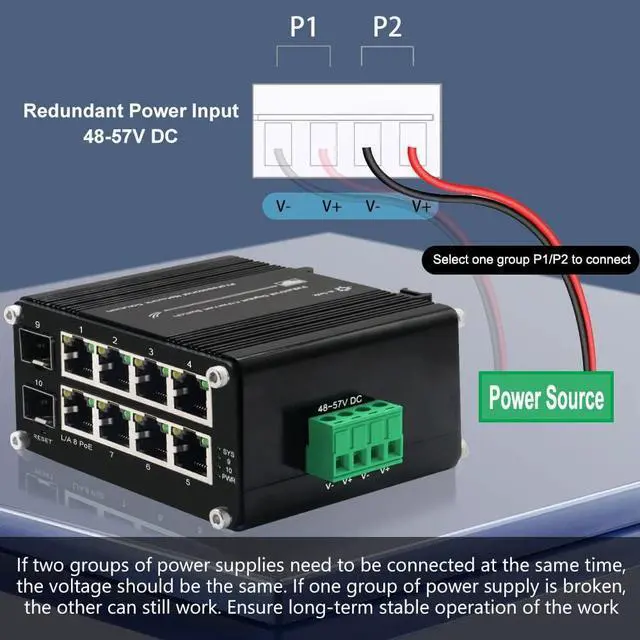

48~57V DC redundant power with reverse polarity protection

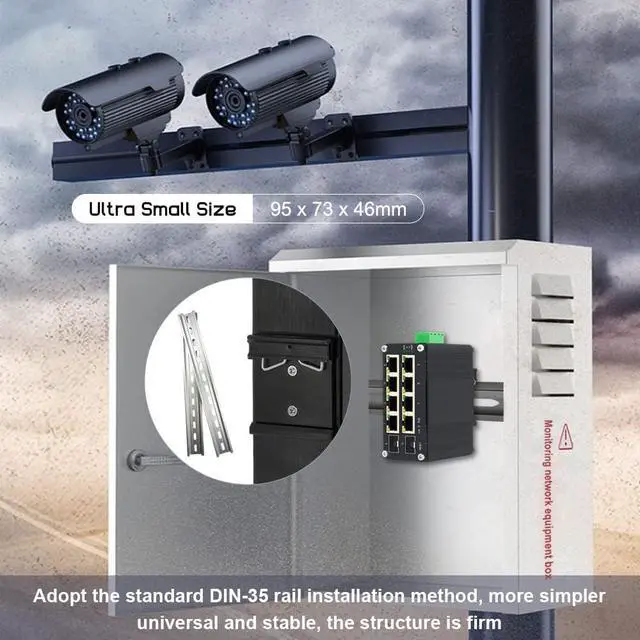

Supports DIN-Rail installation and -40°C to 80°C (-40°F to 176°F) operating temperature.
Up to 8 ports of IEEE 802.3at/af devices powered, PoE budget up to 240w
Smart terminal devices supported by different PoE standards IEEE802.3af/at
Supports 802.3x Flow Control
Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
IEEE 802.3az Energy Efficient Ethernet (EEE)
Packet forwarding rate: 14.88Mpps
Forward & Filtering Rate: 14,880pps (10Mbps); 148,800pps (100Mbps); 1,488,000pps (1000Mbps)
Redundancy Protocols: Support STP/RSTP
Multicast Support: Support IGMP Snooping V1/V2/V3
VLAN: Support IEEE 802.1Q 4K VLAN
QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance: Support port mirroring, Syslog, Ping
Management Function: WEB
Security: Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
This series of industrial Switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.
