8 Ports 2.5G PoE Switch with 10G SFP+ Slot IEEE802.3af/at 30W Up to 120W 10/100/1000M/2.5G Desktop Ethernet Switch Unmanaged Network Fiber Switch 110-240V AC
- 8 10/100/1000/2.5GBase-T RJ45 ports support intelligent PoE power supply, meeting the PoE power supply needs of security surveillance, telephone conference systems, wireless coverage and other scenarios.
- 10GBase-SR/LR SFP+ open sfp slot support single mode / multi-mode fiber (wavelength: 850nm/1310nm/1490nm/1550nm), transmission distance depends on the SFP module used.
- Complies with IEEE 802.3af/at PoE power supply standard, automatically identifies PoE devices for power supply, and does not damage non PoE devices. The maximum PoE output power of single port is 30W.

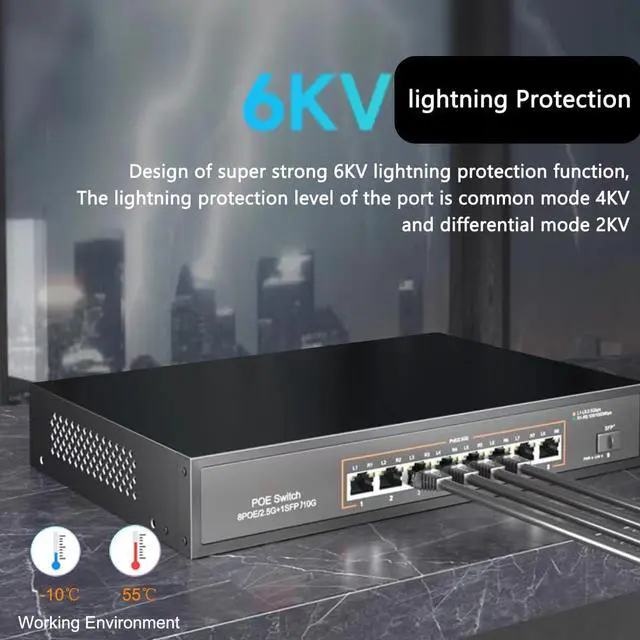

- Design of super strong 6KV lightning protection function, The lightning protection level of the port is common mode 4KV and differential mode 2KV.

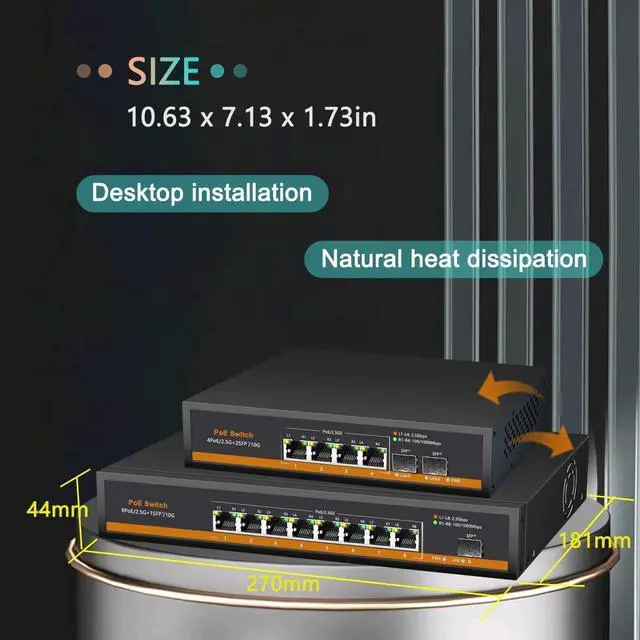

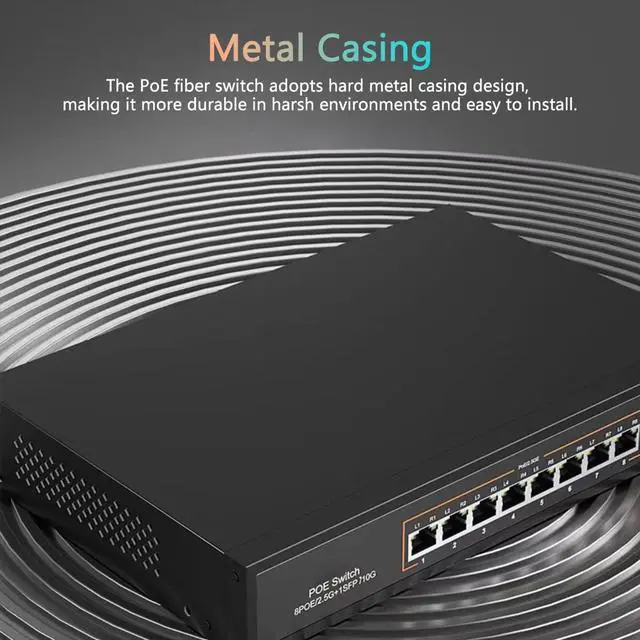

- The switch is designed with low power consumption. The metal shell provides excellent heat dissipation, ensuring stable product operation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

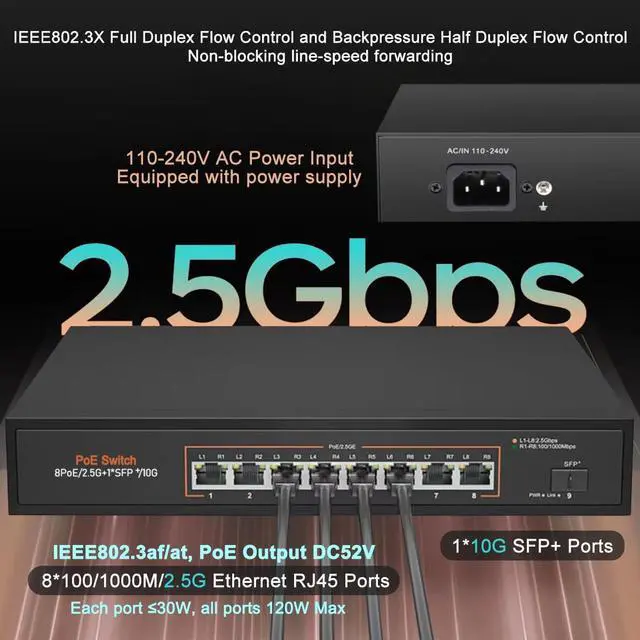

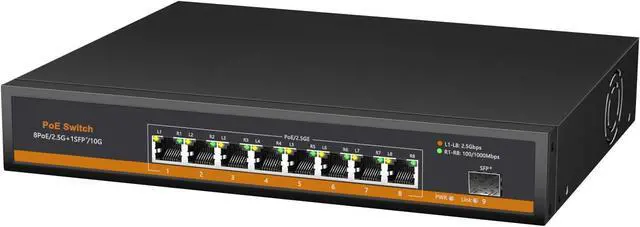

This is a 2.5Gbps PoE fiber switch with 8 Ethernet adaptive ports and 10GBase-ZR/LR open SFP+ slots. 1-8 ports support IEEE 802.3af/at active PoE+ and single port PoE output power of up to 30W. Support IEEE802.3x full duplex flow control and Backpressure half duplex flow control.
Unmanaged models, plug and play, no configuration required, simple and convenient to use. Users can easily understand the device's working status through the power indicator (PWR), fiber link indicator (Link), network port status indicator and PoE working indicator (L/R).

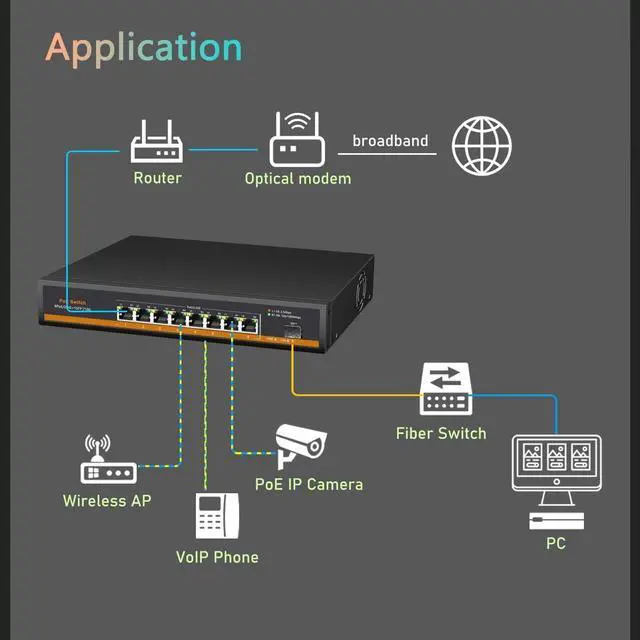

As a PoE power supply device, 1-8 ports can automatically detect and identify power receiving devices that meet the 802.3af/at standards and provide power to them. Power can be provided to PoE terminal devices such as wireless APs, PoE cameras and voip phones through Ethernet cables.
Module needs to be purchased separately. Modules optional: SFP+ slot support Single Mode(9/125m) & Multi-Mode(50/125m, 62.5/125m) ; Wavelength: 850nm/1310nm/1490nm/1550nm. The transmission distance depends on the module used (550m-80km).
Forwarding modeStore and forward/Full line speedPacket forwarding rate0.01488Mpps (10Mbps), 0.1488Mpps (100Mbps), 1.488Mpps (1000Mbps), 14.88Mpps (10000Mbps)Backplane bandwidth60Gbp s/non-blockingPacket forwarding [email protected] address table4KPower supply pin1/2(+), 3/6(-)PoE total outputUp to 120WInput voltage110-240V AC Power consumption<125Wnon-PoE<5W UTP transmission100BASE-TX: Cat5 or above (100 meter); 1000BASE-T: Cat5e or above (100 meter); 10000BASE-T: Cat6 or above (100 meter)Fiber opticMultimode/Single mode; 850nm/1310nm/1490nm/1550nm; 550m80KMStandard protocolIEEE802.3 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3bz 2.5GBase-T; IEEE802.3x Full-Duplex Flow Control; IEEE802.3af/at Power over Ethernet 2.5Gbps Unmanaged PoE Ethernet Switch with 10G SFP+ Fiber Port
Unmanaged models, plug and play, no configuration required, simple and convenient to use. Users can easily understand the device's working status through the power indicator (PWR), fiber link indicator (Link), network port status indicator and PoE working indicator (L/R).
As a PoE power supply device, 1-8 ports can automatically detect and identify power receiving devices that meet the 802.3af/at standards and provide power to them. Power can be provided to PoE terminal devices such as wireless APs, PoE cameras and voip phones through Ethernet cables.
Module needs to be purchased separately. Modules optional: SFP+ slot support Single Mode(9/125m) & Multi-Mode(50/125m, 62.5/125m) ; Wavelength: 850nm/1310nm/1490nm/1550nm. The transmission distance depends on the module used (550m-80km).
Forwarding modeStore and forward/Full line speedPacket forwarding rate0.01488Mpps (10Mbps), 0.1488Mpps (100Mbps), 1.488Mpps (1000Mbps), 14.88Mpps (10000Mbps)Backplane bandwidth60Gbp s/non-blockingPacket forwarding [email protected] address table4KPower supply pin1/2(+), 3/6(-)PoE total outputUp to 120WInput voltage110-240V AC Power consumption<125Wnon-PoE<5W UTP transmission100BASE-TX: Cat5 or above (100 meter); 1000BASE-T: Cat5e or above (100 meter); 10000BASE-T: Cat6 or above (100 meter)Fiber opticMultimode/Single mode; 850nm/1310nm/1490nm/1550nm; 550m80KMStandard protocolIEEE802.3 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3bz 2.5GBase-T; IEEE802.3x Full-Duplex Flow Control; IEEE802.3af/at Power over Ethernet 2.5Gbps Unmanaged PoE Ethernet Switch with 10G SFP+ Fiber Port
