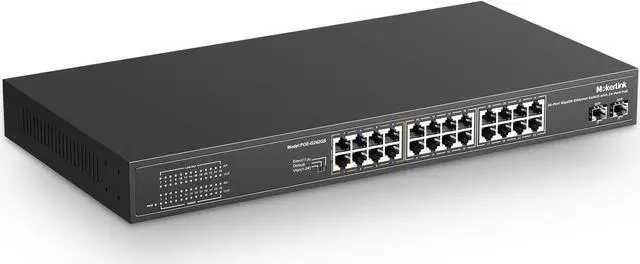

MokerLink 26 Port Gigabit PoE Switch, 24 Gigabit PoE+ Ports, 2 Gigabit SFP Uplink, 300W IEEE802.3af/at, Fanless Rackmount Unmanaged Plug and Play Ethernet Switch

Previous page
Next page Q: What size network rack will this fit on?
A: Support 19 inch standard rack, the PoE switch come with rackmount kit.
Q: Does this 24-ports gigabit PoE switch have built-in fan? Is it loud?
A: This model without fan ensure noiseless operation.
Q: Is this a PoE+ switch?
A: Yes it is a poe+ switch, The max power for per PoE port is 30W.
Q: Can I connect 12V PoE camera and supply camera with power & data?
A: No. Only support 48V PoE devices, but you can use a PoE splitter adapter to change 48V to12V.
Q: Can I plug in non-poe devices on this switch, such as PC and router?
A: Yes. It is equipped with auto-sensing PoE ports that will only deliver power if a IEEE802.3af/at compatible PoE device is connected and detected.
Q: Can I enable/disable ports and PoE form web interface?
A: No. This PoE switch is an unmanaged PoE+ switch, you can't do any config on it.
MokerLink 24 port gigabit PoE switch compatible with IEEE 802.3af/at protocol, it determines and delivers the exact power supply to your devices with up to 30W power output. If a device not IEEE802.3af/at compliant, only network data will be transmitted through the LAN cable to avoid from being damaged by incorrect power sending.
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When link extend mode is enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.
When you enable the extend mode with DIP switch,switch divides traffic for ports 1-24 to prevent IP camera's muliticast or broadcast storm from affecting each other.

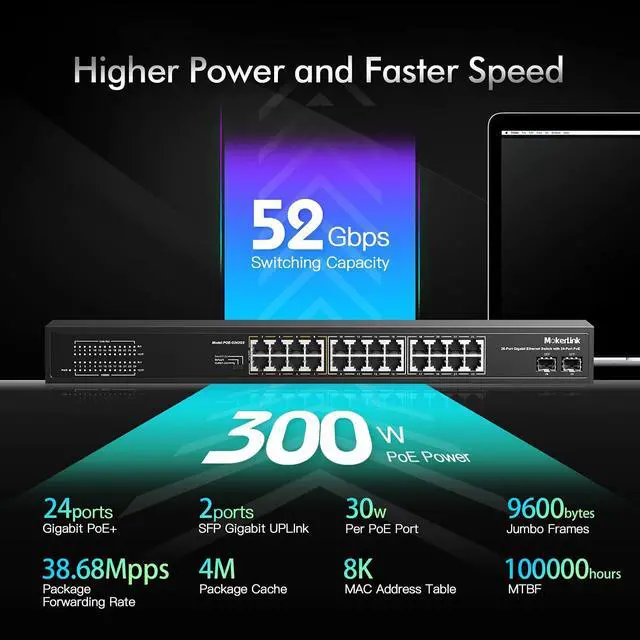

24 port PoE switch includes 24 gigabit ports and 2 gigabit sfp port, it is use for applications that also require high data throughput due to the use of high-resolution camera. Furthermore, the devices support jumbo frames, which enables an additional increase in efficiency in networks with high data volumes.

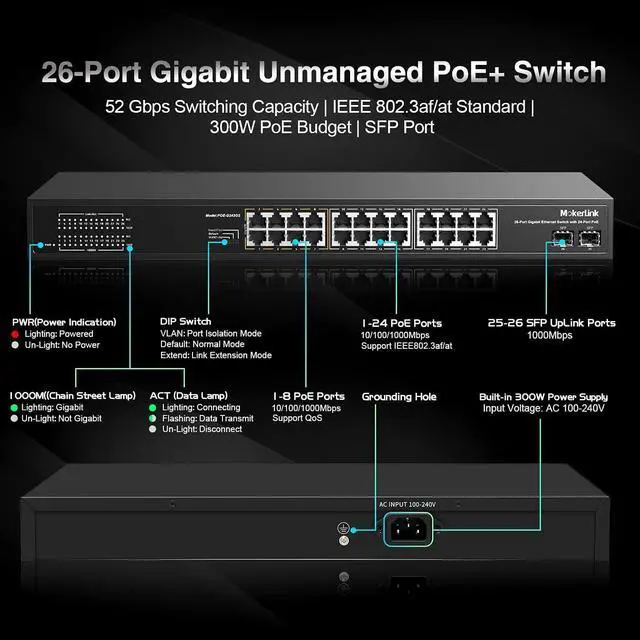

You can quickly check working status and troubleshoot ports with LED Indicator Pane.
PWR (power supply), ACT (Link&Data)1000Mbps (1000M Link).
24 port gigabit PoE switch support up-link SFP ports, The switch's port 25-26use fiber cable to connect wired network segments throughout buildings or across campuses extending beyond the limitations of Ethernet cabling.

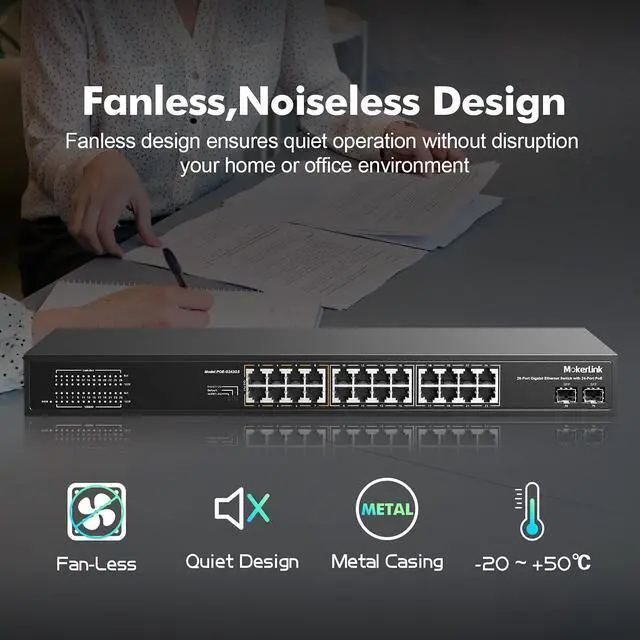

The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
Support rack-mount in 19'' cabinet, and includes all the necessary mounting hardware in the box .Save your space and easy to manage.
The PoE switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Ports24*10/100/1000M PoE Port + 2*Gigabit SFP Uplink PortLED IndicatorsPWR (power supply)ACT (Link&Data)1000Mbps (1000M Link)DIP SwitchVLAN: 1-24 port is isolated each other, but all downlink ports can communicate with uplink port 25/26 Default :All ports communicate freely Extend:17-24 Port support 250 meters transmission on 10Mbps/sPower InputAC 100-240V, 50/60HzTotal Power Supply300WMountingDesktop / Rack-MountFanFanlessProduct Dimension (L*W*H)445mm*285mm*45mmWeight3.2kgSwitching Capacity52GbpsThroughput38.7MppsPacket Buffer4MMAC Address8KPoE ProtocolIEEE802.3af (15.4W) IEEE802.3at (30W)Pin Assignment1/2(+), 3/6(-)Working EnvironmentWorking Temperature-20~50°C Storage Temperature-40~85°C Working Humidity 10%~90%non-condensing Storage Temperature5%~90%non-condensing Working HeightMaximum10,000 feet Storage heighMaximum 10,000 feet Multi-Gigabit Switch Choose More 2.5g/10g Switch PoE Switch Choose More PoE Switch Choose More Managed Switch Choose More Fiber Switch Choose More Industrial Switch FAQs: PoE Devices Auto Detection Link Extention to 250m Port-based VLAN Full Gigabit Ports Unique LED Indica
