MokerLink 8 Port Gigabit Industrial DIN-Rail Ethernet Switch, 2 SFP Ports with 1 LC 20KM Module(SMF), IP40 Rated Unmanaged Network Switch (-40 to 185°F), with UL Power Supply

Previous page
Next page

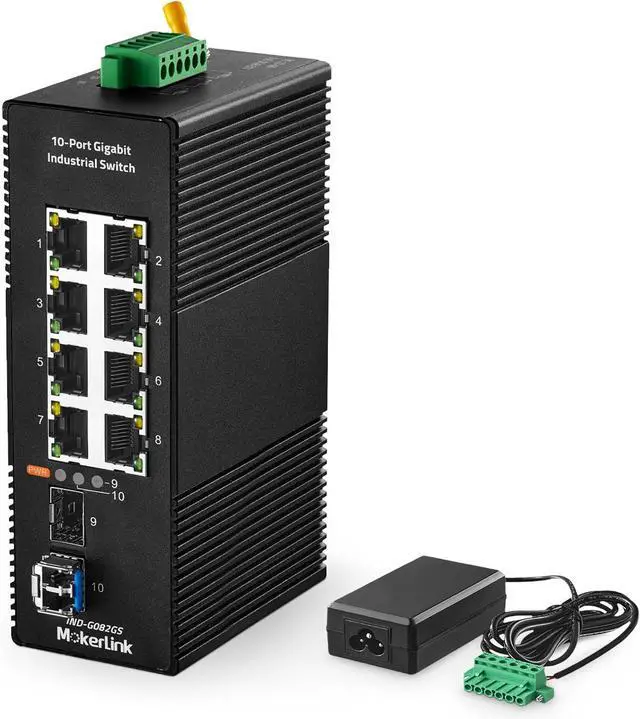

1* 10-Port Gigabit Industrial Ethernet Switch
1* 24W AC Adapter
1* User Manual
1*Wall Mount Kit

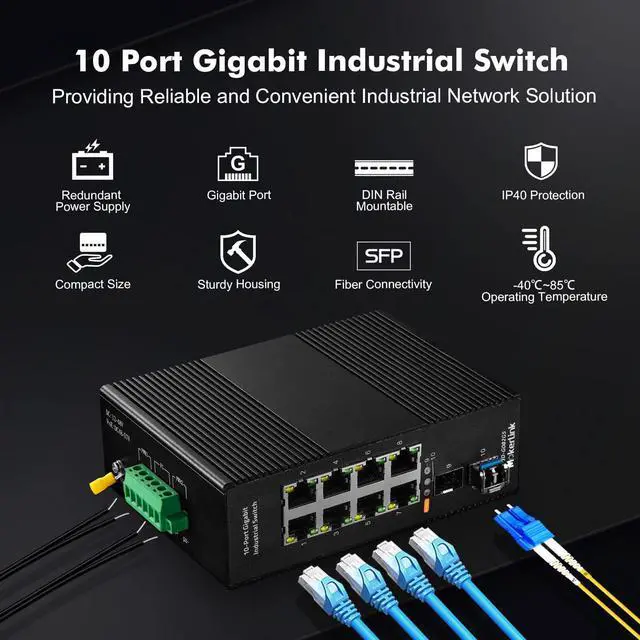

The IND-G082GS is housed in an sturdy IP40 rated enclosure with DIN-rail mount and wall mount options. The ethernet interfaces include 8* RJ45 10/100/1000Mbps ports and 1* 1000Mbps SFP ports. To ensure operation in harsh environments the IND-G082GS provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 85°C (-40 to 185°F).
The network interface supports full-automatic intersection recognition
The built-in store and forward mechanism supports a variety of protocols.
Working power supply: DC12V-52V provides reverse connection protection and 4A overcurrent protection.
Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20).
It meets the industrial operation standard, and the mean time between failures is more than 300000 Hour.
Rugged IP40 rated enclosure designed to withstand a high degree of vibration, shock, It can be used in such demanding applications as railways, water treatment, substation automation, roads and tunnels, as well as factory automation, IP surveillance and building automation systems (BMS).
The industrial switch is developed for challenging environment, operate within a wide temperature range (- 40 85 °C (- 40 - 185 °F)) for harsh environments.
The industrial switch features non-blocking wire-speedarchitecture with 16Gbps switching capacity for maximum datathroughput. It supports IEEE 802.3x flow control for full-duplex mode,and back pressure flow control for half-duplex mode alleviates trafficcongestion and ensures reliable data transmission.
The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

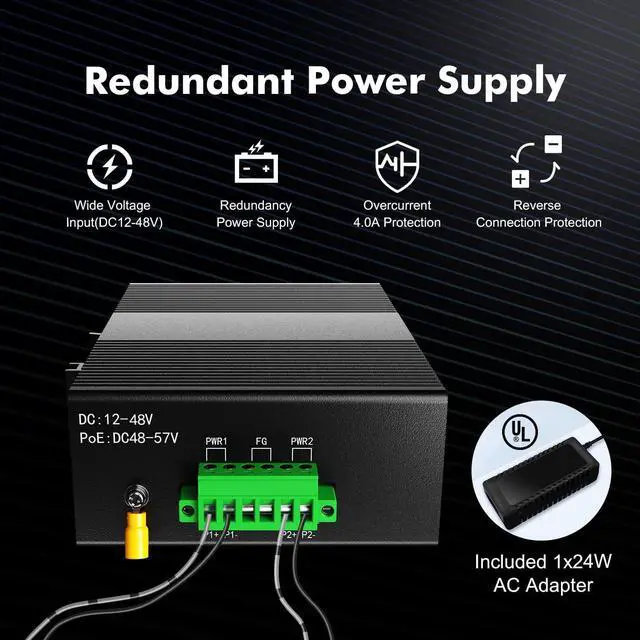

Dual power inputs for redundancy with overload current protection. Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails. The switch come with one 24W power adapter.
The industrial ethernet switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.
Compact and lightweight(143 * 101 * 44mm/0.64kg). It is designed for desktops, cabinet and quiet environments

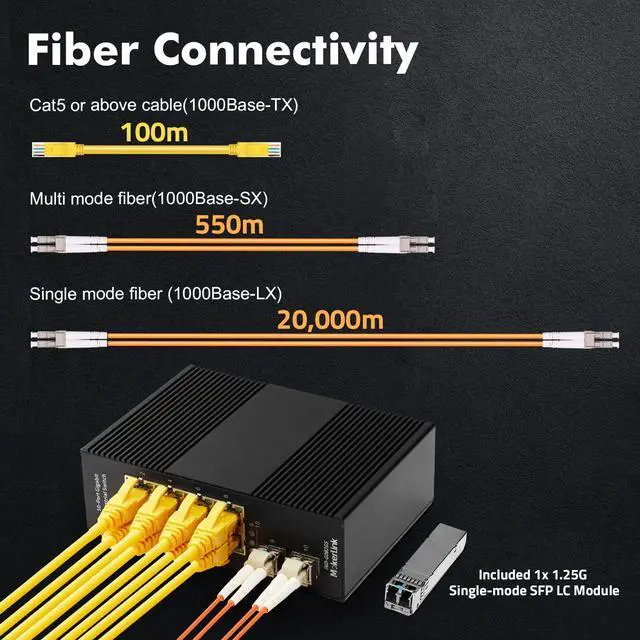

The industrial switch can be chained together via fiber cable to provide a distributed solution where isolation, distance, security and/or noise immunity is needed between nodes.
The DIN Rail housing is designed to safely and securelyhouse DIN rail mounted equipment for wall and rack mount applications.
Product Name10-port10/100/1000Mbps industrial ethernet switchProduct ModelIND-G082GSPort8x10/100Base-T RJ45port + 2x1000Mbps SFP portNetwork protocolIEEE802.3-CSMA/CD;IEEE802.3i-10Base-T;IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; - 1000Base-X;IEEE802.3ab - 1000Base-T;Operating temperature-4085-40185°F Input voltageDC12-52V (redundant backup of dual power supply )Access terminalPhoenix terminalShellIP40 protection grade, metal shellInstallationDIN-rail mount and wall mountRadiating methodNatural cooling, No-fanWeight0.64KgSize143 * 101 * 44mm(L x W x H)IEC(EN)61000-4-5(Surge)Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVExchange capacity14GbpsProtection GradeIP40Work EnvironmentOperating temperature: -4085(-40185°F), Storage temperature: -4085(-40185 °F), Relative humidity: 5%95%( (no condensation) MokerLInk Wireless Products Choose More Wireless Products Choose More Industrial Switch Label Prints Choose More Lable Printer 10-Port Gigabit Industrial Ethernet Switch Reliable and Convenient Industrial Network Solution IP40 Aluminum Metal Housing Wide Temperature Operation Full Gigabit Configuration L
