4W 4000mW 802.11b/g/n WiFi Wirel Amplifier Router 2.4Ghz WLAN ZigBee BT Signal Booster with an TDD

Working with ce fied IEEE 802.11b/g/n wirel LAN devices.
Simply plug and play, no software is required.
Wide 6-16V operating input .

Spec:
This 2.4 GHz WLAN signal booster is designed for IEEE 802.11b/g/n wireless LAN applications. It adopts the direct sequence spread spectrum(DSSS) and orthogonal frequency division multiplexing(OFDM) technology of WLAN communication. The product is compatible with time division duplexing(TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/WiFi devices, BT, for ZigBee and increase the signal strength, therefore a larger WLAN coverage and more stable transmist rate.
Features:
20X the power, improving the link quality and coverage of certified WLAN devices.
2.5dB ultra low noise.
12V operating input range.
Working with certified IEEE 802.11b/g/n wireless LAN devices.
Simply plug and play, no software is required.
Specifications:
Frequency range: 2.4-2.5GHz
Operating voltage: 12V
Receiving gain: 10dB±1
Transmit gain: 13dB±1
Input trigger power: 3dBm(min), 20dBm(maximum)
Maximum output power(P1dB): 36dBm(4W)
EVM: 3@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC supply current: 435mA @ Pout 28dBm 9V
Noise figure: 2.5dB
TX switch time delay: 1us
LED indicator: Transmitter: green, receiver: red
Operating ambient temperature: -20~70
Operating humility: Up to 95 rel. humidity
Item size: 8.2 * 5 * 2.1cm / 3.22 * 1.96 * 0.82in (L * W * H)
Item weight: 181g / 6.39oz
Package size: 21 * 12.5 * 5cm / 8.26 * 4.92 * 1.96in (L * W * H)
Package weight: 381g / 13.43oz
Applications:
Wireless LAN 802.11b/g/n access point clients.
Based on the 2.4GHz WLAN wireless base stations.
Based on the 2.4GHz WLAN wireless bridges.
Indoor distribution systems (multiplay) in the combiner.
Based on forZigBee, BT protocol wireless devices.
Installation Instructions:
Step1: Disconnect the power supply to AP/Router.
Step2: Detach the antenna from your certified wireless AP/Router.
Step3: Connect RG316 cable (included) to the booster and AP/Router.
Step4: Connect the antenna to the other end of the booster.
Step5: Connect the power supply to the booster first and subsequently the AP/Router.
Package List:

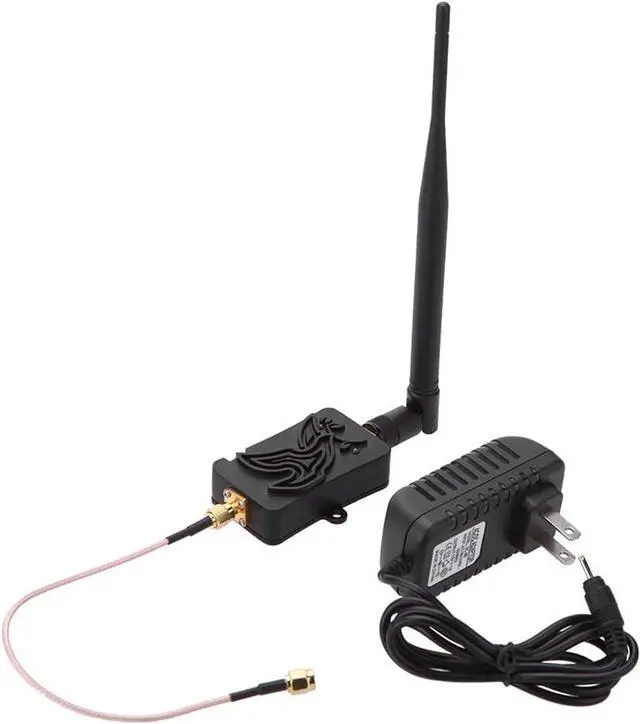

1 * 4W signal booster
1 * Power adapter

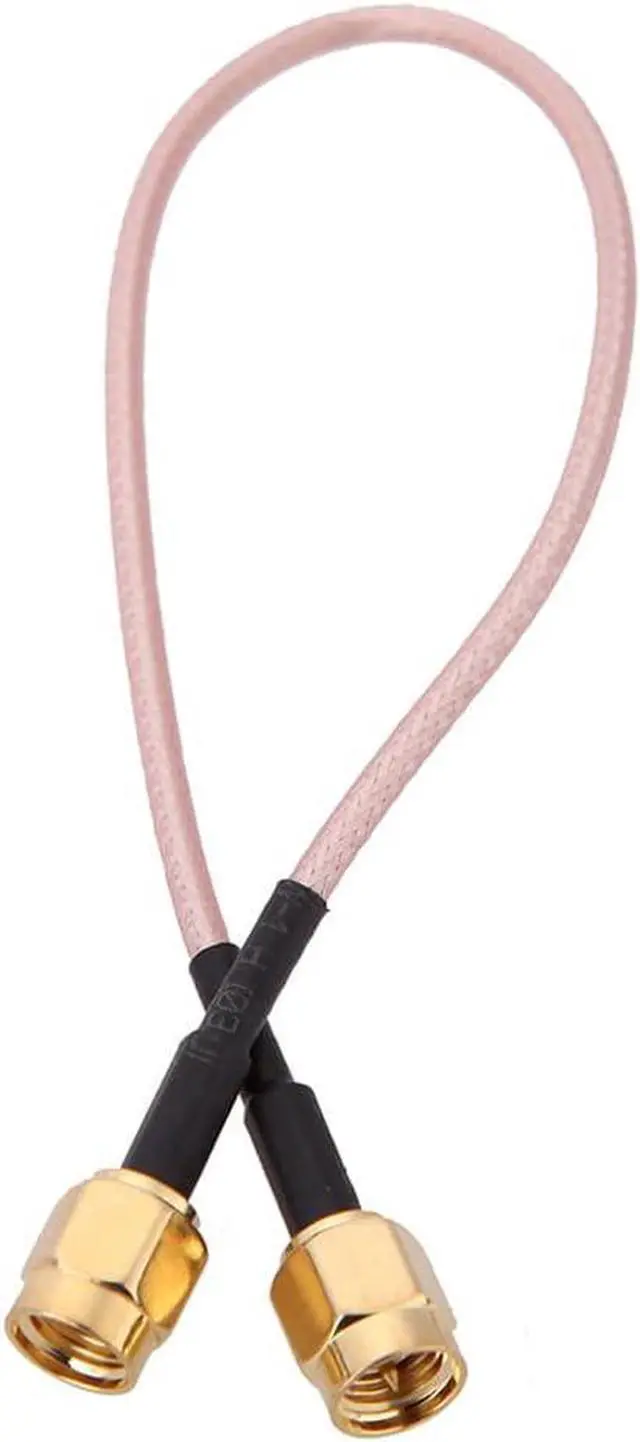

1 * 20cm RG316 cable
1 * 5dBi antenna
1 * User manual (English)
Cable
Instruction manual
