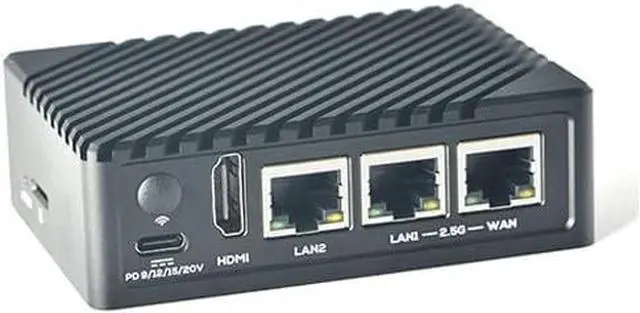

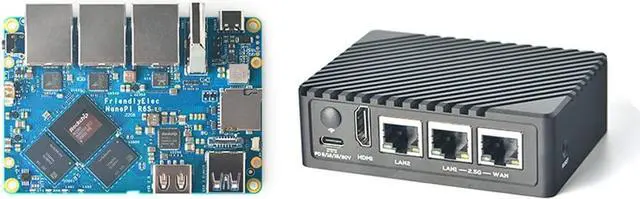

Nanopi R6S Mini WiFi Router OpenWRT with Three Gbps Ethernet Ports LPDDR4X 8GB RAM Based in 6Tops NPU RK3588S Soc for IOT NAS Smart Home Gateway Support Linux Ubuntu Android (with CNC Metal Case)
- [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R6S Mini Wifi Router can support external USB wifi adapter.Simultaneous dual band with wireless speed 300Mbps(2.4G)+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing.
- [Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more.

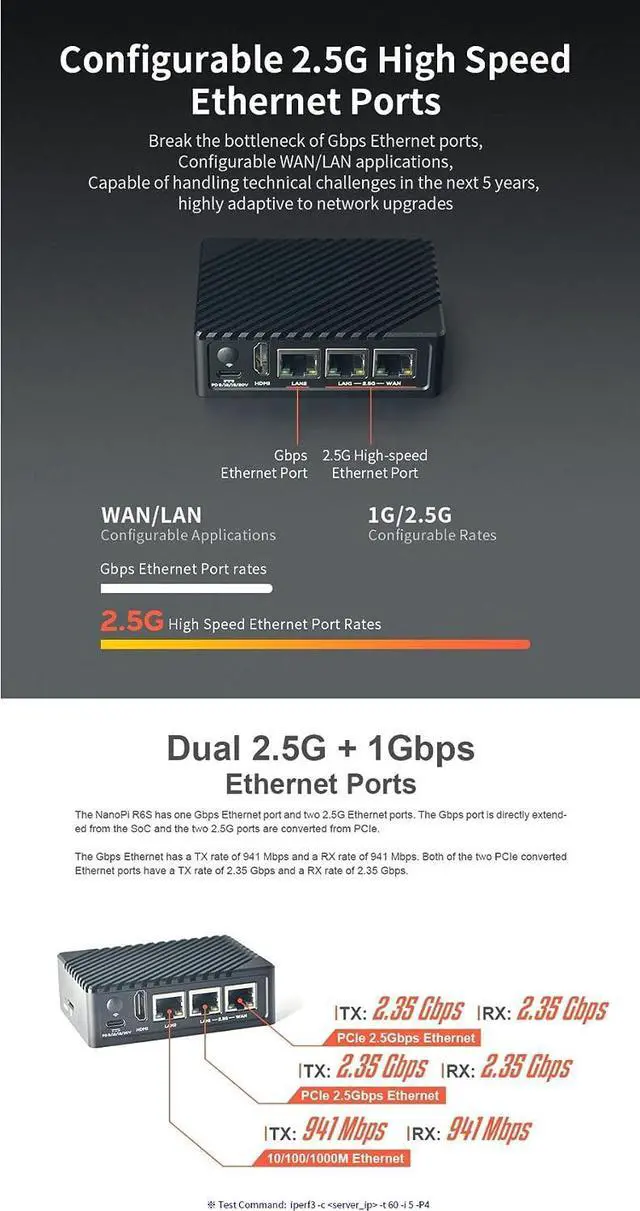

- [DUAL PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R6S Mini Router has three 2.5Gbps Ethernet ports: one directly extended from the SoC and the other two converted from a PCIe. Gets around 941Mbits/second download and upload.
- [LARGER STORAGE & EXTENSIBILITY] with 64-bit 8GB LPDDR4X RAM at 2133MHz, 32GB Flash eMMC at HS400 mode and support MicroSD slot/UHS-I up to SDR104 mode; Support USB3.0 Host x1: USB Type A, USB 2.0 Host x1: USB Type A, USB-C x1; GPIO: 12-pin 0.5mm FPC connector; Debug UART x1, 3pin 2.54mm header; One
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

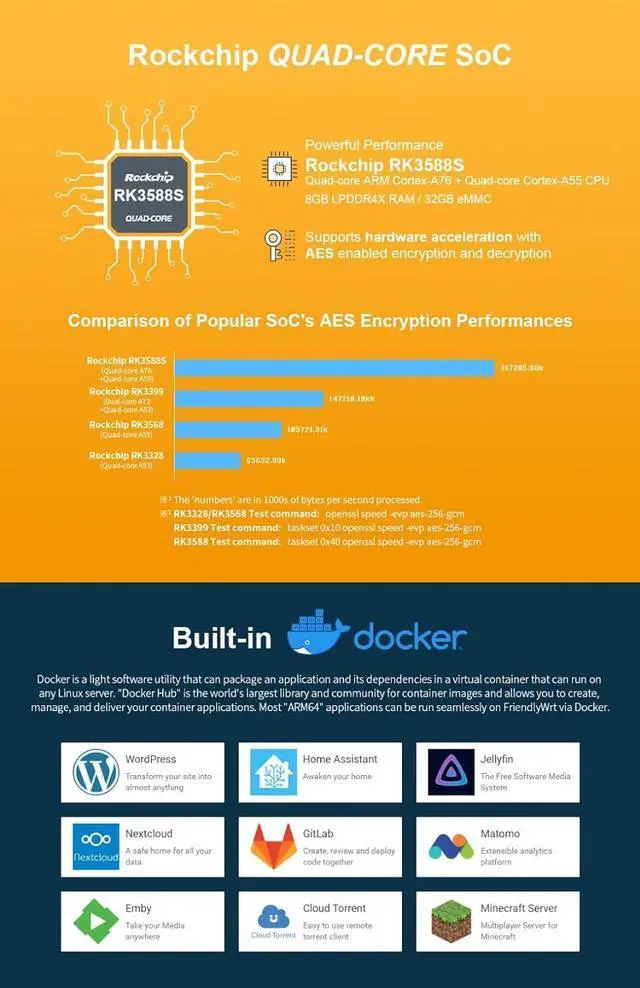

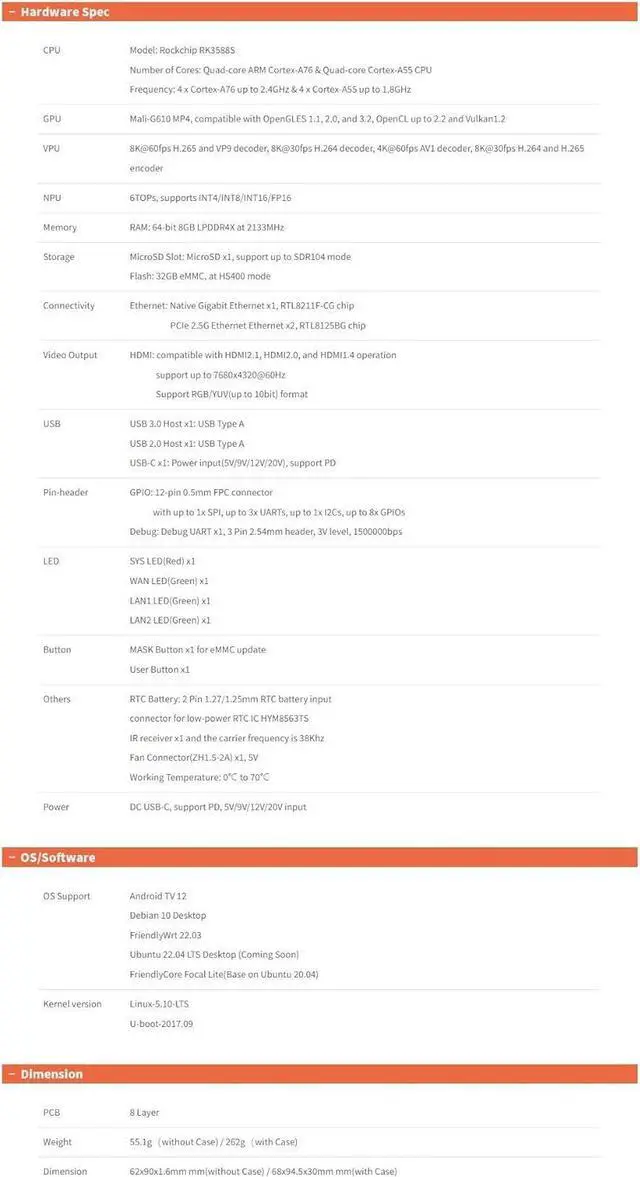

CPU: Rockchip RK3588S
---Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder
4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 8GB LPDDR4X at 2133MHz
Storage:32GB eMMC, support NVME SSD or MicroSD
Ethernet:
Native Gigabit Ethernet x1 (RTL8211F-CG chip)
PCIe 2.5G Ethernet Ethernet x1 (RTL8125BG chip)
M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
Nanopi R6S Mini Router with High Performance Nanopi R6S Mini Router support High-speed Data Transfer
---Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder
4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 8GB LPDDR4X at 2133MHz
Storage:32GB eMMC, support NVME SSD or MicroSD
Ethernet:
Native Gigabit Ethernet x1 (RTL8211F-CG chip)
PCIe 2.5G Ethernet Ethernet x1 (RTL8125BG chip)
M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
Nanopi R6S Mini Router with High Performance Nanopi R6S Mini Router support High-speed Data Transfer
