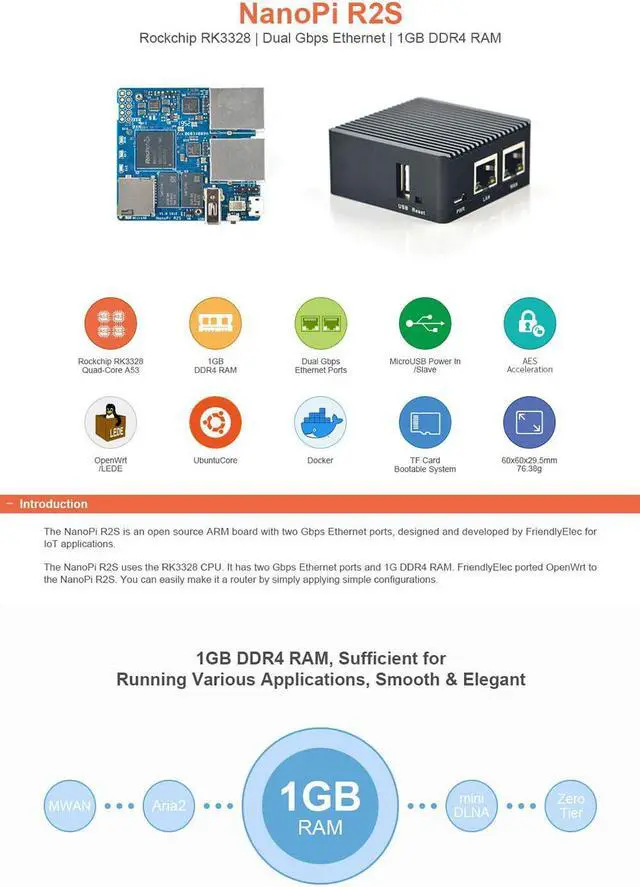

NanoPi R2S Open Source Mini Router with Dual-Gbps Ethernet Ports 1GB DDR4 Based in RK3328 Soc for IOT NAS Smart Home Gateway, Bundle with CNC Metal Case
- [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R2S can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G)+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
- [OPEN SOURCE & PROGRAMMABLE] It can support FriendlyWrt, which is a customized system based on an OpenWrt distribution. It is open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc
- [DUAL GBPS ETHERNET PORTS] The NanoPi R2S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a USB3.0.gets around 941 mbits/second download and upload
- [LARGER STORAGE & EXTENSIBILITY] 1GB RAM DDR4, up to 128GB MicroSD slot, USB 2.0 port x1 , Dual Gigabit Ethernet ports (1 WAN and 1 LAN)
- [ USER MANUAL & PACKAGE CONTENTS]WIKI:https://youyeetoo.com/blog/nanopi-r2s-ys107-57. NanoPi R2S Portable MINI Router with 1-year limited warranty.Package include: NanoPi R2Sx1;Heat sink with cooling
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

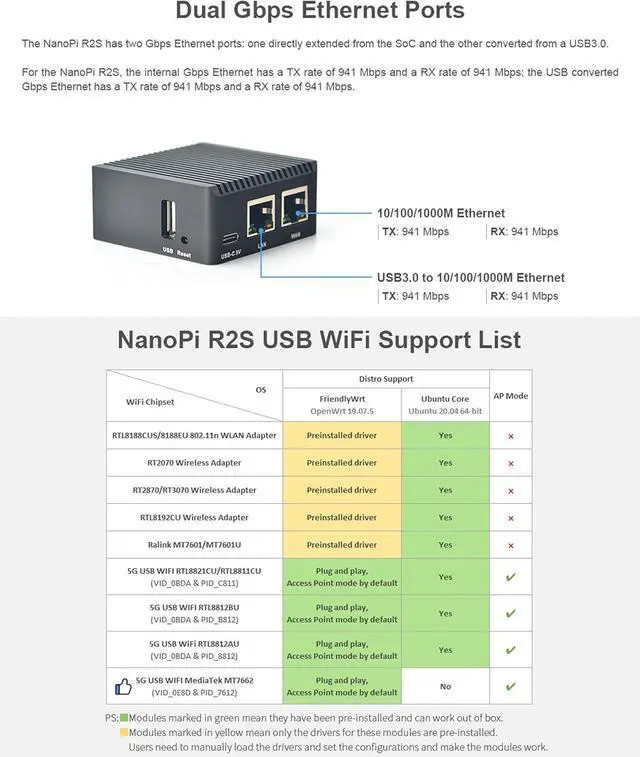

The NanoPi R2S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a USB3.0.
For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
The USB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
Ethernet: Gbps Ethernet x1
USB 3.0 to Gbps Ethernet x1
USB 2.0 Host x1: USB Type A
USB-C x1: Power input(5V/2A) and Slave
Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
SYS LED(Red) x1WAN LED(Green) x1LAN LED(Green) x1

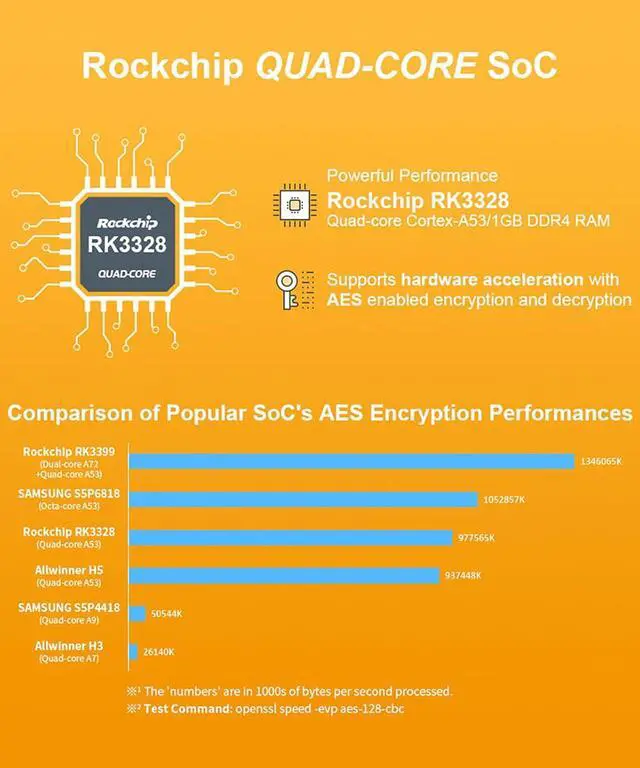

CPURockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.3GHz
Memory: 1GB DDR4 RAM
StorageMicroSD Slot: MicroSD x1 for external storage up to 128GB
NanoPi R2S Wireless Mini Wifi Router support Dual Gbps Ethernet NanoPi R2S Wireless Mini Router with Rich interface NanoPi R2S Open Source Mini Router with High Performance Chip NanoPi R2S Router support USB WiFi Module NanoPi R2S Wireless Mini Router support FriendlyWrt with docker
For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
The USB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
Ethernet: Gbps Ethernet x1
USB 3.0 to Gbps Ethernet x1
USB 2.0 Host x1: USB Type A
USB-C x1: Power input(5V/2A) and Slave
Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
SYS LED(Red) x1WAN LED(Green) x1LAN LED(Green) x1
CPURockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.3GHz
Memory: 1GB DDR4 RAM
StorageMicroSD Slot: MicroSD x1 for external storage up to 128GB
NanoPi R2S Wireless Mini Wifi Router support Dual Gbps Ethernet NanoPi R2S Wireless Mini Router with Rich interface NanoPi R2S Open Source Mini Router with High Performance Chip NanoPi R2S Router support USB WiFi Module NanoPi R2S Wireless Mini Router support FriendlyWrt with docker
