Outdoor WiFi Omni Directional Antenna, Dual Band 2.4GHz 5GHz 12dBi High Gain Long Range WiFi Antenna for Wireless Access Point/Wi-Fi Camera/Wireless Router, RP-SMA,SMA Male
- Outdoor WiFi antenna Supports All Wireless Standards, Supports Dual Band 2.4GHz 5GHz 5.8GHz.
- Higher the gains, Great Distance: This 12dBi long range WiFi antenna gain more wireless distance. In ideal conditions without obstructions, the range will be longer.
- WiFi antenna Work for wireless devices with external antenna interfaces (SMA male or RP-SMA), as wi-fi camera, wireless router, outdoor access point, PCI WiFi adapters.
- Omni directional WiFi antenna Suitable for installation on rooftops, RVs, boats - enhance your wireless network in warehouses, schools, hospitals and more.

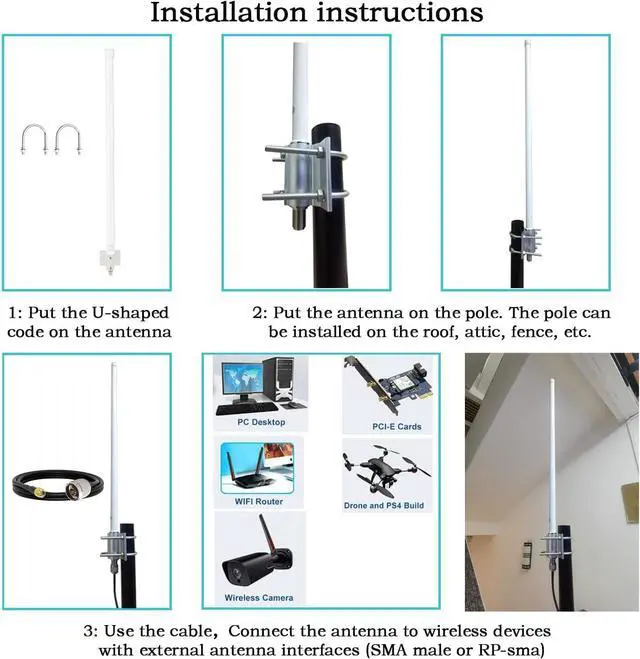

- Easy Installation: Put the U-shaped clip on the antenna, hang it on your pole, and then connect the antenna to your equipment with wires.
- The package includes 5 Meter 50 ohms RG58 cable with RP- SMA connector, one SMA male adapter.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

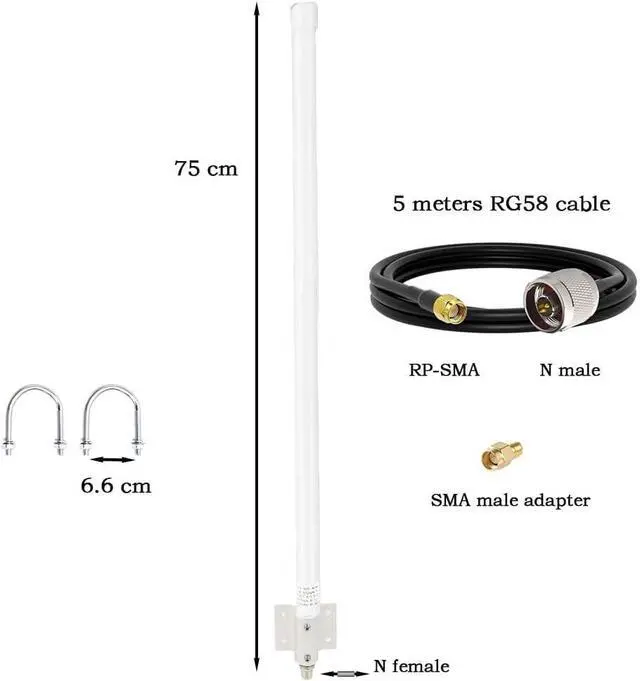

Package Listing:
one Outdoor WiFi antenna,
one set U-bracket,
one 5meters cable with RP-SMA connector,
one SMA male adapter.
Specifications Data
Frequency: dual band 2.4GHz/ 5.8GHz ( 2400-2483 MHz/5150-5850 MHz).
Gain: 12 dBi.
Antenna Length-cm: 3.2x75.
Weight-kg: 1 kg.
Connertor: N female.
VSWR:<1.5:1.
Polarization: Vertical.
Horizontal Beamwidth: 360°.
Vertical Beamwidth: 7°.
Nominal Impedance: 50 Ohms.
Max Input Power: 100 W.
Mounting Method: Mast pole.
Mast Size: Ø40-Ø60mm.
Lightning Protection: DC Ground.
Radome Material: Fiberglass.
Operating temperature: -40 ~ +65 C.
one Outdoor WiFi antenna,
one set U-bracket,
one 5meters cable with RP-SMA connector,
one SMA male adapter.
Specifications Data
Frequency: dual band 2.4GHz/ 5.8GHz ( 2400-2483 MHz/5150-5850 MHz).
Gain: 12 dBi.
Antenna Length-cm: 3.2x75.
Weight-kg: 1 kg.
Connertor: N female.
VSWR:<1.5:1.
Polarization: Vertical.
Horizontal Beamwidth: 360°.
Vertical Beamwidth: 7°.
Nominal Impedance: 50 Ohms.
Max Input Power: 100 W.
Mounting Method: Mast pole.
Mast Size: Ø40-Ø60mm.
Lightning Protection: DC Ground.
Radome Material: Fiberglass.
Operating temperature: -40 ~ +65 C.
