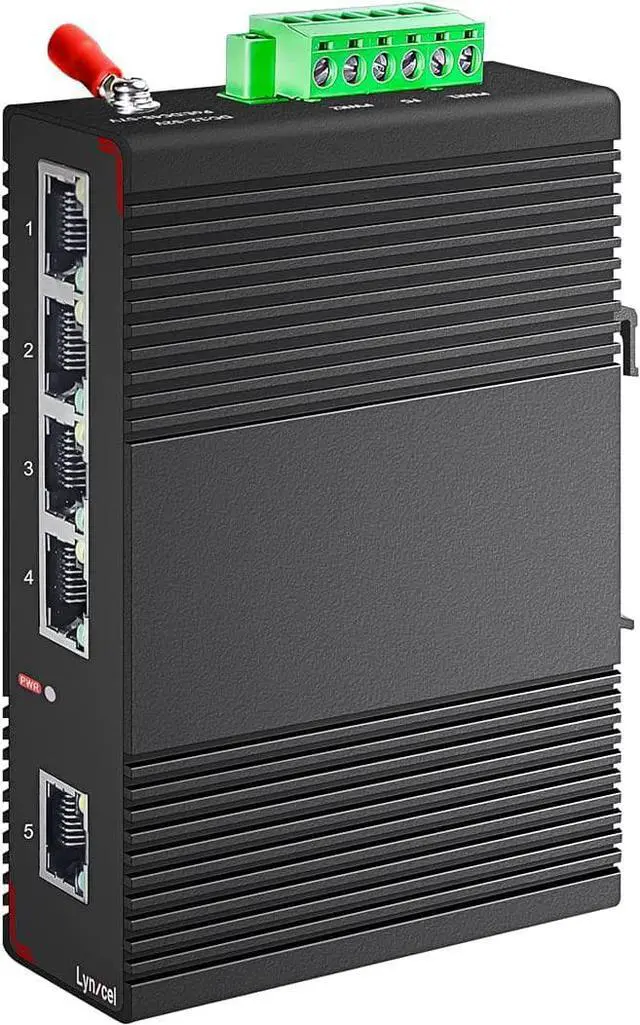

5-Port PoE Gigabit Industrial Ethernet Switch, 65W PoE Output, 4 x IEEE802.3af/at 30W PoE+, 10Gbps Switching Capacity, IP40 Rated Unmanaged Din Rail PoE Switch(with Power Supply)

Such as: Solar Power Energy, Manufacturing, Intelligent Transpotation, Factories, Warehouse, Refineries and Garage Wall, Vehicle, RV Park, Attic, Barn.

Such as : PoE cameras, wireless access points, access control, printer, router etc. (Standard 48V PoE Output)

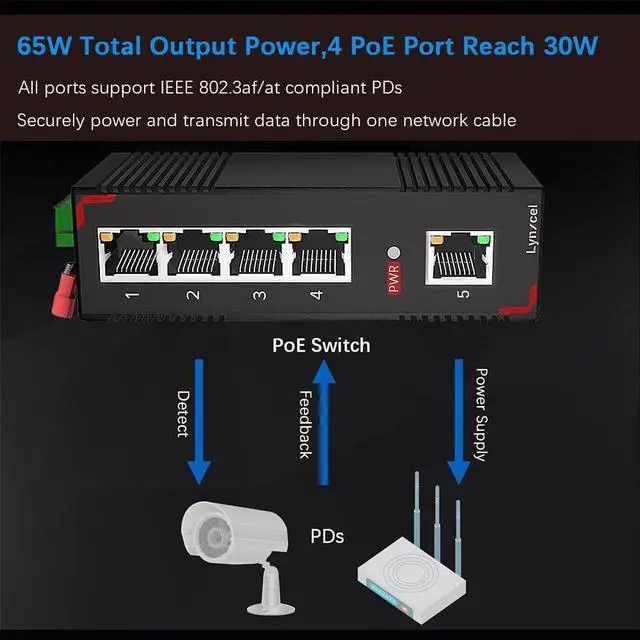

The total PoE Output of this industrial ethernet switch is 65W, each port can reach up to 30W.
Interface Parameters: 4x 10/100/1000Base-TX PoE port + 1x10/100/1000Mbps UpLink Port Auto-negotiation of Half-Duplex / Full-Duplex
Standards and Protocols: IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Full duplex and flow control IEEE 802.3af/at PoE
Temperature and Humidity: Operating Temperature : -40~185°F Relative Humidity: 5% to 95% non-condensing
Switch Properties: Switching Capacity: 10Gbps Forwarding Rate: 1.488Mbps MAC Address Table: 2K Packet Buffer: 2MB Jumbo Frame: 9KProtection GradeIP40Installation: DIN-Rail
Delay Time: <3s
Power Characteristics: Power Input : DC 12~52V PoE Standard : IEEE 802.3af/at PoE PoE Power Budget : 30W Per PoE Port Power Consumption : <4W Protection : Overload current protection, Reverse polarity protection
MTBF: >50,000Hrs
Cooling Method: No-fan, low power natural cooling
Stability: CE , FCC, RoHS IEC 60068-2-6 Fc (Vibration) IEC 60068-2-27 Ea (Shock) EN 61000-4-4 (Burst Standards) EN 61000-4-8 (Magnetic Field Standards) EN 61000-4-5 (Surge Standards): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
Processing Type: Store and Forward
Lynxcel Industrial gigabit PoE ethernet switch has 4KV power port surge protection and 2KV network port, grounding design can effectively anti-lightning and electrostatic interference, suitable for the harsh electromagnetic environment.
This industrial PoE+ switch is designed in strict accordance with the industrial temperature of -40~185°F, selects industrial-grade devices, adopts a fanless low-power heat dissipation design, and is fearless against extreme temperatures, ensuring that the equipment can work stably for a long time within this temperature range.

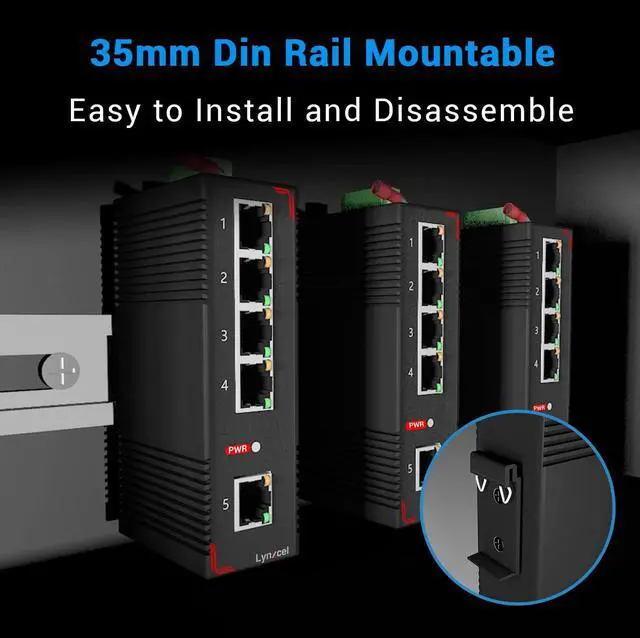

Adopt 35mm standard DIN-rail design, easy to install. It can be installed in a control box with compact space, and can be integrated into industrial control automation, equipment integration and monitoring electric box.

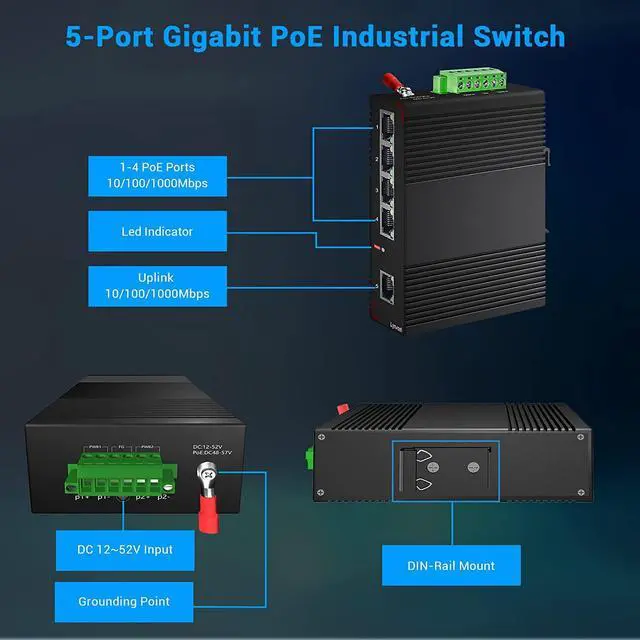

Dual Redundant Power Inputs: When one of the DC power is fail, the relay will be trigger.
Please Note for installing power wires: When installing power wires, insert the power wires into corresponding polarity signal holes. Insert the Red wire into P1+ or P2+, and the Black wire into P1- or P2-, and tighten them to ensure that the power wires do not fall off when the industrial switch is moved, then plug it into the power outlet.
What's Included:
1 x 5-Port Gigabit PoE Industrial Ethernet Switch
1 x 65W AC Power Adapter
1 x One Meter Power Cable
1 x User Manual
