Please note that the first time the device is turned on, it will check the memory, so it will take about 30 seconds to turn on. Please be patient and wait.
CPU: Intel Core i3-3217U (3M Cache, Dominant frequency 1.80 GHz)
AES-NI Supported: Yes
Memory: 1 x SODIMM DDR3L 1333 MHz, max.32GB
Storage: 1 x mSata SSD and 1 x 2.5 SATA SSD/HDD
Dispaly Port: 1 x VGA, 1 x HDMI (HDMI is optional ,add need extra cost if need)

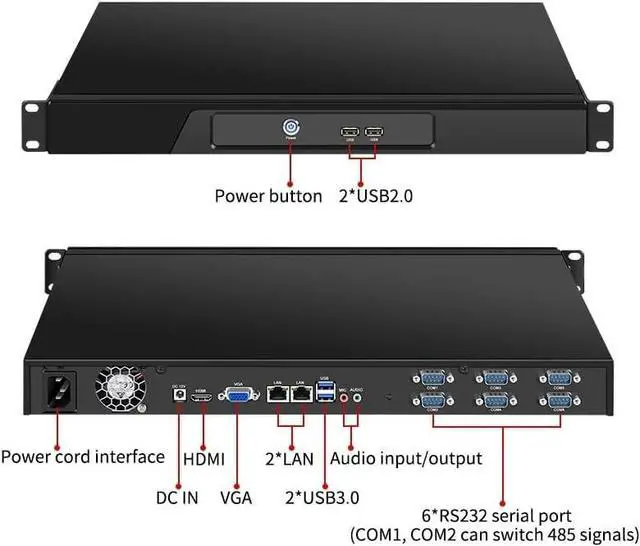

I/O: Power button 2*USB2.02*USB3.0Power cord interfaceHDMIVGA2*LAN network portAudioMIC6*RS232 serial port (COM1, COM2 can switch 485 signals)
Chassis: 1u 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 2 x Intel RTL 8111 Gigabit
WAN-LAN Throughput: The throughput forwarding stability from LAN to WAN through 1000MB Gigabit Ethernet card exceeds 2.5GB
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Dimension: 440 x 250 x 45mm
Operation temperature: -0~+50 (commercial HDD), -20 ~+50 (industrial SSD), surface air flow
Ambient temperature: 5~90 relative humidity, non condensing
Packing List: firewall appliance, rackable ears, power cord, warranty card
Application: Firewall,VPN,Network server,Network security,Router etc.
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
COMPATIBILITY: Firewalls tested with pf-Sense, untangle, OPNsense and other popular open-source software solutions.
