Maswell 4X4 MIMO Antenna 5G, Up to 6dBi, 600-8000MHz Omni External Antenna for 4G LTE 5G Routers & Gateways for T-Mobile Verizon AT&T, WiFi 7 Ready, Homes and RVs (Full Kit)

Antenna Installation Tips
Signal Check First
Test RSRP around your house before installing.
Avoid spots with RSRP -120dBm (no antenna can help).

How to Test
Android: Use Network Cell Info Lite or LTE Discovery.
iPhone: Dial *3001#12345#* Check rsrp value.

Install where RSRP is strongest (usually least obstructed side).
Example: If north side shows -85dBm and south shows -115dBm, choose north.
Antenna Limits
Can improve weak signals (-110dBm to -90dBm).
Cannot create signal if none exists ( -120dBm).

For Dead Zones
Share the RSRP, and get guidance from Maswell.

(Note: Outdoor antennas only capture existing signals, not generate new ones.)

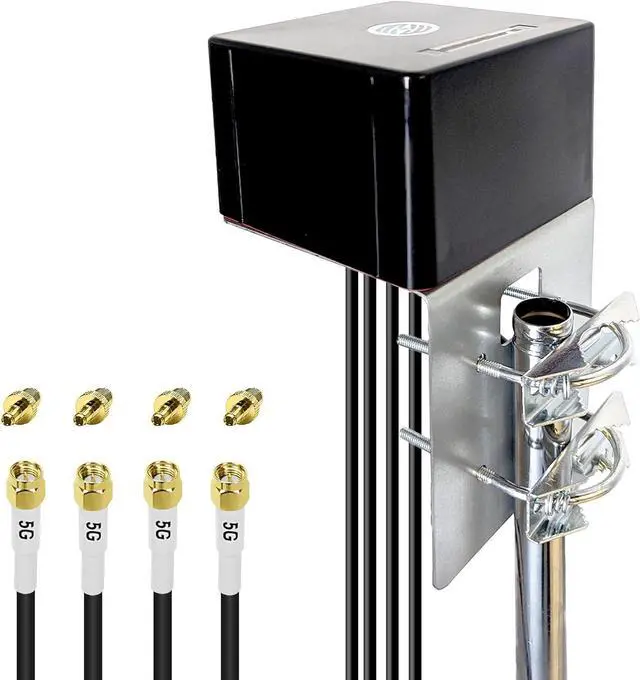

The Maswell Cubic 4C Cross-Polarized Omnidirectional Dipole Antenna serves as a long-term solution for enhancing outdoor cellular data performance, particularly well-suited for motorhome camping, residential, and commercial buildings.

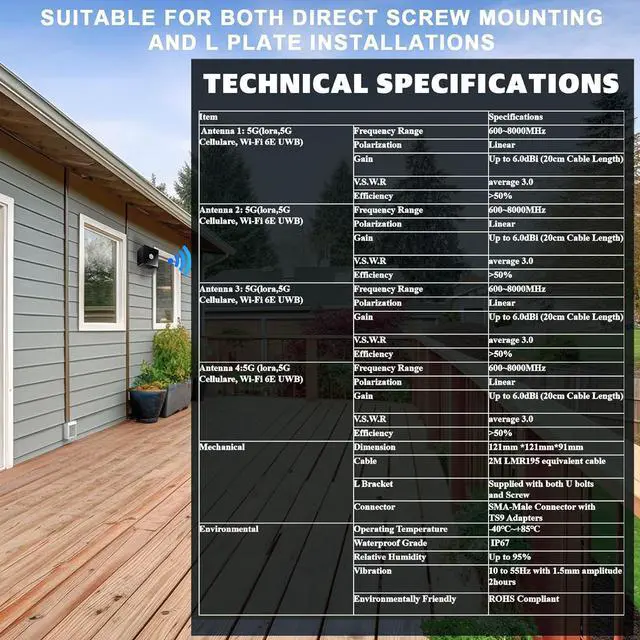

Boasting up to 6dBi (tested with a 20cm cable length), coupled with a 2-meter ultra-low-loss LMR195 equivalent coaxial cable, it significantly outperforms many antennas in the market with only 3dBi gain. This allows for a considerable increase in signal strength, surpassing most antennas available.

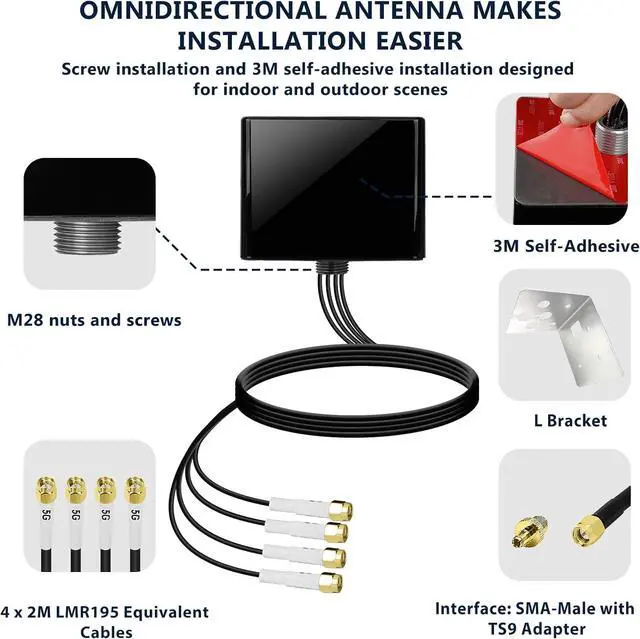

The 4x4 MIMO design enables multiple inputs and outputs, maximizing signal stability and data throughput. Its omnidirectional design simplifies installation compared to directional antennas, ensuring signal reception from all directions. The outstanding ease of use and stability make it excel in dynamic performance scenarios.

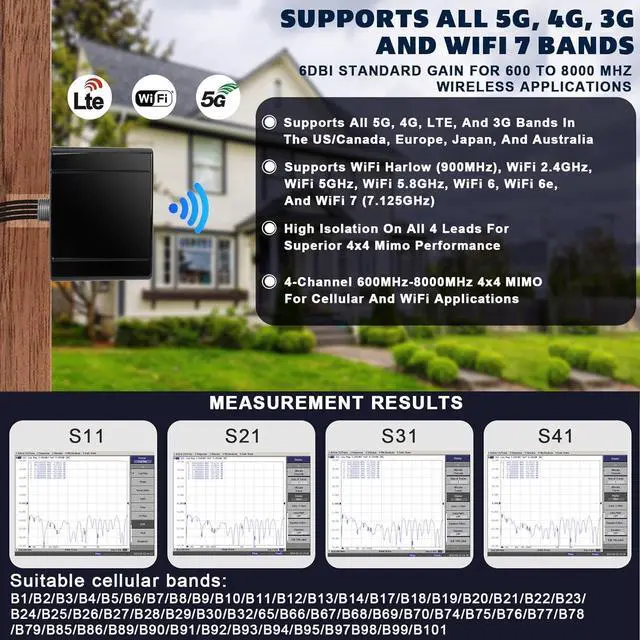

The 4X4 cellular MIMO antennas provide ultra-wideband performance from 600 to 8000 MHz, enabling use across different carriers and technologies and preparing cellular technologies for 5G applications up to 6 GHz as well as Wi-Fi applications up to 7.125 GHz.
The radiation patterns of all Maswell Cubic radiating elements provide a good balance between omnidirectionality, pattern diversity and good radiation capability at the required height, with an average gain of not less than 5 dBi, while remaining future-proof over a wide frequency band Ability.
Today, Maswell optimizes your network. Tomorrow, the world will recognize our antennas as benchmarks of quality.
