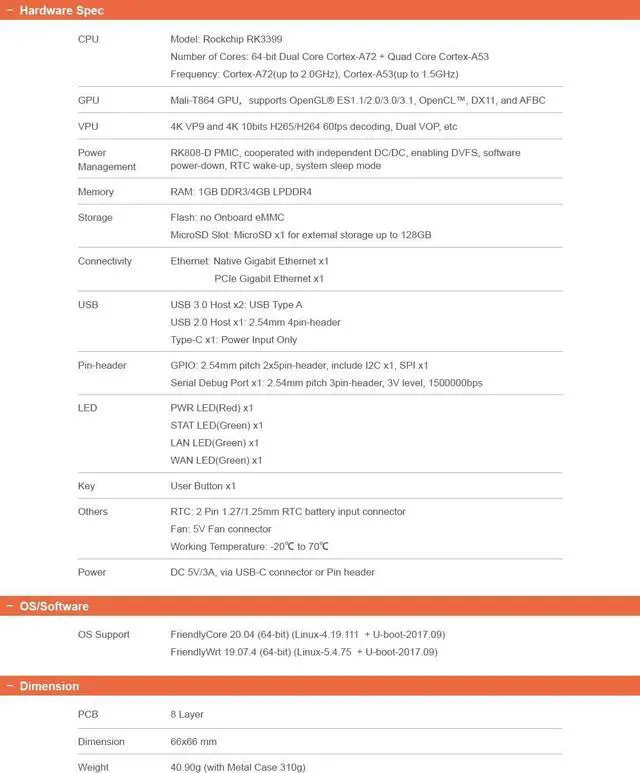

-Specification-

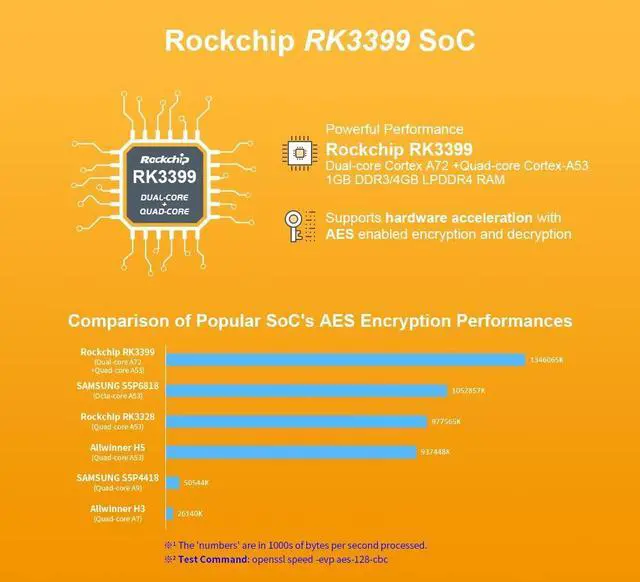

CPU: Model: Rockchip RK3399
Number of Cores: 64-bit Dual Core Cortex-A72+ Quad Core Cortex-A53
Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU: Mali-T864 GPU,supports OpenGLR ES1.1/2.0/3.0/3.1,OpenCL,DX11, and AFBC
VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual vOP, etc
Power ManagementRK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software
power-down, RTC wake-up, system sleep mode
Memory: RAM:4GB LPDDR4
Storage: Flash: no Onboard eMMC
MicrosD Slot: MicroSD x1 for external storage up to 128GB

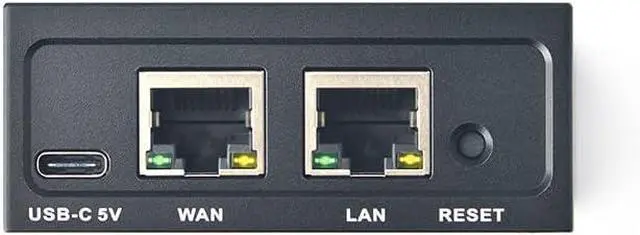

Connectivity:Ethernet: Native Gigabit Ethernet x1
PCle Gigabit Ethernet x1

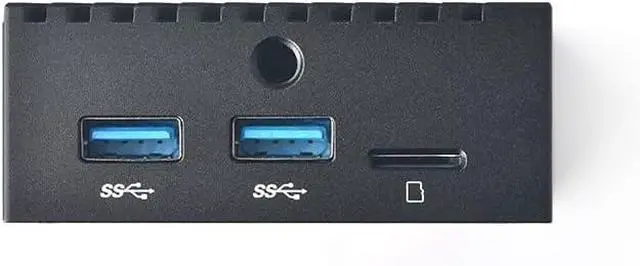

USB: USB 3.0 Host x2: USB Type A
USB 2.0 Host x1: 2.54mm 4pin-header
Type-C x1: Power Input Only
Fan: 5V Fan connector
Working Temperature: -20° to 70°
Power: DC 5V/3A, via USB-C connector or Pin header
-OS/Software-
FriendlyCore 20.04(64-bit)(Linux-4.19.111 + U-boot-2017.09)
FriendlyWrt 19.07.4(64-bit)(Linux-5.4.75 + U-boot-2017.09)
-Dimension-
PCB: 8 Layer
Dimension: 66 x 66 mm
Weight: 40.90g (with Metal Case 310g)
-Package Content-

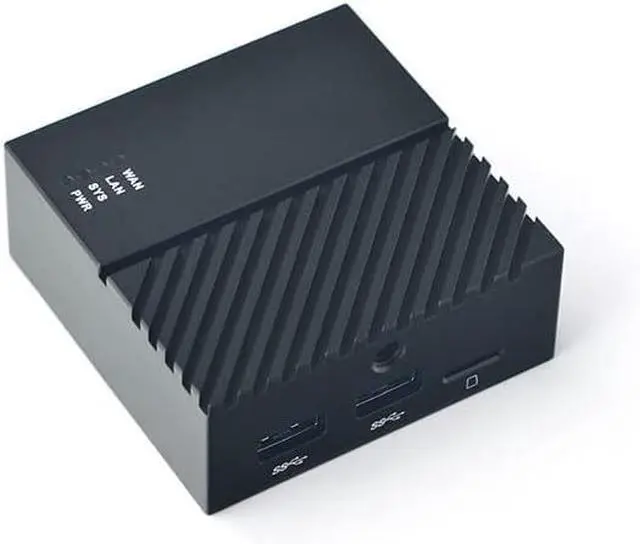

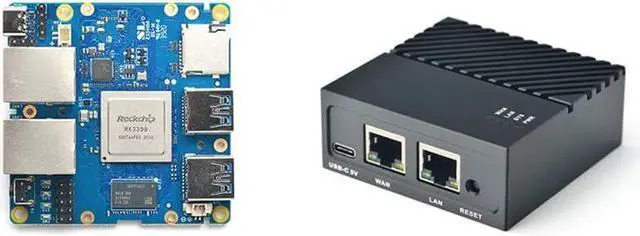

NanoPi R4S 4GB RAM with Metal Case * 1 (Standard Version-Without MAC chip)
