Inscape Data Managed Outdoor IP68 Contractor-Grade PoE Switch, LPS1800AFM-T1, 10/100Mbps, IEEE 802.3af/at, 2X Combo Gigabit SFP Fiber/RJ45 Uplink, 150W

IP68 All Weatherproof For outdoor networks applications
Port security, allows setting different security levels on each port with a password, 802.1x, IP & MAC address Guard, RADIUS, & TACACS+
Transfer data up to a distance of 120Km from the SFP fiber port to a remote control center
Port thermal protection and Powerful anti-electromagnetic interference feature

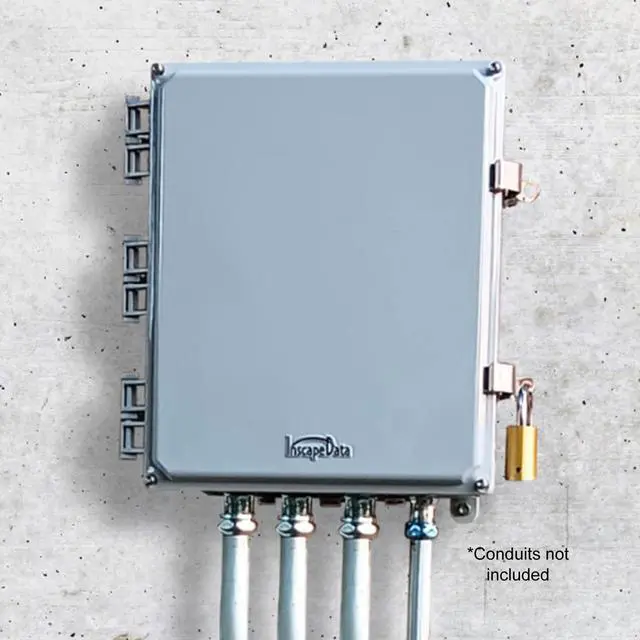

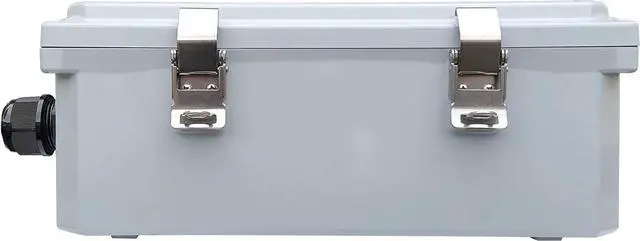

Small Footprint Enclosure - 12x10x4 Inch Dimensions

Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x,IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1W, SNMP, IGMP standards
Four to eight 10/100Mbps self-sensing RJ45 ports, support IEEE802.3af/at PoE power based on the models
Two gigabit SFP fiber ports are capable of high bandwidth and long distance transmission
All ports support auto-flip (Auto MDI/MDIX)
Each PoE port can provide power up to 15.4W & 30W based on the sub-models

150W total system power for all eight ports. Average of 15.4W per PoE Port, Not to Exceed 150W for a Total of 8 PoE ports
For terminal equipment, i.e., powered devices, such as weather-proof IP cameras, high-performance wireless AP, and industrial IP telephony.

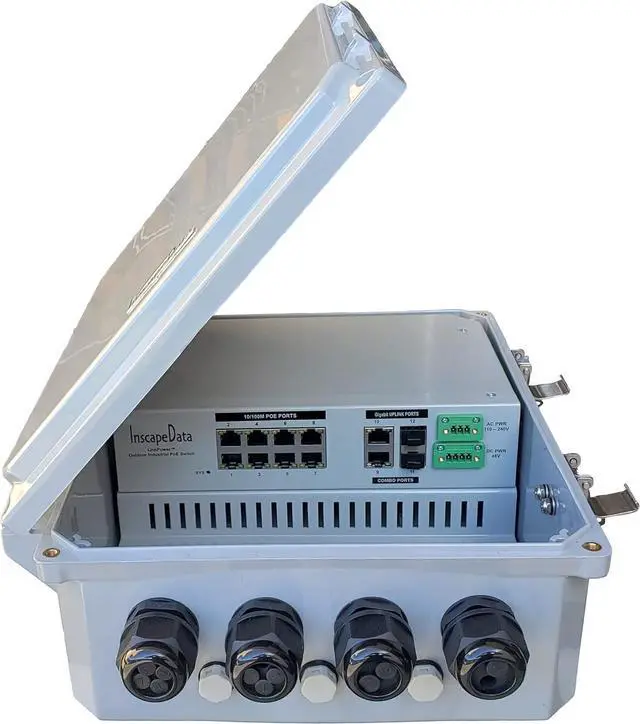

Managed 10 Port Gigabit PoE Switch with 8 PoE Ports and 2 Combo Gigabit SFP/RJ45 Portand dual power input redundancy, i.e. (120V~240AC and/or 48V DC)
Port configuration, i.e., enable/disable, speed control PoE configuration, i.e., PoE modes (802.3af & 802.3at), scheduling, & PoE Priority
supports VLAN, GVRP, Dynamic VLAN MAC Address Authentication, IGMP, LACP Aggregation, STP/RSTP, ERPS, & LLDP
Switch management via web-based (web browser) or Command Line Interface (CLI)
QoS per port on policing, scheduler, traffic shaping, and store control

PortsManaged 10 Port Gigabit PoE Switch with 8 10/100Mbps PoE Ports and 2 Combo Gigabit SFP/RJ45 PortPower supplyUp to 30W and an Average of 15.4W per PoE Port, Not to Exceed 150W for a Total 8 PoE Ports, Up to 30W per PoE Port, Not to Exceed 150W for a Total 8 PoE PortsPerformance SpecificationsWorking temperature from -30C ~ +70C at full loadData Transfer Rate10/100Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports INSCAPE DATA AWARDS IP68 All Weatherproof Managed 10 Port Gigabit PoE Switch with 8 PoE Ports and 2 Combo Gigabit SFP/RJ45 Port LPS1800AFM-T1 (150W) Version: All-in-One-Box Outdoor LinkPower LPS1800FE-T1 PoE (Power over Ethernet)Managed Switch series Outdoor PoE Switch Installations
