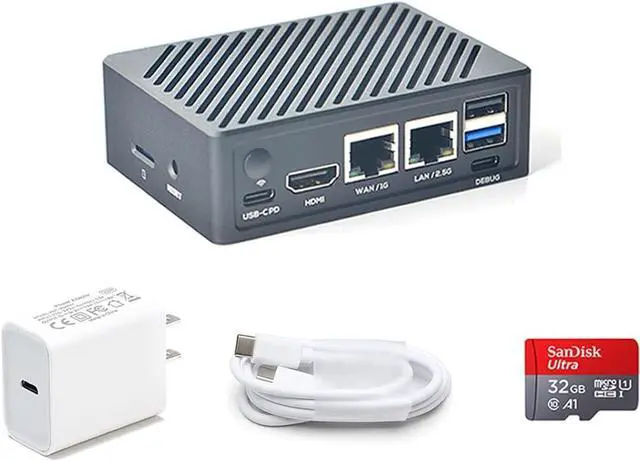

Nanopi R6C Mini Computer Routers with LPDDR4X 4GB RAM 6Tops NPU Mali-G610 GPU RK3588S Soc for NAS IOT Smart Home Gateway Support Gigabit Ethernet PCle M.2 NVME SSD (with PD Power & 32GB TF Card)
- [Rockchip RK3588S SoC] The NanoPi R6C is an open-sourced mini IoT gateway device.CPU: Rockchip RK3588S Chip with 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz. GPU: Mali-G610 MP4; NPU: 6TOPs. Memoy: 64-bit LPDDR4X 4GB RAM at 2133MHz, None eMMC at HS400 mode.
- [Smart IoT Gateway] NanoPi R6C mini computer routers can support FriendlyWrt, a custom system based on the OpenWrt distribution. Support open source and programmable for developing IoT applications, NAS applications, smart home gateways, and more.
- [Rich Hardware Resources] The NanoPi R6C wifi router has rich hardware resources. With 1x HDMI port, 1x M.2 NVME port, 1x USB type-C power delivery port, 2x USB ports, support external USB Wifi Adapter. Onboard M3 PCB nut for mounting M.2 2280 module.
- [PCIe Gigabit Ethernet] PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc. Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip, PCIe 2.5G Ethernet Ethernet x1, RTL8125BG chip.
- [OS/Software] Nanopi R6C mini router s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU: Rockchip RK3588S
---Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder
4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHz
Storage: 4GB without eMMC, 8GB with 32GB eMMC, support NVME SSD or MicroSD
Ethernet:
Native Gigabit Ethernet x1 (RTL8211F-CG chip)
PCIe 2.5G Ethernet Ethernet x1 (RTL8125BG chip)
M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
---Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder
4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHz
Storage: 4GB without eMMC, 8GB with 32GB eMMC, support NVME SSD or MicroSD
Ethernet:
Native Gigabit Ethernet x1 (RTL8211F-CG chip)
PCIe 2.5G Ethernet Ethernet x1 (RTL8125BG chip)
M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
