NanoPi R76S SBC & Mini Router, RK3576 Octa-core SoC, Dual 2.5G Ethernet, 6TOPS AI Acceleration,Up to 16GB LPDDR5 RAM, 4K Video Decoding (LPDDR4X 2GB+32GB eMMC,with Power,Single Board)

The NanoPi R76S (as R76S) is an open-sourced mini IoT gateway device with two 2.5G, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3576 CPU. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.
The NanoPi R76S has rich hardware resources with a compact sizem.
The NanoPi R76S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
Sd: Use it when you need to boot the entire OS from the SD card
Eflasher: Use it when you need to flash the OS to eMMC/UFS via TF card
Usb: Use it when you need to flash the OS to eMMC/UFS via USB

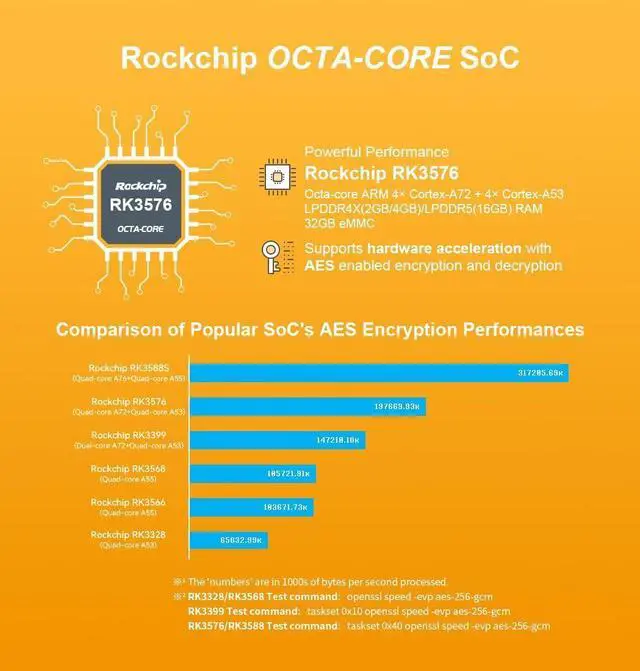

The RK3576 processor features an octa-core architecture, comprising four Cortex-A72 cores operating at 2.2GHz and four Cortex-A53 cores at 1.8GHz, delivering a computing performance of up to 58,000 DMIPS. Additionally, it integrates an NPU with 6 TOPS of AI processing power.
Previous pageNext page


The NanoPi R76S has rich hardware resources with a compact sizem. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well.
Show as Picture
NanoPi R76S SBC & Mini Router, RK3576 Octa-core SoC, Dual 2.5G Ethernet, 6TOPS AI Acceleration,Up to 16GB LPDDR5 RAM, 4K Video Decoding (LPDDR4X 2GB+32GB eMMC,with Power,Single Board)
