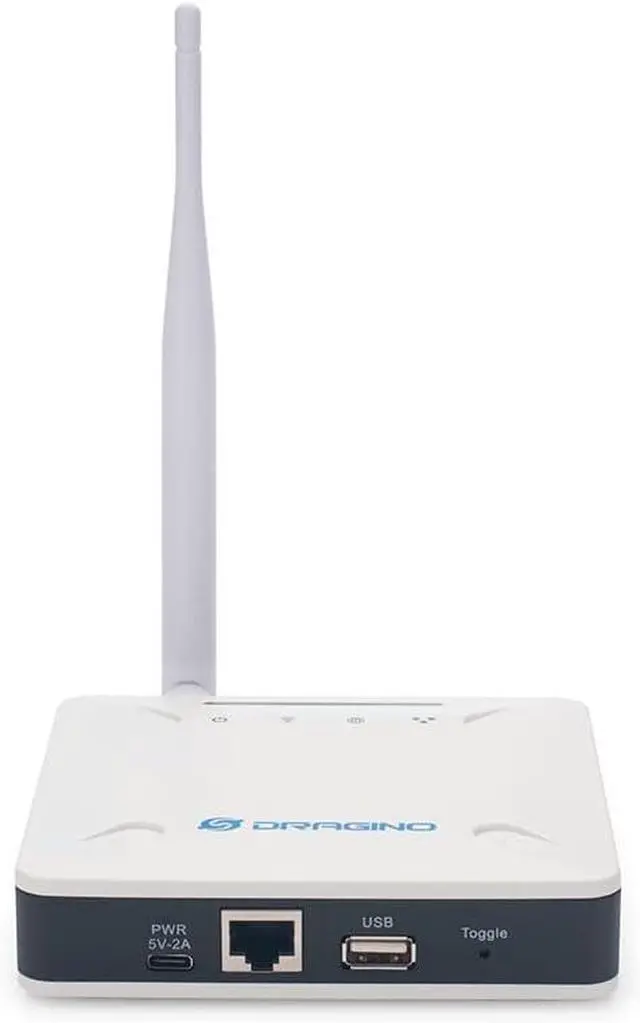

LPS8N Indoor LoRaWAN Gateway - No

The Dragino LPS8N Indoor LoRaWAN Gateway is an open-source LoRaWAN Gateway. It enables IoT Users to bridge LoRa wireless network to an IP network via WiFi or Ethernet. The LoRa wireless Lets users send data and reach extremely long ranges at low data rates.



LPS8N LoRaWAN Gateway uses a Semtech packet forwarder, and it is fully compatible with the LoRaWAN protocol. It includes an SX1308 LoRa concentrator, which provides 10 programmable parallel demodulation paths.

LPS8N Gateway has pre-configured standard LoRaWAN frequency bands to use for different countries. Users have the option to customize the frequency bands to use in their own LoRa network.



10 programmable parallel demodulation paths
LoRaWAN Gateway
Open Source OpenWrt system
Managed by Web GUI, SSH via LAN or WiFi
Emulates 49x LoRa demodulators


LPS8N Indoor LoRaWAN Gateway Applications:

Smart Buildings & Home Automation
Logistics and Supply Chain Management
Smart Metering
Smart Agriculture
Smart Cities
Smart Factory


LoRa Spec:

1 x SX1308 + 2 x 1257 LoRa Tranceiver

General Specification:

10M/100M RJ45 Ports x 1
1 x 2.4G WiFi (802.11 bgn)
1 x USB host port
Power Input via USB Type-C: 5V, 2A
Optional 4G version

Dimensions and Weight:

Device:

Size:120 x 120 x 30 mm/pcs
Weight: 187g

Package:

Size:145 x 135 x 60 mm/pcs
Weight: 300g

LPS8N Indoor LoRaWAN Gateway Highlights

Indoor LoRaWAN Gateway (915 MHz)
AWS-IoT Core LoRaWAN Certified
Offers bridge LoRa wireless network to an IP network via WiFi or Ethernet
Features an open-source OpenWrt system
Provides 1
