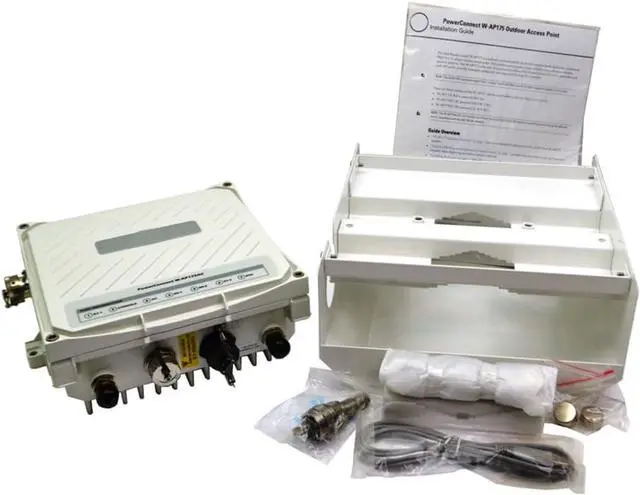

Outdoor Wireless Access Point Full Kit V2X9F 0V2X9F CN-0V2X9F Compatible Replacement Spare Part for Dell PowerConnect W-AP175AC Aruba AP-175AC

Outdoor Wireless Access Point Full Kit V2X9F 0V2X9F CN-0V2X9F Compatible Replacement Spare Part for Dell PowerConnect W-AP175AC Aruba AP-175AC.

Dell Model Number: PowerConnect W-AP175AC
Dell Part Number: V2X9F 0V2X9F CN-0V2X9F
Aruba Model Number: AP-175AC

Specifications

AP type Dual-radio, dual-band 802.11n outdoor
Supported frequency bands (country-specific restrictions apply)
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Transmit power Configurable in increments of 0.5 dBm
Maximum transmit power
- 2.4 GHz: Up to 25 dBm (limited by local regulatory requirements)
- 5 GHz: Up to 25 dBm (limited by local regulatory requirements)
Supported radio technologies
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
- 802.11n: 2x2 MIMO with two spatial streams
Supported modulation types
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Association rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11n packet aggregation: A-MPDU, A-MSDU
Antenna
- Quad, N-type female interfaces (2 x 2.4 GHz, 2 x 5 GHz) for external antenna support (supports MIMO)
Power 100-240 volt AC from external AC power source
Maximum power consumption 18 watts (excludes power consumed by any PoE device connected to and powered by W-AP175AC)
Mounting
- Wall or mast mounted using the mounting bracket supplied with the unit
Dimensions
- 10.2 x 9.4 x 4.1
Environmental
- Operating temperature -30o C to 55o C (-22o F to 131o F)
- Relative humidity 5% to 95% non-condensing
- Altitude Up to 3,000 meters (9,850 feet)
