ProfiNet to Modbus Gateway PN1-D25P 1/2 Network Port TIA Portal Step 7 Configuration RS485 RS422 Modbus Master and Slave (2 Network Port)
- Adopts standard Profinet protocol communication, and can be networked with PLC, configuration, configuration software tool, etc. Support Siemens PLC 200/300/1200/1500 full series

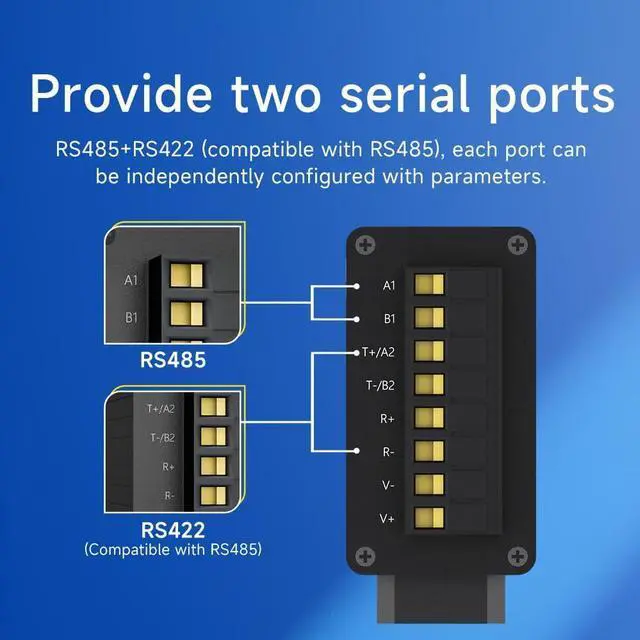

- Support SIMATIC Step 7 configuration software tool;Adopts standard Modbus RTU protocol and can be used as Modbus RTU slave or Modbus RTU master ; Support RS485+RS422 (compatible with RS485) dual serial ports, each channel can be independently configured with parameters
- Profinet and Modbus RTU protocol conversion; Dual network ports 10/100M adaptive, support switch function ;Supports 8~28V wide voltage input and has power reverse connection protection;With multiple protections such as static electricity, surge, and electric fast pulse group
- Easy configuration, no configuration software tool required, directly provide GSD file ; The device has built-in software and hardware watchdogs to ensure stable operation of the device and reliable data transmission
- Industrial-grade hardware design, aluminum alloy meta
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PN1-D25 series is a Profinet to Modbus RTU gateway used to map Modbus data to Profinet. Use GSD files for integration, code-free reading and writing of Modbus devices, and quickly set up data and transfer it to the PLC. The gateway provides 1 RS485 and 1 RS422 (compatible with RS485) interfaces, each supporting 32 command nodes, a total of 64 command nodes . The PN1-D25 PH supports two RJ45 Ethernet ports and has switch functions . All Modbus commands are loaded in module form , and the memory mapping relationship between Profinet and Modbus is intuitive and can be used in STEP 7 or query in TIA Portal software. You can load the status byte to query the connection status of the Modbus device and monitor the device status in real time .
