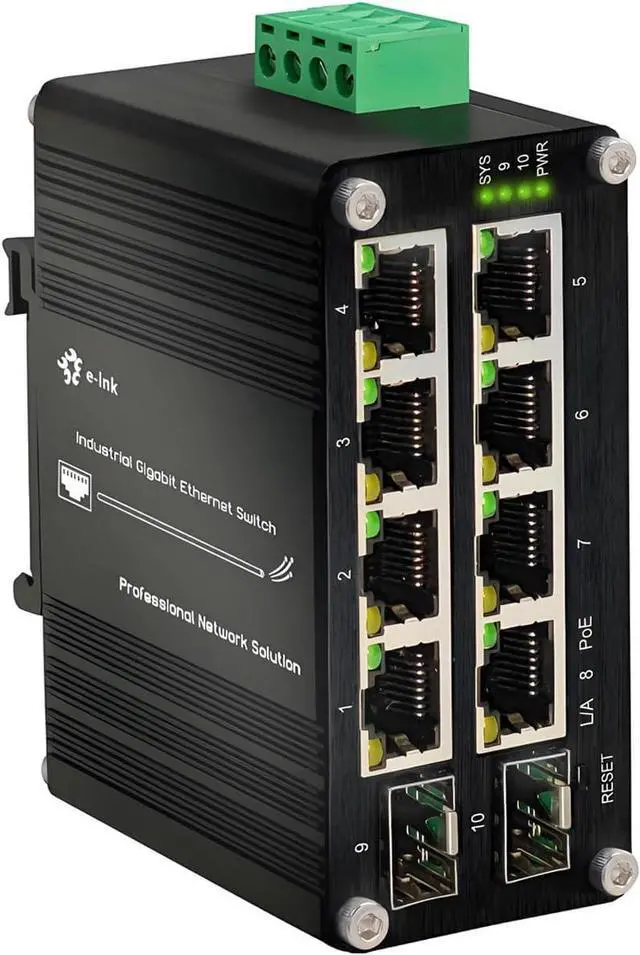

Industrial Passive 24V 8 Ports PoE Switch with 2 SFP Slot, 10/100/1000Mbps Gigabit PoE Switch Supporting Din Rail, 24V Input 24V Output Passive Switch (not Support VLAN Pass-Through)

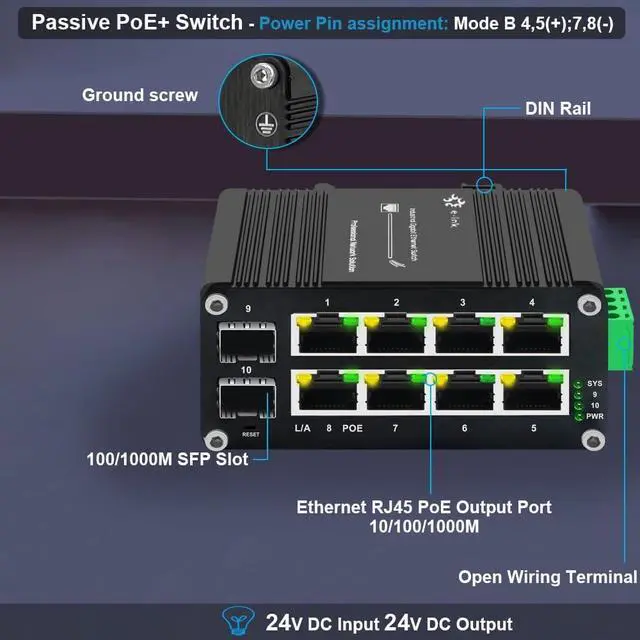

- 24V DC Input- The passive PoE switch supports 24V DC input and 24V PoE output. And its power pin assignment is 4/5(+), 7/8(-).

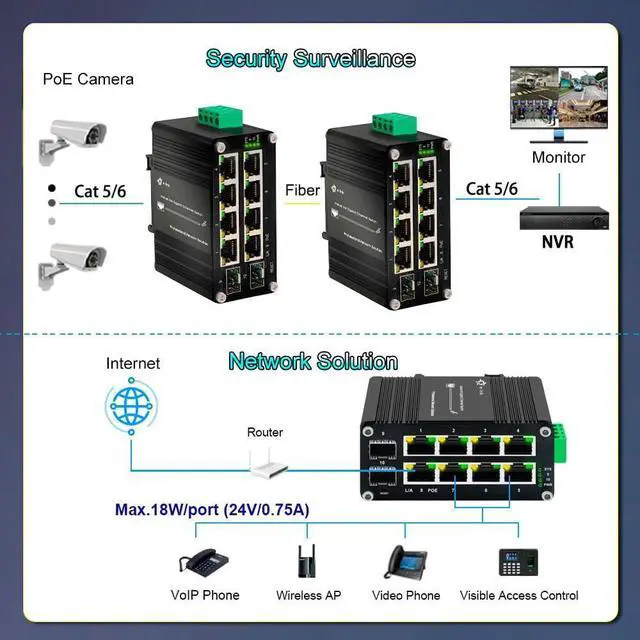

- 18W Per Port Output- Each PoE port delivers up to 18W, with a total PoE power budget of 144W, ideal for powering high-consumption devices like IP cameras and APs.
- 100/1000Base-FX & Ethernet Ports This industrial passive PoE switch features 2 Gigabit SFP slots supporting 100/1000Base-FX auto-negotiation and 8 RJ45 ports with 10/100/1000Mbps Ethernet speeds, all plug-and-play.

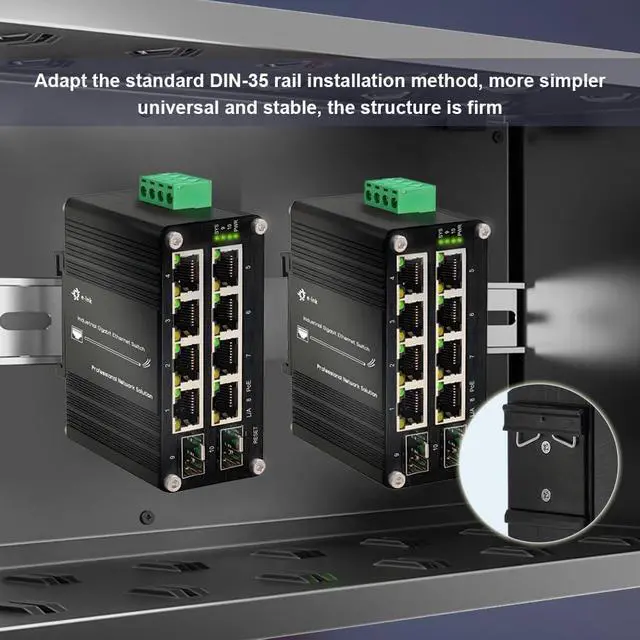

- Din-Rail Support The passive gigabit PoE switch come with 35mm din-rail mounting bracket, convenient to use.
- 3.74x2.76x1.85in Ultra Small- The passive 8 ports Ethernet PoE switch has smaller size than other 8 port switches, it only need small space to place it. Convenient and easy to install.
- Note- The passive 8 ports Ethernet PoE switch is Modified from a managed switch builted with RTL8370MB chipset, so it does . But it offer
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The industrial passive PoE switch features 2 x 100/1000Base-FX and 8 x 10/100/1000BASE-T Ethernet ports. It supports 24VDC power input and 24V PoE output. It also can operates in extreme temperatures (-40°C to 80°C) with its IP40 metal Al case, it's ideal for harsh industrial environments.
2 x 100/1000Base-FX
8 x 10/100/1000BASE-T ports
10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

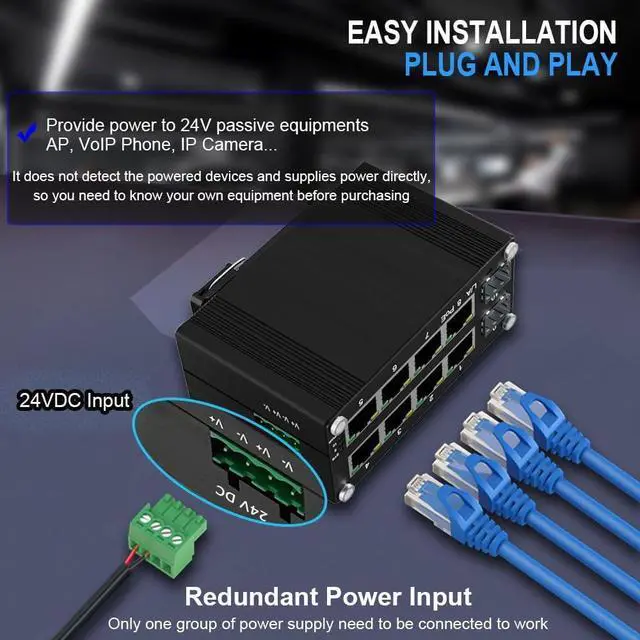

24VDC range power input, 24V PoE output
Supports DIN-Rail installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

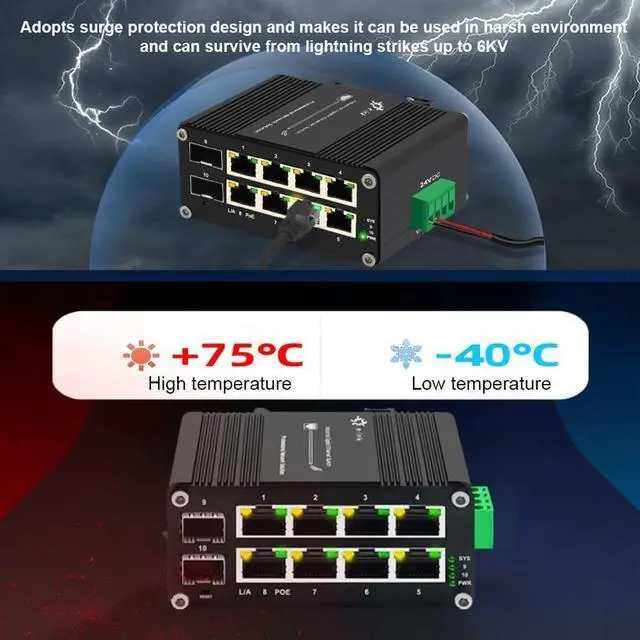

-40°C to 80°C (-40°F to 176°F) operating temperature
Package:
1*Passive 8 port poe switch with SFP
1*4-pin terminal
1*manual
Overview:
2 x 100/1000Base-FX
8 x 10/100/1000BASE-T ports
10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
24VDC range power input, 24V PoE output
Supports DIN-Rail installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
-40°C to 80°C (-40°F to 176°F) operating temperature
Package:
1*Passive 8 port poe switch with SFP
1*4-pin terminal
1*manual
Overview:
