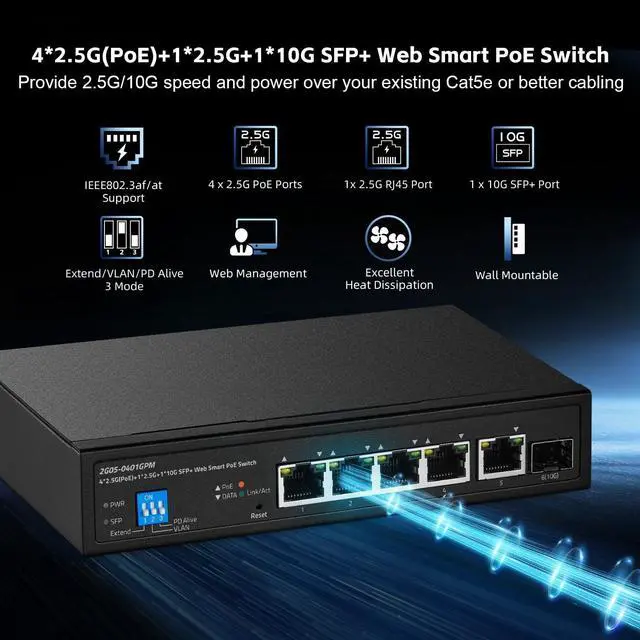

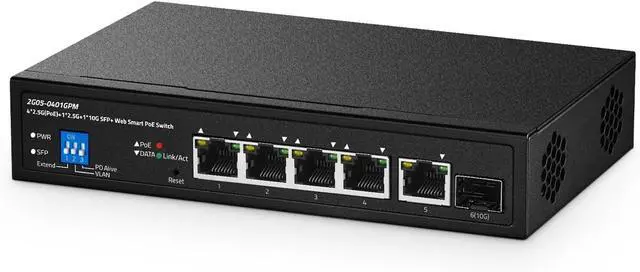

6 Port 2.5G PoE Managed Switch, 10G SFP+ Slot, IEEE802.3af/at 100W, Support Trunk/LACP/VLAN/QOS/Extender/Watchdog, Metal Multi-Gigabit Desktop/Wallmount Network Switch
- 2.5G and 10G Ports Includes 4 x 2.5 Gigabit POE ports, 1 x 2.5G Uplink Ports(not PoE), compatible with 10M/100M/1000M/2.5Gbps; 1x 10G SFP+ Slot support 1G/2.5G/10Gbps module. The total bandwidth is 45Gbps, Jumbo Frame 12KBytes

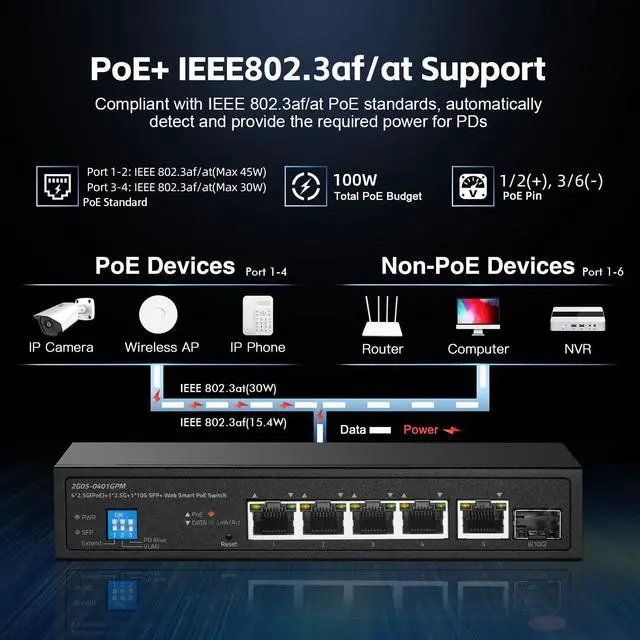

- IEEE 802.3 af/at Port 1-4 output IEEE 802.3af/at standard PoE, with internal 110W power supply, PoE Total Power 100W; port 1-2 max reached 45W; port 3-4 max reached 30W. Output voltage is 4457V,Poe Pn: 1/2(+)3/6(-), not supply power to passive 24V PoE.
- Easy Web ManagedSupport Web GUI, include various L2 configuration: such as Trunk, LACP, Isolation, Loop, Mirror, Bandwidth, VLAN, QoS, security, IGMP, MAC address, Monitor, POE port configuration and status query, etc. Also support device/port status query, data statistics, more clearly know the real-time operation status of switch
- One-click ExpansionSupports 3 dial code. Extend Mode: Ports 1-4 reduce speed to 10M, extending to an ultra-long distance of 250 meters; VLAN: Isolation mode, ports 1-4
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

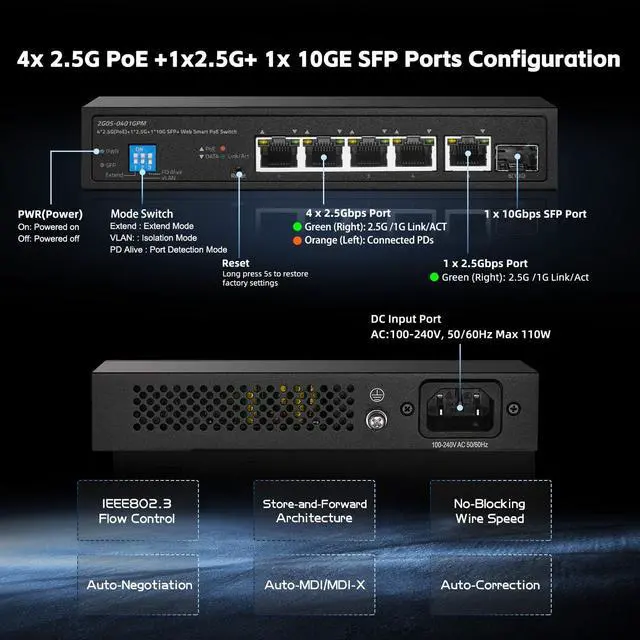

The 2G05-0401GPM is a Web Smart PoE switch, featuring 5x RJ45 ports compatible with 10M/100M/1000M/2.5Gbps speeds and 1 sfp+ slot for 1G/2.5G/10Gbps SFP+ fiber modules. Ports 1-4 support PoE power delivery, adhering to IEEE 802.3af/at standards - with Ports 1-2 offering a maximum of 45W per port.
It features 5 copper Ethernet ports, enables instant network expansion, and automatically delivers speeds of 100M, 1G or 2.5G to your devices.
Equipped with one SFP+ fiber port supporting 1G/10G connectivity, ideal for high-speed uplink to your core network.
Poe port 1-4 automatically detects and identifies standard PoE-powered devices (PDs) with intelligent power delivery, preventing damage to non-standard PoE devices or regular equipment.

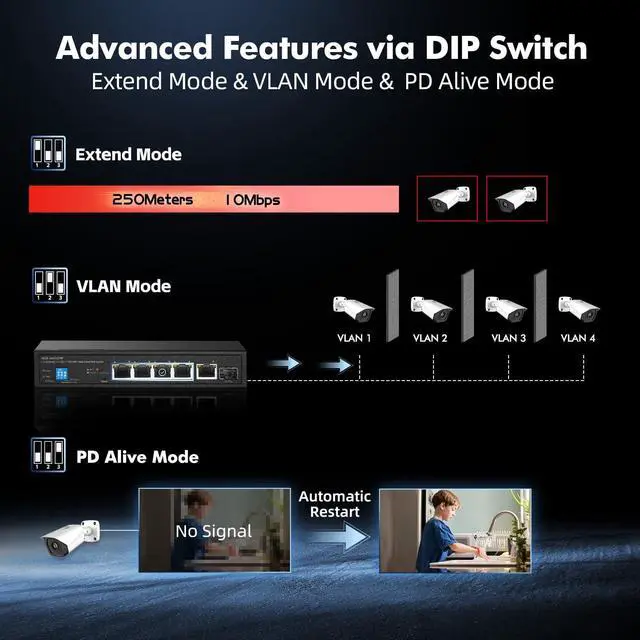

Three expansion switches are integrated on the front panel of the switch, enabling three modes: Extend/VLAN/PD-ALIVE.
Extend mode: Extends the PoE transmission distance to 250 meters.
VLAN mode: Isolates ports 1-4 from each other.
PD-ALIVE mode: Maintains stable power supply monitoring.
The switch is equipped with large heat sinks with fans, delivering superior heat dissipation performance. The metal chassis and EEE (Energy Efficient Ethernet) feature enable the switch to operate energy-efficiently.
Compact desktop & wall-mount form factor, Seamlessly adapts to your needs, configuration, and any operating environment.
Virtual Networks helps separate traffic within a businesssuch as isolated resources betweenbetween employees and public guestusers.
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
Link Aggregation combines multiple network connections toincrease throughput and protect against connection failure.
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

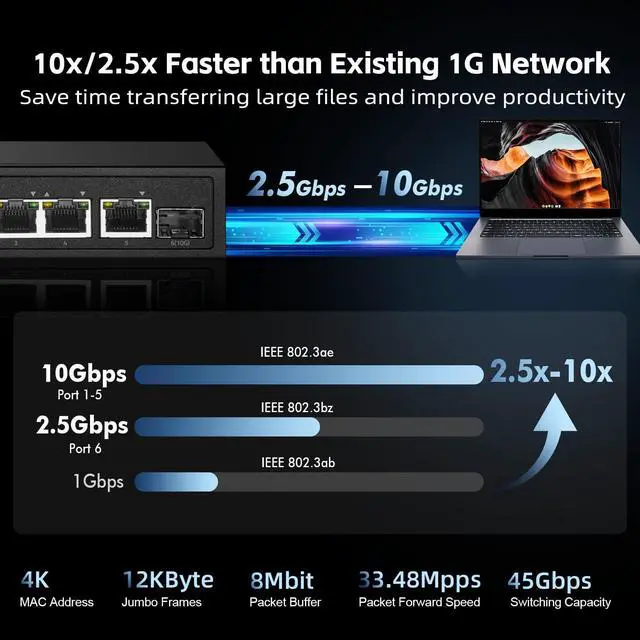

Model2G05-0401GPMInterface5*10M/100M/1000Mbps RJ45 Port +1*1G/2.5G/10Gbps SFP+ slotStandardIEEE802.3, IEEE802.3ae, IEEE802.1ab, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.3af, IEEE802.3atNetwork Media10BASE-TX:UTP category 3, 4, 5 cable (100m) 100BASE-TX:UTP category 5, 5e cable (100m) 1000BASE-X:UTP category 5e, 6 cable (100m) 2.5GBASE-X:UTP category 6, 6A cable (100m) 1000BASE-X: MMF, SMF modules 10GBASE-X: MMF, SMF modules 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)Switching Capacity45Gbps Packets Forwarding Rate33.28MppsMAC4KPort Buffer8MbitJumbo Frame12KBytesInput VoltageAC: 100-240V,50/60Hz, Total Power Supply: 110WPoEPoE Total Power: 100W,PoE Port: Port 1-4 PoE Output Voltage, Ports 1-2: 45W(Max), PoE Power On RJ45: 1/2(+), 3/6(-)EnvironmentWorking Temperature: 10 ~ 45, Storage Temperature: 40 ~ 85, Working Humidity: 10%~95% non-condensing, Storage Humidity: 10%~95% non-condensingSize(W*D*H)168*94*32mm Lightning Protection GradeDifferential mode ±2KV, common mode ±6KVElectrostatic StandardContact ±6KV, Air ±8KVSoftware FunctionLayer 2 features: VLAN, QoS, STP/RSTP, LACP, IGMP, Loop Prevention, PoE Config Multi-Speed Connectivity 1x10G SFP+ Slot IEEE 802.3af/at PoE Compliant Extend/VLAN/PD-ALIVE Mode Good heat Dissipation & Energy Efficiency Mounting Flexibility Virtual Networks (VLAN) Quality of Service (QoS) Link Aggregation (LACP) IGMP snooping Technical Specifications
It features 5 copper Ethernet ports, enables instant network expansion, and automatically delivers speeds of 100M, 1G or 2.5G to your devices.
Equipped with one SFP+ fiber port supporting 1G/10G connectivity, ideal for high-speed uplink to your core network.
Poe port 1-4 automatically detects and identifies standard PoE-powered devices (PDs) with intelligent power delivery, preventing damage to non-standard PoE devices or regular equipment.
Three expansion switches are integrated on the front panel of the switch, enabling three modes: Extend/VLAN/PD-ALIVE.
Extend mode: Extends the PoE transmission distance to 250 meters.
VLAN mode: Isolates ports 1-4 from each other.
PD-ALIVE mode: Maintains stable power supply monitoring.
The switch is equipped with large heat sinks with fans, delivering superior heat dissipation performance. The metal chassis and EEE (Energy Efficient Ethernet) feature enable the switch to operate energy-efficiently.
Compact desktop & wall-mount form factor, Seamlessly adapts to your needs, configuration, and any operating environment.
Virtual Networks helps separate traffic within a businesssuch as isolated resources betweenbetween employees and public guestusers.
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
Link Aggregation combines multiple network connections toincrease throughput and protect against connection failure.
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Model2G05-0401GPMInterface5*10M/100M/1000Mbps RJ45 Port +1*1G/2.5G/10Gbps SFP+ slotStandardIEEE802.3, IEEE802.3ae, IEEE802.1ab, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.3af, IEEE802.3atNetwork Media10BASE-TX:UTP category 3, 4, 5 cable (100m) 100BASE-TX:UTP category 5, 5e cable (100m) 1000BASE-X:UTP category 5e, 6 cable (100m) 2.5GBASE-X:UTP category 6, 6A cable (100m) 1000BASE-X: MMF, SMF modules 10GBASE-X: MMF, SMF modules 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)Switching Capacity45Gbps Packets Forwarding Rate33.28MppsMAC4KPort Buffer8MbitJumbo Frame12KBytesInput VoltageAC: 100-240V,50/60Hz, Total Power Supply: 110WPoEPoE Total Power: 100W,PoE Port: Port 1-4 PoE Output Voltage, Ports 1-2: 45W(Max), PoE Power On RJ45: 1/2(+), 3/6(-)EnvironmentWorking Temperature: 10 ~ 45, Storage Temperature: 40 ~ 85, Working Humidity: 10%~95% non-condensing, Storage Humidity: 10%~95% non-condensingSize(W*D*H)168*94*32mm Lightning Protection GradeDifferential mode ±2KV, common mode ±6KVElectrostatic StandardContact ±6KV, Air ±8KVSoftware FunctionLayer 2 features: VLAN, QoS, STP/RSTP, LACP, IGMP, Loop Prevention, PoE Config Multi-Speed Connectivity 1x10G SFP+ Slot IEEE 802.3af/at PoE Compliant Extend/VLAN/PD-ALIVE Mode Good heat Dissipation & Energy Efficiency Mounting Flexibility Virtual Networks (VLAN) Quality of Service (QoS) Link Aggregation (LACP) IGMP snooping Technical Specifications
