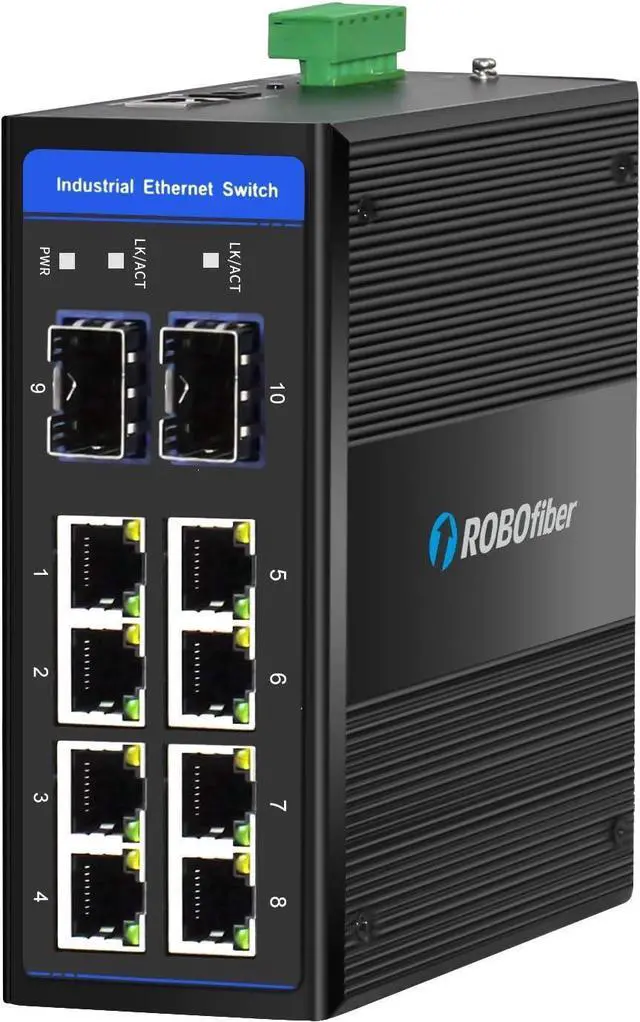

HGW-802SM-PSE - 8X RJ45 + 2X SFP Ports Gigabit Ethernet Managed PoE Industrial Fiber Switch 240W Total Power, DIN Rail Mount, -40 to +75 Celsius

8-Port 10/100/1000Base-T(X) copper ports and 2x 100/1000Base-X SFP slot, Auto-Negotiation and Auto MDI/MDI-X on each TP port, up to 30W of PoE+ power available on RJ45 ports, total PoE budget 240W

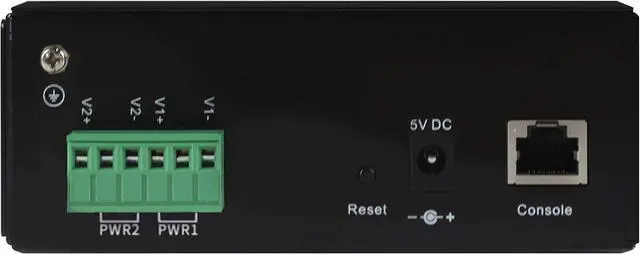

Redundant dual DC input Power 48VDC, Alarm Relay output with current carrying capacity of 1 A @24VDC, 240W of total PoE PSE budget, 802.3af/at compatible PoE ports, IP40 rugged metal housing with DIN rail and wall mounting options, wide operating temperature: -40~75°C, Dimensions: 108 x 49 x 138mm(D x W x H), Weight: 1.05kg
STP, RSTP, MSTP for redundant cabling; DHCP Server/Client/Relay/Snooping; QoS, CoS, bandwidth control for Ingress and Egress, Storm Control; Dynamic IEEE 802.3ad LACP Link Aggregation; Supports 6kV surge protection on all TP ports; Supports IEEE 802.1Q Tag VLAN and port VLAN
IGMP snooping V1/V2/V3, IGM P Filtering/ Throttling/ IGMP query; Port based and MAC based IEEE802.1X, RADIUS, ACL; Software upgrade via TFTP and HTTP; Port mirroring, System log, DNS, SNTP, LLDP; Web based management, SNMP v1/v2, Telnet
Switch Architecture Back-plane (Switching Fabric): 20 Gbps, Data Processing: Store and Forward, Flow Control: IEEE 802.3x, back pressure flow control; Broadcast Storm Protection, MAC Address Table: 4K, Packet Buffer Size: 2MB; UL508, CE, FCC, Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
