MS1-U16G Industrial Ethernet Switch, 16-Port Gigabit, Metal Housing, DIN-Rail Mount, 1.97x6.43x4.72 inch, 1.94 lb, 12-48VDC

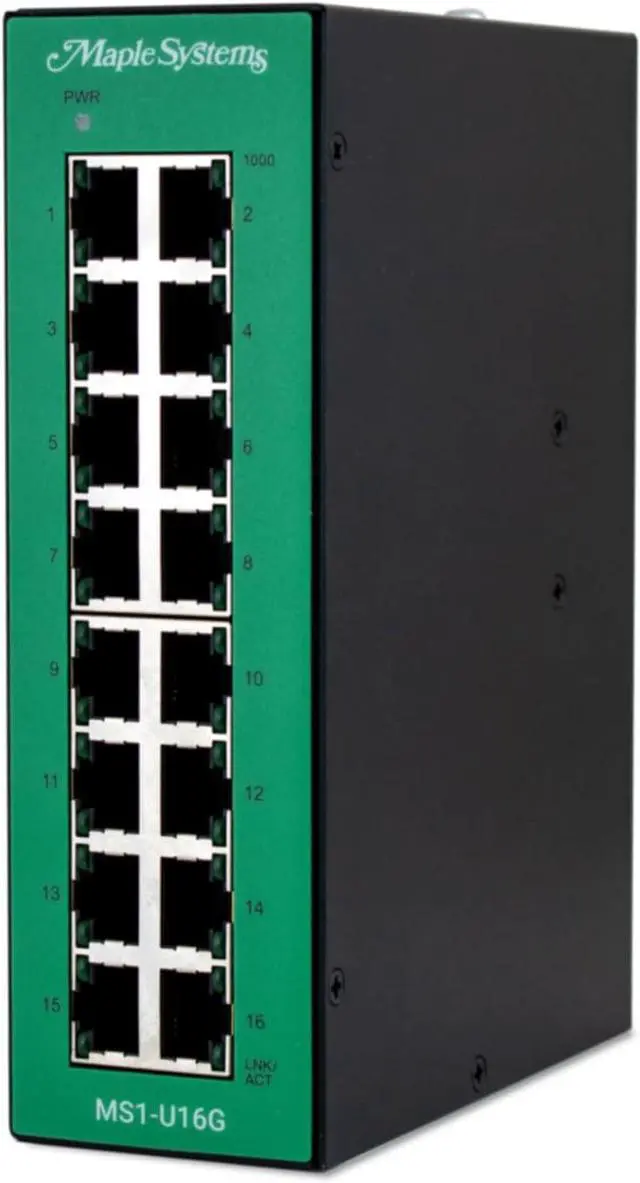

- NETWORK PORTS: Features 16 RJ45 Gigabit Ethernet ports (10/100/1000BASE-T) with auto-negotiation and up to 328 feet connection distance.
- PERFORMANCE SPECS: Delivers 32 Gbps switch fabric with 23.8Mpps forwarding rate and supports jumbo frames up to 10k bytes.
- TRAFFIC MANAGEMENT: Includes flow control, storm control, and VLAN passthru supporting up to 4094 VLAN IDs with PROFINET protocol priority.

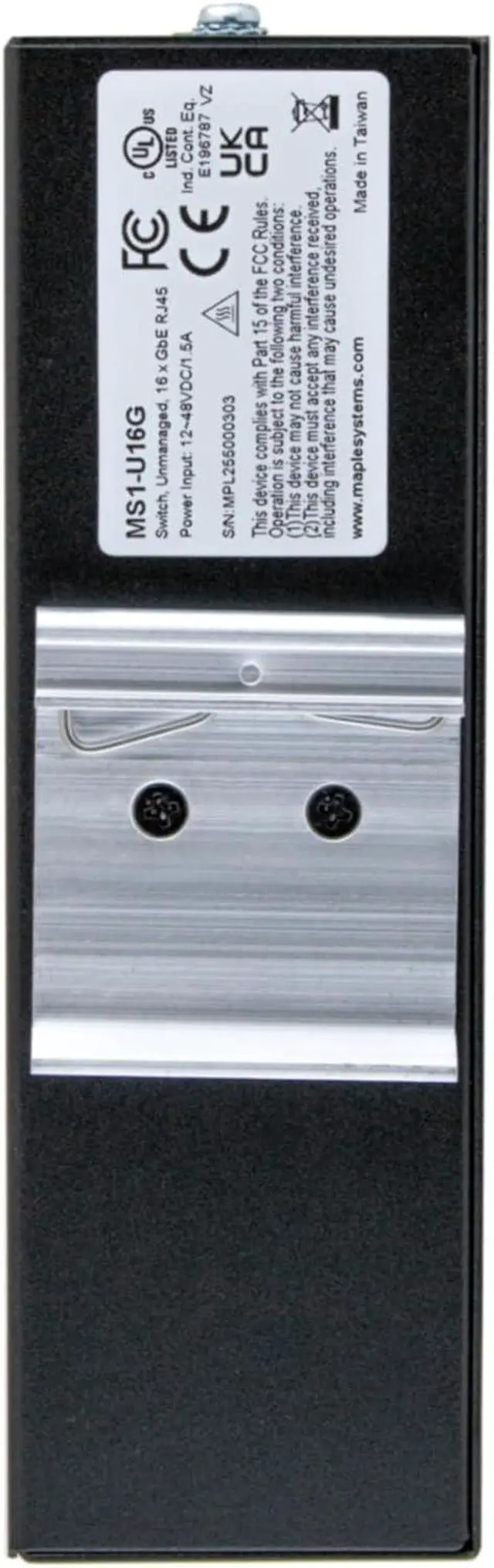

- INDUSTRIAL DESIGN: Metal housing with DIN rail mount, compact size of 1.97 x 6.43 x 4.72 inches, operating temperature range from -40°F to 167°F.

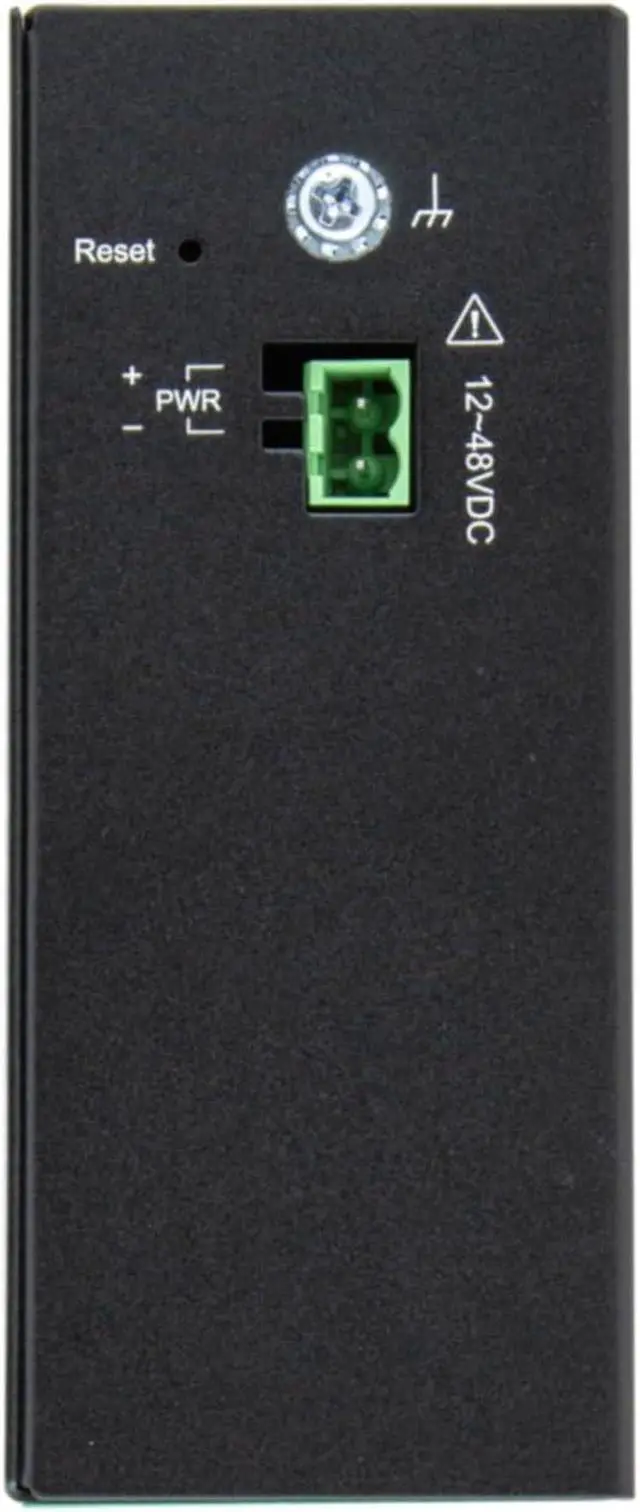

- RELIABILITY FEATURES: Dual power input (12-48 VDC) with redundancy, reverse polarity protection, and comprehensive industrial certifications including IP30 rating.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NETWORK PORTS: Features 16 RJ45 Gigabit Ethernet ports (10/100/1000BASE-T) with auto-negotiation and up to 328 feet connection distance.
PERFORMANCE SPECS: Delivers 32 Gbps switch fabric with 23.8Mpps forwarding rate and supports jumbo frames up to 10k bytes.
TRAFFIC MANAGEMENT: Includes flow control, storm control, and VLAN passthru supporting up to 4094 VLAN IDs with PROFINET protocol priority.
INDUSTRIAL DESIGN: Metal housing with DIN rail mount, compact size of 1.97 x 6.43 x 4.72 inches, operating temperature range from -40°F to 167°F.
RELIABILITY FEATURES: Dual power input (12-48 VDC) with redundancy, reverse polarity protection, and comprehensive industrial certifications including IP30 rating.
PERFORMANCE SPECS: Delivers 32 Gbps switch fabric with 23.8Mpps forwarding rate and supports jumbo frames up to 10k bytes.
TRAFFIC MANAGEMENT: Includes flow control, storm control, and VLAN passthru supporting up to 4094 VLAN IDs with PROFINET protocol priority.
INDUSTRIAL DESIGN: Metal housing with DIN rail mount, compact size of 1.97 x 6.43 x 4.72 inches, operating temperature range from -40°F to 167°F.
RELIABILITY FEATURES: Dual power input (12-48 VDC) with redundancy, reverse polarity protection, and comprehensive industrial certifications including IP30 rating.
