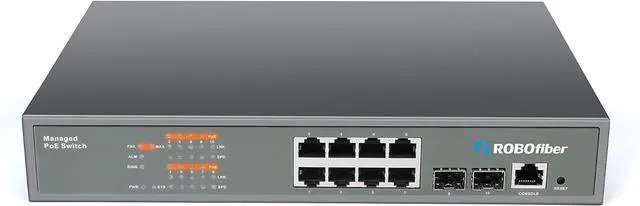

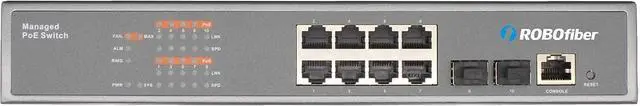

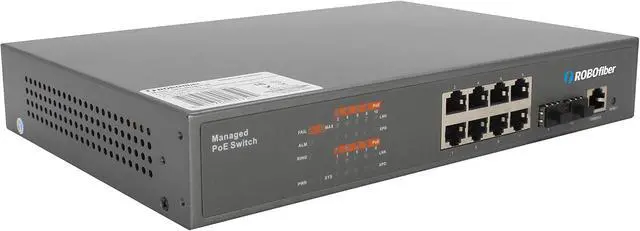

8-port 10/100/1000Base-T RJ45 + 2 uplink 100/1000Base-X SFP slots, 1RU 19" rack mountable with brackets, 120W of total PoE budget, 802.3at/af compatible (supporting PoE+ on each TP port)
Back-plane (Switching Fabric): 20 Gbps, Supports 9K Bytes jumbo frame, Packet buffer: 4M bits, 8K MAC table size, web/console/SNMP managed design
STP, RSTP, MSTP for redundant cabling; DHCP Server/Client/Relay/Snooping; QoS, CoS, bandwidth control for Ingress and Egress, Storm Control; Dynamic IEEE 802.3ad LACP Link Aggregation; Supports 6kV surge protection on all TP ports; Supports IEEE 802.1Q Tag VLAN and port VLAN
IGMP snooping V1/V2/V3, IGM P Filtering/ Throttling/ IGMP query; Port based and MAC based IEEE802.1X, RADIUS, ACL; Software upgrade via TFTP and HTTP; Port mirroring, System log, DNS, SNTP, LLDP; Web based management, SNMP v1/v2, Telnet

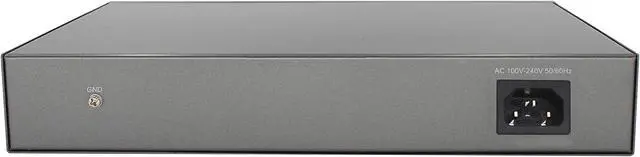

Power input: 100 ~ 240VAC, Operating Temperature: 0 ~ 50°C, Humidity: 5% ~ 90% (non-condensing), Dimensions: 350 x 295 x 43.8 mm, Certification: FCC, CE, RoHS compliant
